NSN 5985-00-655-1204 MA7511S003, L0U253, L0U-253
Product Details | WAVEGUIDE SWITCH
5985-00-655-1204 An item specifically designed for mechanically or electronically positioning one or more waveguide sections so as to couple it or them to other sections in a waveguide system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Part Alternates: MA7511S003, L0U253, L0U-253, LM62AUFXX51, 7724161, 772416-1, 32C01300, 5985-00-655-1204, 00-655-1204, 5985006551204, 006551204
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 OCT 1972 | 00-655-1204 | 05118 ( SWITCH, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-00-655-1204
Cross Reference | NSN 5985-00-655-1204
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 32C01300 | 50140 | K&L MICROWAVE, INC. |
| 32C01300 | 82152 | L-3 COMMUNICATIONS CORPORATION DBA DATRON ADVANCED TECHNOLOGIES |
| 772416-1 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| L0U-253 | 09080 | LOGUS MANUFACTURING CORP. DBA LOGUS MICROWAVE |
| LM62AUFXX51 | 09080 | LOGUS MANUFACTURING CORP. DBA LOGUS MICROWAVE |
| MA7511S003 | 96341 | COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-655-1204
Related Products | NSN 5985-00-655-1204
Technical Data | NSN 5985-00-655-1204
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 16.20 GIGAHERTZ MINIMUM AND 16.83 GIGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING 16.20 GIGAHERTZ MINIMUM AND 16.83 GIGAHERTZ MAXIMUM SINGLE FREQUENCY RF POWER HANDLING 16.20 GIGAHERTZ MINIMUM AND 16.83 GIGAHERTZ MAXIMUM SINGLE FREQUENCY VOLTAGE STANDING WAVE RATIO 16.20 GIGAHERTZ MINIMUM AND 16.83 GIGAHERTZ MAXIMUM SINGLE FREQUENCY INSERTION LOSS REFERENCE 16.20 GIGAHERTZ MINIMUM AND 16.83 GIGAHERTZ MAXIMUM SINGLE FREQUENCY CROSSTALK REFERENCE |
| RF POWER HANDLING CAPABILITY | 85.0 KILOWATTS PEAK SINGLE |
| VOLTAGE STANDING WAVE RATIO | 1.20 SINGLE |
| INSERTION LOSS IN DECIBELS | 0.25 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 45.0 SINGLE |
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 1.4 DC MAXIMUM |
| ACTUATOR VOLTAGE IN VOLTS | 17.0 MINIMUM AND 22.5 MAXIMUM |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 4 SCREW AND 3 CIRCULAR FLANGE |
| SWITCHING TIME | 0.025 SECONDS |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |
| WAVEGUIDE FLANGE TYPE | CHOKE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 UNTHREADED HOLE |

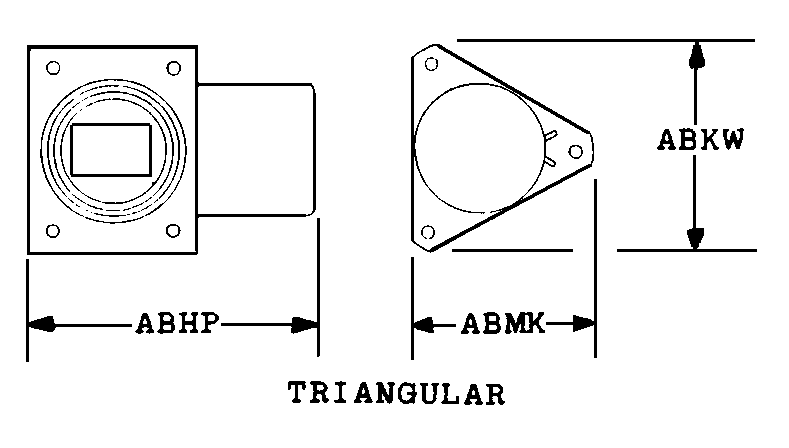

| BODY STYLE | 4C TRIANGULAR |
| OVERALL LENGTH | 3.200 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.856 INCHES NOMINAL |
| OVERALL WIDTH | 1.856 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY BODY |
| SURFACE TREATMENT | ENAMEL BODY OUTSIDE SURFACES |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 THREADED HOLE |
| MOUNTING FACILITY PATTERN | ISOSCELES TRIANGLE SINGLE MOUNTING FACILITY PATTERN |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 1.641 INCHES MINIMUM AND 1.651 INCHES MAXIMUM SINGLE MOUNTING FACILITY PATTERN |
| SHORTEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 0.818 INCHES MINIMUM AND 0.828 INCHES MAXIMUM SINGLE MOUNTING FACILITY PATTERN |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 1.420 INCHES MINIMUM AND 1.430 INCHES MAXIMUM SINGLE MOUNTING FACILITY PATTERN |
| THREAD SERIES DESIGNATOR | UNC MOUNTING FACILITY HOLE |
| NOMINAL THREAD SIZE | 0.164 INCHES MOUNTING FACILITY HOLE |
| FEATURES PROVIDED | GROUNDED OFF CIRCUIT TERMINATION |
| SPECIAL FEATURES | CRITICAL APPLICATION FOR WEAPONS SYSTEM |
Restrictions/Controls & Freight Information | NSN 5985-00-655-1204
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-00-655-1204
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
