NSN 5985-00-646-4876 FTC1591012, FTC159-1012, G36X6306
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-646-4876 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: FTC1591012, FTC159-1012, G36X6306, RE120AARA25, CR66, 100980, 30011551, 300-11551, 5010010, 501-0010, 5054361003, 505-4361-003, 5985-00-646-4876, 00-646-4876, 5985006464876, 006464876
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-646-4876 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-00-646-4876
Demand History | NSN 5985-00-646-4876
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 300-11551 | 2021-05-06 | 19 | DIBBS |
| CR66 | 2021-05-06 | 19 | DIBBS |
| FTC159-1012 | 2021-05-06 | 19 | DIBBS |
| G36X6306 | 2021-05-06 | 19 | DIBBS |
| 300-11551 | 2021-04-25 | 19 | DIBBS |
| CR66 | 2021-04-25 | 19 | DIBBS |
| FTC159-1012 | 2021-04-25 | 19 | DIBBS |
| G36X6306 | 2021-04-25 | 19 | DIBBS |
| 300-11551 | 2019-05-02 | 14 | DIBBS |
| CR66 | 2019-05-02 | 14 | DIBBS |
| FTC159-1012 | 2019-05-02 | 14 | DIBBS |
| G36X6306 | 2019-05-02 | 14 | DIBBS |
| 5985-00-646-4876 | 2017-02-02 | 11 | DIBBS |
| 5985-00-646-4876 | 2015-09-02 | 10 | DIBBS |
| 5985-00-646-4876 | 2008-08-03 | 4 | US |
| 30011551 | 2008-08-01 | 4 | US |
| 5985-00-646-4876 | 2008-03-03 | 30 | DIBBS |
| 5985-00-646-4876 | 2007-10-16 | 20 | DIBBS |
| 5985-00-646-4876 | 2007-10-02 | 27 | DIBBS |
Cross Reference | NSN 5985-00-646-4876
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100980 | 67116 | COMPUTRONICS INC |
| 300-11551 | 61433 | ADVANCED TECHNICAL CORPORATION |
| 300-11551 | 62165 | ARROWSMITH SHELBURNE INC |
| 300-11551 | 74868 | AMPHENOL CORPORATION |
| 501-0010 | 17488 | PERSPECTRON INC |
| 505-4361-003 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| CR66 | 74868 | AMPHENOL CORPORATION |
| FTC159-1012 | 95937 | VIKING TECHNOLOGIES, LTD. DBA USE CAGE CODE 71313 FOR |
| G36X6306 | 94033 | CARDWELL CONDENSER CORP LAPOINTE-ADMIRAL DIV |
| RE120AARA25 | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| RE120AARA25 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-646-4876
Related Products | NSN 5985-00-646-4876
Technical Data | NSN 5985-00-646-4876
| Characteristic | Specifications |
|---|---|
| ACTUATOR VOLTAGE IN VOLTS | 27.5 NOMINAL |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 4 |
| TERMINAL TYPE AND QUANTITY | 3 RECEPTACLE, COAXIAL AND 1 CONNECTOR, RECEPTACLE |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| CONNECTOR END DESIGN | FEMALE |

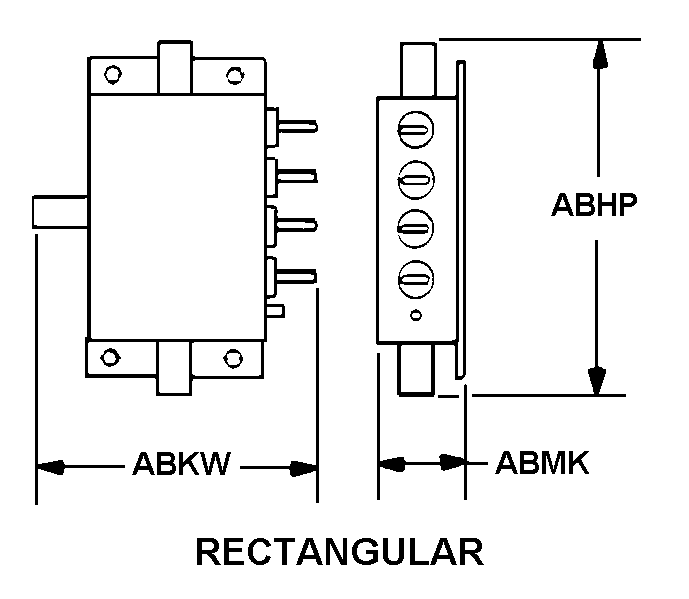

| BODY STYLE | 58B RECTANGULAR |
| OVERALL LENGTH | 4.375 INCHES NOMINAL |
| OVERALL HEIGHT | 3.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.625 INCHES NOMINAL |
| III OPERATING TEMP RANGE | -55.0 TO 85.0 DEG CELSIUS |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | RE120AARA25 |
