NSN 5985-00-603-4598 SDS24, 1M1G1, 00-603-4598
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-603-4598 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: SDS24, 1M1G1, 5985-00-603-4598, 00-603-4598, 5985006034598, 006034598
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-603-4598 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

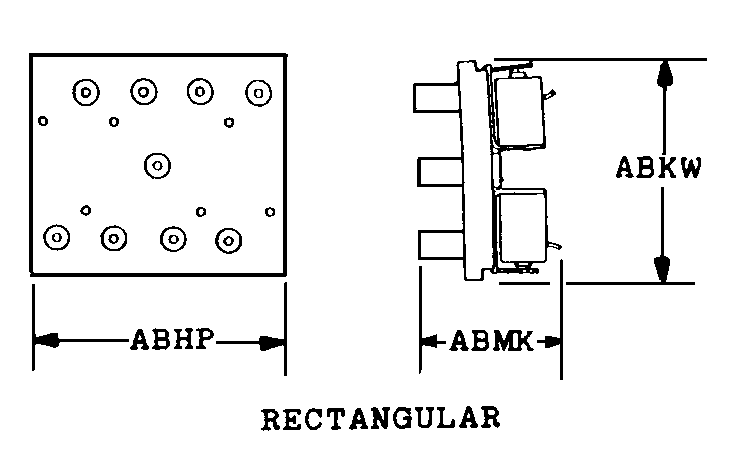

Drawings & Photos | NSN 5985-00-603-4598
