NSN 5985-00-602-2089 MA4503 , MA4503456, MA4503-4-5-6
Product Details | VARIABLE ATTENUATOR
5985-00-602-2089 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: MA4503 , MA4503456, MA4503-4-5-6 , RP2440V60HZ, RP-2-440V60HZ , X382A, 354Y , 62460, 7907413, 7909033, 91473150, 9781870, 5985-00-602-2089, 00-602-2089, 5985006022089, 006022089
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-602-2089 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5985-00-602-2089
Demand History | NSN 5985-00-602-2089
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-00-602-2089 | 2015-03-70 | 7 | NECO |
| 5985-00-602-2089 | 2011-09-244 | 1 | US |
| 5985-00-602-2089 | 2010-01-08 | 1 | US |
| 5985-00-602-2089 | 2009-12-345 | 1 | US |
Cross Reference | NSN 5985-00-602-2089
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7907413 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 7907413 | 19200 | US ARMY ARDEC RDECOM |
| 7909033 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 91473150 | F6481 | THALES SA |
| X382A | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| X382A | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-602-2089
Related Products | NSN 5985-00-602-2089
Technical Data | NSN 5985-00-602-2089
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | WAVEGUIDE |
| FREQUENCY RANGE | 8.200 GIGAHERTZ MINIMUM AND 12.400 GIGAHERTZ MAXIMUM |
| POWER RATING | 10.0 WATTS AVERAGE |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 1.0 |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 50.0 |
| OVERALL ATTENUATION ACCURACY IN DECIBELS | -0.10 TO 0.10 |

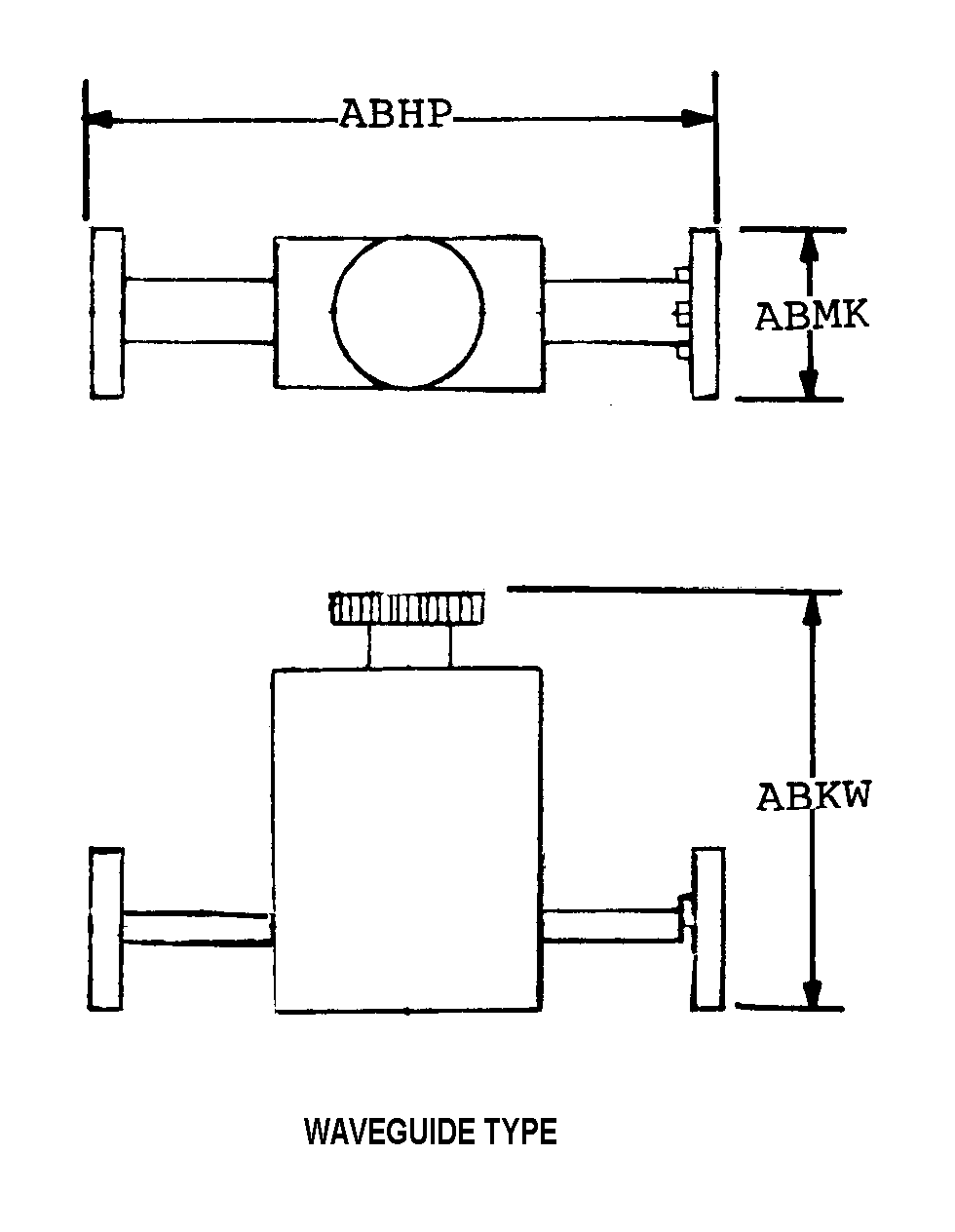

| BODY STYLE | 1A WAVEGUIDE TYPE |
| OVERALL LENGTH | 15.625 INCHES NOMINAL |
| OVERALL HEIGHT | 7.625 INCHES NOMINAL |
| OVERALL WIDTH | 4.687 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 KNOB |
| SPECIAL FEATURES | WAVEGUIDE SIZE1 X 1/2 INCHES |
| III UNPACKAGED UNIT WEIGHT | 5.000 POUNDS |
| III REFERENCE DATA AND LITERATURE | HEWLETT-PACKARD 1963 CATALOG |
| III END ITEM IDENTIFICATION | AN/TSQ-96 |
