Product Details | WAVEGUIDE ASSEMBLY
5985-00-580-3656 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: 30672463, 3067246-3, 5985-00-580-3656, 00-580-3656, 5985005803656, 005803656
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 DEC 1974 | 00-580-3656 | 00305 ( WAVEGUIDE ASSEMBLY ) |
Drawings & Photos | NSN 5985-00-580-3656
Cross Reference | NSN 5985-00-580-3656
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3067246-3 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-580-3656
Related Products | NSN 5985-00-580-3656
Technical Data | NSN 5985-00-580-3656
| Characteristic | Specifications |
|---|---|

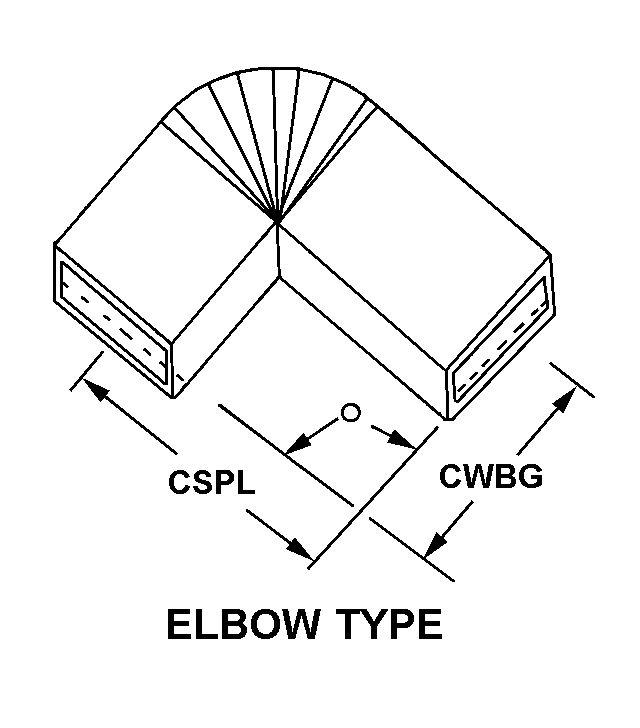

| STYLE DESIGNATOR | B7 ELBOW TYPE |
| WAVEGUIDE LONGER OFFSET DISTANCE | 1.500 FEET NOMINAL |
| WAVEGUIDE OFFSET DISTANCE | 1.312 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 0.996 INCHES MINIMUM AND 1.004 INCHES MAXIMUM |
| WAVEGUIDE INSIDE WIDTH | 0.896 INCHES MINIMUM AND 0.904 INCHES MAXIMUM |
| WAVEGUIDE INSIDE HEIGHT | 0.396 INCHES MINIMUM AND 0.404 INCHES MAXIMUM |
| WAVEGUIDE OUTSIDE HEIGHT | 0.496 INCHES MINIMUM AND 0.504 INCHES MAXIMUM |
| FLEXIBILITY | RIGID SINGLE TUBING SEGMENT |
| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS SINGLE TUBING SEGMENT |
| BEND ANGLE IN DEG | 90.0 SINGLE BEND E-PLANE |
| MATERIAL | ALUMINUM SINGLE TUBING SEGMENT |
| SURFACE TREATMENT | ANY ACCEPTABLE ALL FLANGE INSIDE SURFACES ANY ACCEPTABLE ALL FLANGE OUTSIDE SURFACES |
| FLANGE QUANTITY | 2 |
| FLANGE STYLE | C28 COVER TYPE ALL FLANGES |
| FLANGE INSIDE WIDTH | 1.063 INCHES NOMINAL ALL FLANGES |
| FLANGE INSIDE HEIGHT | 0.505 INCHES NOMINAL ALL FLANGES |
| FLANGE OUTSIDE WIDTH | 1.625 INCHES NOMINAL ALL FLANGES |
| FLANGE OUTSIDE HEIGHT | 1.625 INCHES NOMINAL ALL FLANGES |
| FLANGE DEPTH | 0.437 INCHES NOMINAL ALL FLANGES |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 UNTHREADED HOLE ALL FLANGES SINGLE CONNECTION FACILITY |
| FLANGE CONNECTING HOLE DIAMETER | 0.169 INCHES NOMINAL SINGLE FLANGE SINGLE CONNECTION FACILITY |
| (NON-CORE DATA) TUBING MANUFACTURER PART NUMBER | AM85/1-078 SINGLE TUBING SEGMENT |
| (NON-CORE DATA) FLANGE MANUFACTURER PART NUMBER | M3922/53-3 ALL FLANGES |
| MANUFACTURERS CODE | 82577 |
| DESIGN CONTROL REFERENCE | 3067246-3 |
