NSN 5985-00-508-1288 SA15859, 00-508-1288, 005081288
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-00-508-1288 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: SA15859, 5985-00-508-1288, 00-508-1288, 5985005081288, 005081288
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-508-1288 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-00-508-1288
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-508-1288
Technical Data | NSN 5985-00-508-1288
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 0.960 GIGAHERTZ MINIMUM AND 1.215 GIGAHERTZ MAXIMUM SINGLE FREQUENCY RF POWER HANDLING 0.960 GIGAHERTZ MINIMUM AND 1.215 GIGAHERTZ MAXIMUM SINGLE FREQUENCY VOLTAGE STANDING WAVE RATIO |
| RF MAXIMUM VOLTAGE RATING | 12.0 KILOVOLTS PEAK |
| SWITCH TYPE | TRANSFER |
| COUPLING POSITION QUANTITY | 2 |
| CONNECTOR END DESIGN | FEMALE |
| SWITCH OPERATION SEQUENCE | BREAKS BEFORE MAKES |

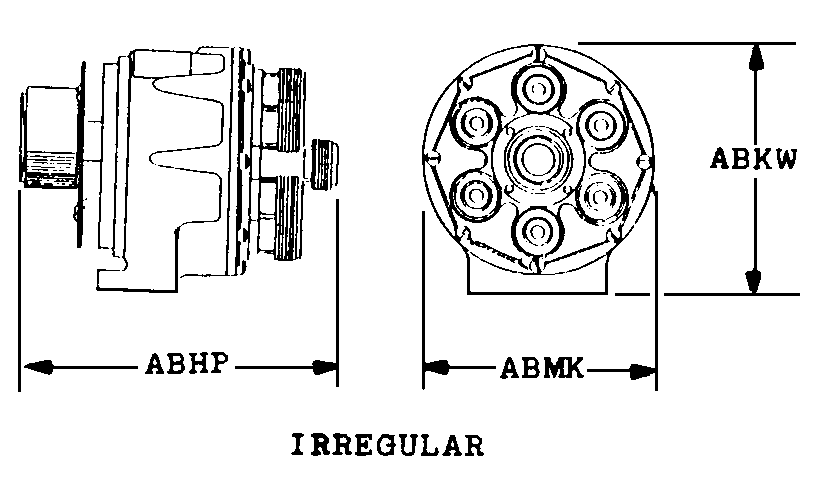

| BODY STYLE | 36B IRREGULAR |
| OVERALL LENGTH | 6.875 INCHES NOMINAL |
| OVERALL HEIGHT | 5.750 INCHES NOMINAL |
| OVERALL DIAMETER | 5.250 INCHES NOMINAL |
| MANUFACTURERS CODE | 0NKU0 |
| DESIGN CONTROL REFERENCE | SA15859 |
