Product Details | FIXED ATTENUATOR
5985-00-491-6446 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Part Alternates: 10674774, 447326, 5985-00-491-6446, 00-491-6446, 5985004916446, 004916446
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 SEP 1970 | 00-491-6446 | 14224 ( ATTENUATOR, FIXED ) |
Drawings & Photos | NSN 5985-00-491-6446
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-491-6446
Technical Data | NSN 5985-00-491-6446
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | WAVEGUIDE |
| FREQUENCY RANGE | NOT RATED |
| VOLTAGE STANDING WAVE RATIO | 1.00 AND 1.10 |
| VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | ANY ACCEPTABLE |
| RF SIGNAL ATTENUATION IN DECIBELS | 12.0 |
| ATTENUATION ACCURACY IN DECIBELS | -0.50 TO 0.50 |
| OPERATING TEMP RANGE | ANY ACCEPTABLE |

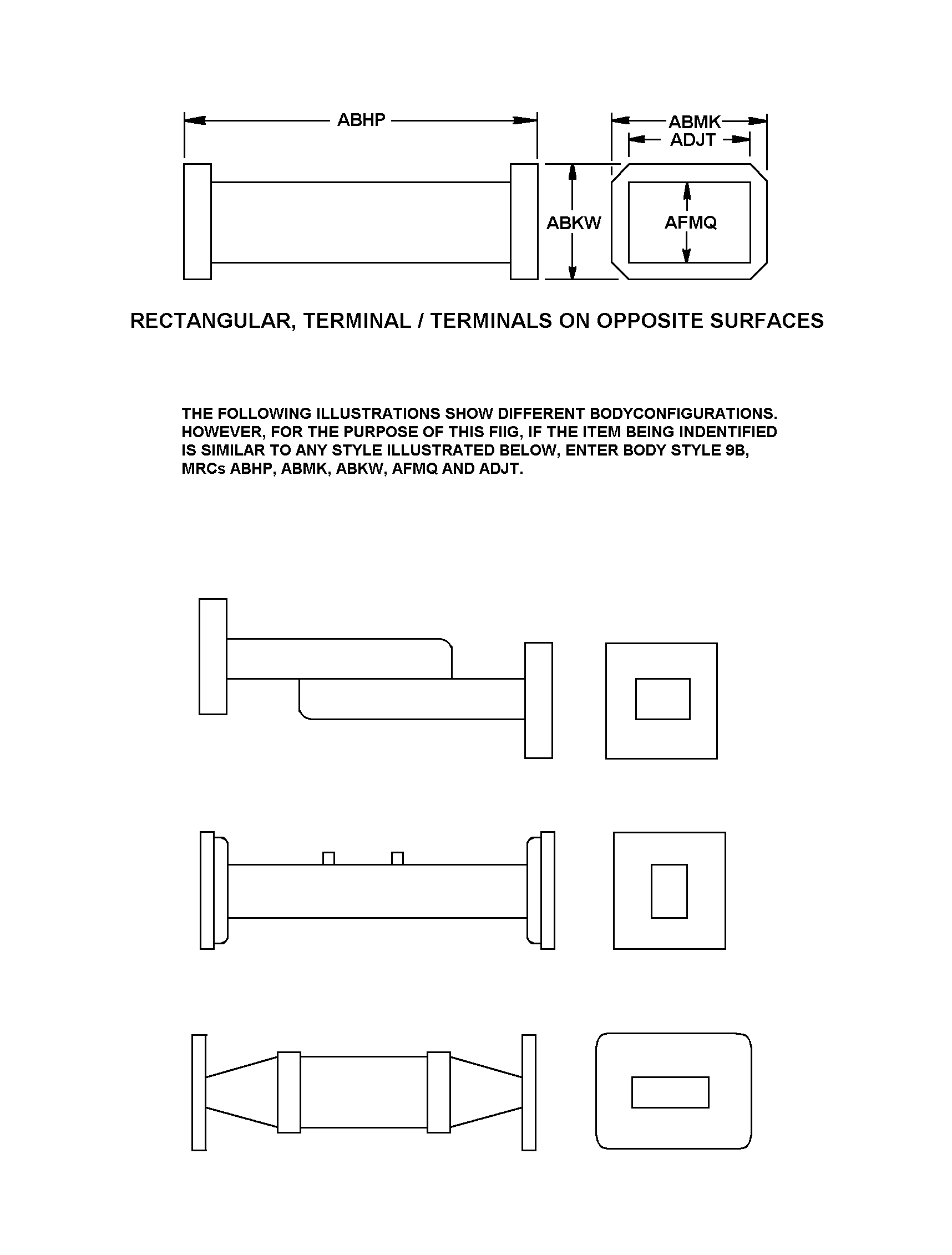

| BODY STYLE | 9B RECTANGULAR, TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL LENGTH | 2.500 INCHES NOMINAL |
| OVERALL HEIGHT | 1.620 INCHES NOMINAL |
| OVERALL WIDTH | 1.620 INCHES NOMINAL |
| INSIDE WIDTH | 1.003 INCHES NOMINAL |
| INSIDE HEIGHT | 0.505 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 2 FLANGE |
| WAVEGUIDE FLANGE DESIGNATION | UG-39/U |
| WAVEGUIDE FLANGE TYPE | COVER |
| WAVEGUIDE DESIGNATION | RG-52/U |
| MOUNTING METHOD | TERMINAL W/MOUNTING HOLES |
| MOUNTING HOLE/STUD QUANTITY | 4 |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.177 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.220 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.280 INCHES NOMINAL |
