NSN 5985-00-299-1355 583Z43375, 583Z4337-5, 00-299-1355
Product Details | WAVEGUIDE ASSEMBLY
5985-00-299-1355 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: 583Z43375, 583Z4337-5, 5985-00-299-1355, 00-299-1355, 5985002991355, 002991355
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 OCT 1973 | 00-299-1355 | 00305 ( WAVEGUIDE ASSEMBLY ) |
Drawings & Photos | NSN 5985-00-299-1355
Cross Reference | NSN 5985-00-299-1355
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 583Z4337-5 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-299-1355
Related Products | NSN 5985-00-299-1355
Technical Data | NSN 5985-00-299-1355
| Characteristic | Specifications |
|---|---|

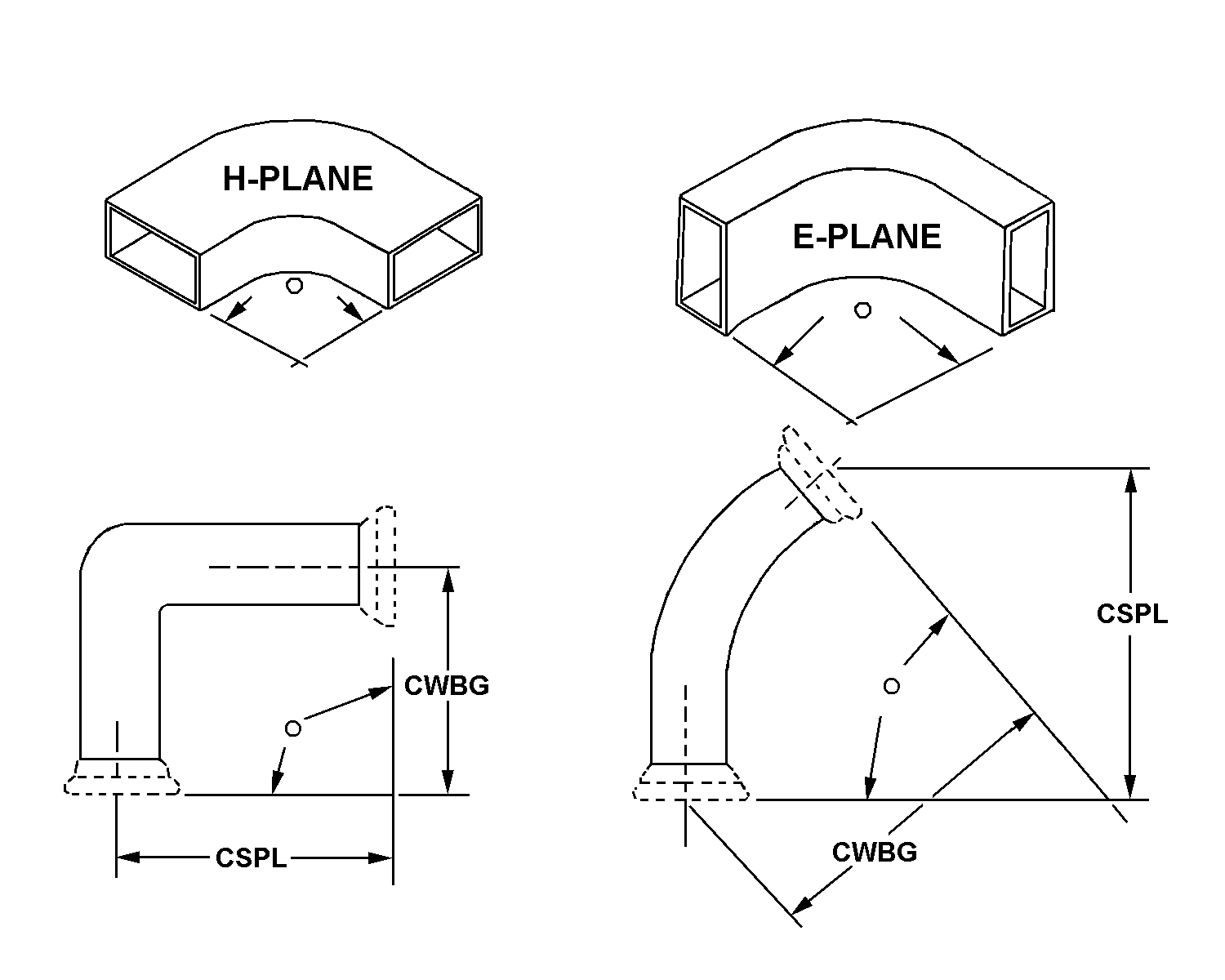

| STYLE DESIGNATOR | B2 BEND TYPE |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 1.995 INCHES MINIMUM AND 2.005 INCHES MAXIMUM |
| WAVEGUIDE INSIDE WIDTH | 1.867 INCHES MINIMUM AND 1.877 INCHES MAXIMUM |
| WAVEGUIDE INSIDE HEIGHT | 0.867 INCHES MINIMUM AND 0.877 INCHES MAXIMUM |
| WAVEGUIDE OUTSIDE HEIGHT | 0.995 INCHES MINIMUM AND 1.005 INCHES MAXIMUM |
| FLEXIBILITY | RIGID ALL TUBING SEGMENT |
| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS ALL TUBING SEGMENT |
| MATERIAL | ALUMINUM ALLOY ALL TUBING SEGMENT AND FLANGE |
| SURFACE TREATMENT | ENAMEL ALL TUBING SEGMENT AND FLANGE OUTSIDE SURFACES |
| FLANGE QUANTITY | 2 |

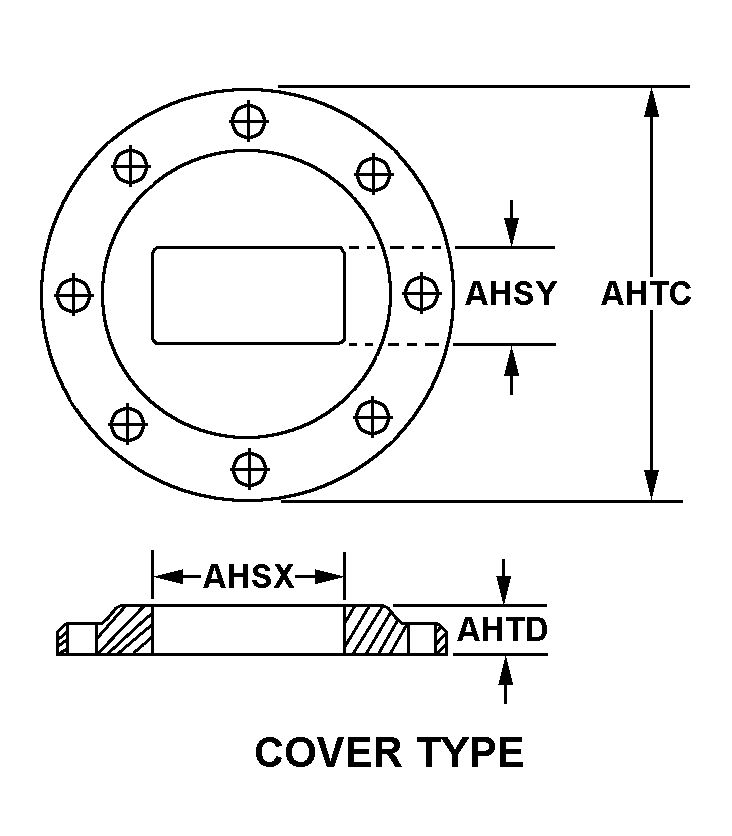

| FLANGE STYLE | C25 COVER TYPE ALL FLANGES |
| FLANGE INSIDE WIDTH | 2.002 INCHES MINIMUM AND 2.005 INCHES MAXIMUM ALL FLANGES |
| FLANGE INSIDE HEIGHT | 1.002 INCHES MINIMUM AND 1.005 INCHES MAXIMUM ALL FLANGES |
| FLANGE OUTSIDE DIAMETER | 3.610 INCHES MINIMUM AND 3.640 INCHES MAXIMUM ALL FLANGES |
| FLANGE DEPTH | 0.360 INCHES MINIMUM AND 0.390 INCHES MAXIMUM ALL FLANGES |
| FLANGE CONNECTING FACILITY AND QUANTITY | 8 UNTHREADED HOLE ALL FLANGES ALL CONNECTION FACILITIES |
| FLANGE CONNECTING HOLE DIAMETER | 0.199 INCHES MINIMUM AND 0.203 INCHES MAXIMUM ALL FLANGES ALL CONNECTION FACILITIES |
| MAXIMUM OPERATING PRESSURE | 15.0 POUNDS PER SQUARE INCH GAGE |
| (NON-CORE DATA) TUBING MANUFACTURER PART NUMBER | M85/1-055 ALL TUBING SEGMENT |
| (NON-CORE DATA) FLANGE MANUFACTURER PART NUMBER | M3922/57-2 ALL FLANGES |
| III FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
