NSN 5985-00-299-0063 337D780G01, 00-299-0063, 002990063
Product Details | WAVEGUIDE ASSEMBLY
5985-00-299-0063 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: 337D780G01, 5985-00-299-0063, 00-299-0063, 5985002990063, 002990063
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 JAN 1972 | 00-299-0063 | 00305 ( WAVEGUIDE ASSEMBLY ) |
Drawings & Photos | NSN 5985-00-299-0063
Demand History | NSN 5985-00-299-0063
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-00-299-0063 | 2021-12-335 | 10 | US |
| 5985-00-299-0063 | 2015-09-260 | 8 | DIBBS |
| 5985-00-299-0063 | 2011-05-123 | 2 | DIBBS |
| 5985-00-299-0063 | 2010-08-242 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-299-0063
Related Products | NSN 5985-00-299-0063
Technical Data | NSN 5985-00-299-0063
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B1 STRAIGHT TYPE |
| WAVEGUIDE LENGTH | 7.980 INCHES MINIMUM AND 8.020 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 2.994 INCHES MINIMUM AND 3.006 INCHES MAXIMUM |
| WAVEGUIDE INSIDE WIDTH | 2.834 INCHES MINIMUM AND 2.846 INCHES MAXIMUM |
| WAVEGUIDE INSIDE HEIGHT | 1.334 INCHES MINIMUM AND 1.346 INCHES MAXIMUM |
| WAVEGUIDE OUTSIDE HEIGHT | 1.494 INCHES MINIMUM AND 1.506 INCHES MAXIMUM |
| FLEXIBILITY | RIGID SINGLE TUBING SEGMENT |
| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS SINGLE TUBING SEGMENT |
| MATERIAL | ALUMINUM ALLOY ALL TUBING SEGMENT AND FLANGE |
| SURFACE TREATMENT | CHROMATE ZINC ALL TUBING SEGMENT AND FLANGE ALL SURFACES |
| FLANGE QUANTITY | 2 |

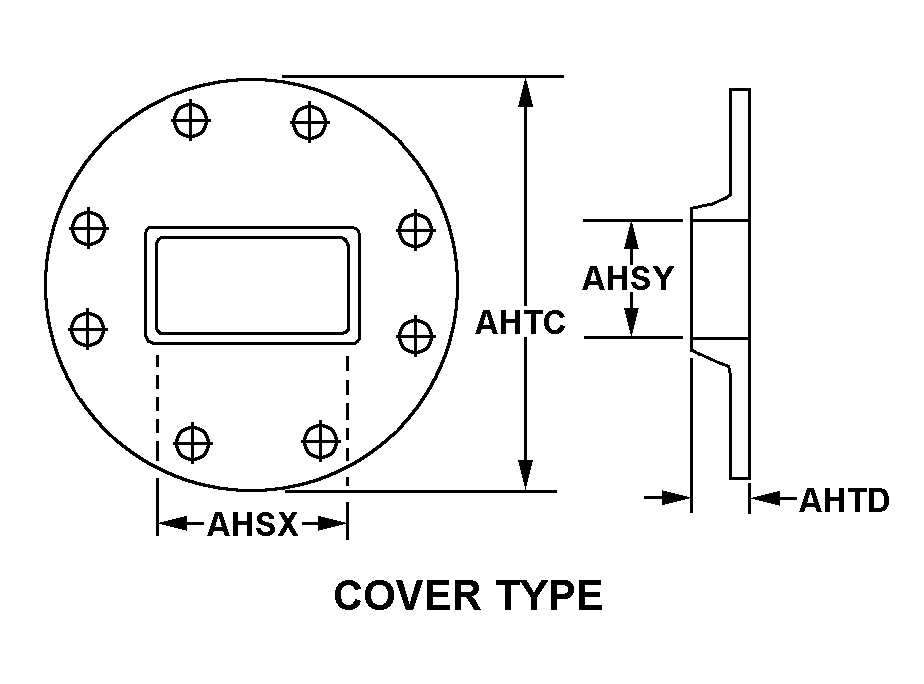

| FLANGE STYLE | C26 COVER TYPE FIRST FLANGE |
| FLANGE INSIDE WIDTH | 3.002 INCHES MINIMUM AND 3.005 INCHES MAXIMUM FIRST FLANGE |
| FLANGE INSIDE HEIGHT | 1.502 INCHES MINIMUM AND 1.505 INCHES MAXIMUM FIRST FLANGE |
| FLANGE OUTSIDE DIAMETER | 5.298 INCHES MINIMUM AND 5.328 INCHES MAXIMUM FIRST FLANGE |
| FLANGE DEPTH | 0.735 INCHES MINIMUM AND 0.765 INCHES MAXIMUM FIRST FLANGE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 8 UNTHREADED HOLE FIRST FLANGE ALL CONNECTION FACILITIES |
| FLANGE CONNECTING HOLE DIAMETER | 0.257 INCHES MINIMUM AND 0.260 INCHES MAXIMUM FIRST FLANGE ALL CONNECTION FACILITIES |
| SPECIAL FEATURES | FLANGE FACES AND INTERNAL WAVEGUIDE SURFACES MASKED FROM PAINT |
| (NON-CORE DATA) FRAGILITY FACTOR | MODERATELY RUGGED |
| III END ITEM IDENTIFICATION | AN/TPS-43 RADAR SET |
| III FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 5985-00-299-0063
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-00-299-0063
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
