Product Details | VARIABLE ATTENUATOR
5985-00-239-6126 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: CN-1292/U, CN1292U, TC50A, TC-50A, 192405, 192-405, 203192405000, 203-192405-000, 5985-00-239-6126, 00-239-6126, 5985002396126, 002396126
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 NOV 1969 | 00-239-6126 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5985-00-239-6126
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-239-6126
Related Products | NSN 5985-00-239-6126
Technical Data | NSN 5985-00-239-6126
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | AUDIO |
| SCHEMATIC DIAGRAM DESIGNATOR | 7D UNBALANCED PI |
| FREQUENCY RANGE | 0.000 MEGAHERTZ MINIMUM AND 900.000 MEGAHERTZ MAXIMUM |
| IMPEDANCE RATING IN OHMS | 50.0 INPUT-OUTPUT |
| VOLTAGE STANDING WAVE RATIO | 1.30 |
| POWER RATING | 2.0 WATTS AVERAGE |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 0.2 |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 1.0 |
| OVERALL ATTENUATION ACCURACY IN DECIBELS | -0.01 TO 0.01 |
| ATTENUATION VARIATION METHOD | STEPPED |
| STEP POSITION QUANTITY | 11 |
| ATTENUATION PER STEP IN DECIBELS | 0.1 |

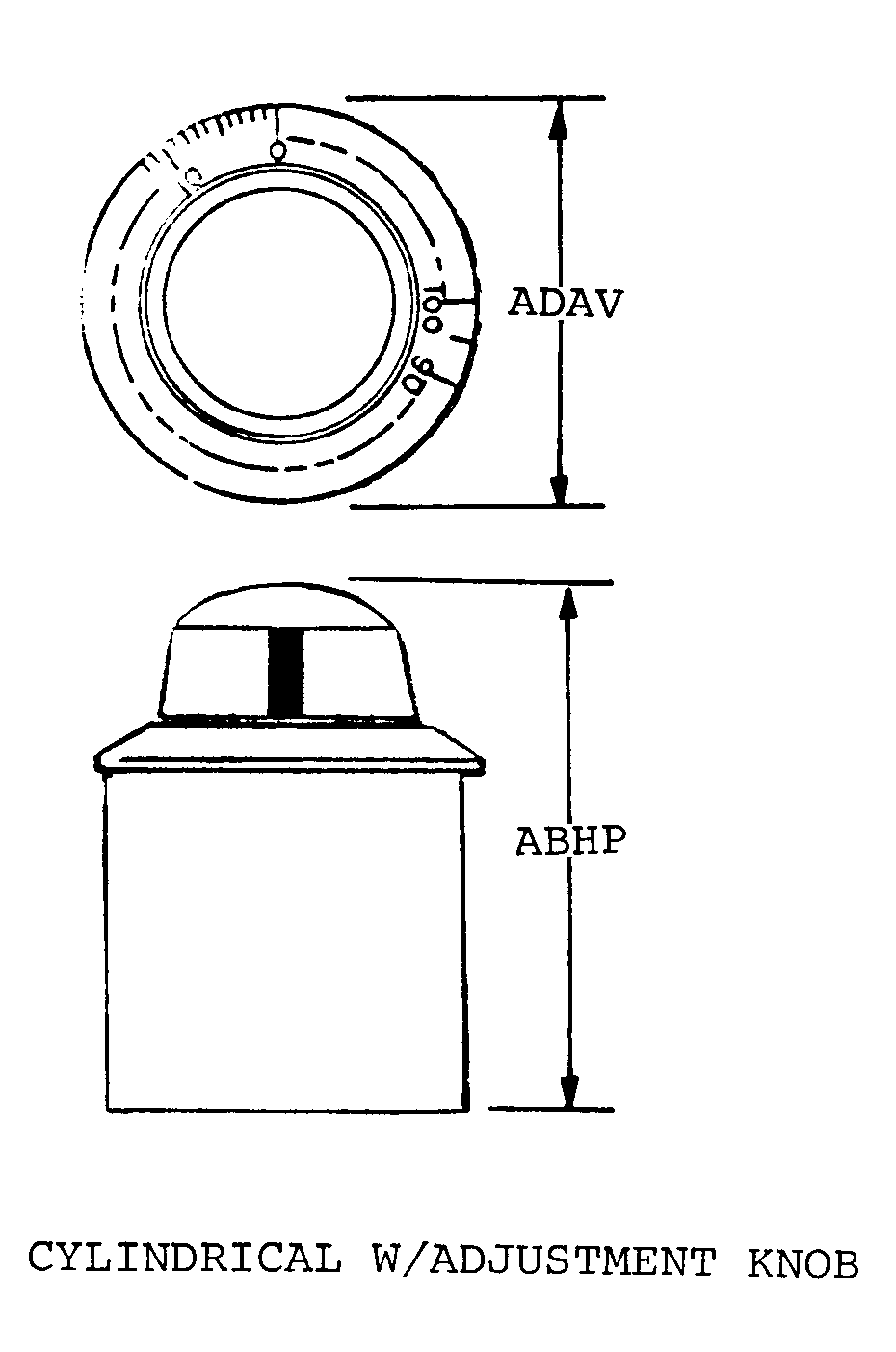

| BODY STYLE | 31A CYLINDRICAL W/ADJUSTMENT KNOB |
| OVERALL LENGTH | 2.500 INCHES NOMINAL |
| OVERALL DIAMETER | 3.000 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 KNOB |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, COAXIAL, MALE |
| COAXIAL CONNECTOR SERIES DESIGNATION | BNC |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 CONNECTOR |
| III SCALE LINEARITY | LINEAR |
| III SCALE DIVISION QUANTITY | 11 |
