Product Details | FIXED ATTENUATOR
5985-00-118-2869 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Part Alternates: E2297601, E229760-1, 8710M, 5985-00-118-2869, 00-118-2869, 5985001182869, 001182869
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 OCT 1968 | 00-118-2869 | 14224 ( ATTENUATOR, FIXED ) |
Drawings & Photos | NSN 5985-00-118-2869
Demand History | NSN 5985-00-118-2869
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8710M | 2022-08-221 | 3 | DIBBS |
| 8710M | 2021-05-133 | 3 | DIBBS |
| 8710M | 2021-05-122 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-118-2869
Related Products | NSN 5985-00-118-2869
Technical Data | NSN 5985-00-118-2869
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | AUDIO |

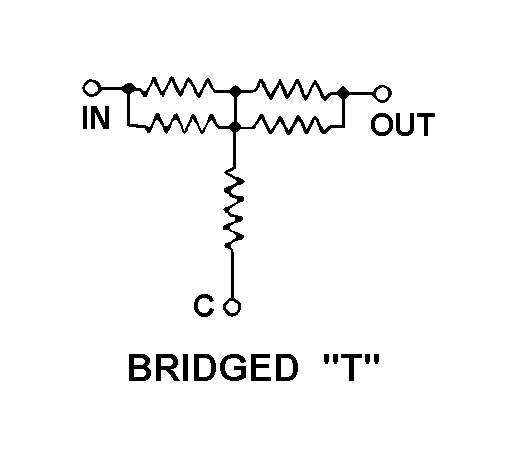

| SCHEMATIC DIAGRAM DESIGNATOR | 3A BRIDGED T |
| INPUT IMPEDANCE RATING IN OHMS | 50.0 |
| OUTPUT IMPEDANCE RATING IN OHMS | 50.0 |
| RF SIGNAL ATTENUATION IN DECIBELS | 20.0 |
| BODY STYLE | 1B ROUND, TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL LENGTH | 6.440 INCHES NOMINAL |
| OVERALL DIAMETER | 1.250 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| BODY SURFACE TREATMENT | ANY ACCEPTABLE |
| TERMINAL TYPE AND QUANTITY | 3 CONNECTOR |
| COAXIAL CONNECTOR SERIES DESIGNATION | BNC |
