NSN 5985-00-110-5863 TDR14219, 32-87850-91, 00-110-5863
Product Details | WAVEGUIDE ASSEMBLY
5985-00-110-5863 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: TDR14219, 32-87850-91, 5985-00-110-5863, 00-110-5863, 5985001105863, 328785091, 001105863
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 NOV 1972 | 00-110-5863 | 00305 ( WAVEGUIDE ASSEMBLY ) |
Drawings & Photos | NSN 5985-00-110-5863
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-110-5863
Related Products | NSN 5985-00-110-5863
Technical Data | NSN 5985-00-110-5863
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B12 THREE BEND TYPE |
| CROSS-SECTIONAL SHAPE STYLE | A2 INTERNAL, RECTANGULAR DOUBLE RIDGED EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 0.791 INCHES NOMINAL |
| WAVEGUIDE OUTSIDE HEIGHT | 0.421 INCHES NOMINAL |
| FLEXIBILITY | RIGID SINGLE TUBING SEGMENT |
| MATERIAL | ALUMINUM ALLOY SINGLE TUBING SEGMENT |
| SURFACE TREATMENT | ENAMEL ALL TUBING SEGMENT AND FLANGE OUTSIDE SURFACES |
| (NON-CORE DATA) SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-14072 MIL SPEC SINGLE TREATMENT RESPONSE ALL TUBING SEGMENT AND FLANGE OUTSIDE SURFACES |
| FLANGE QUANTITY | 2 |

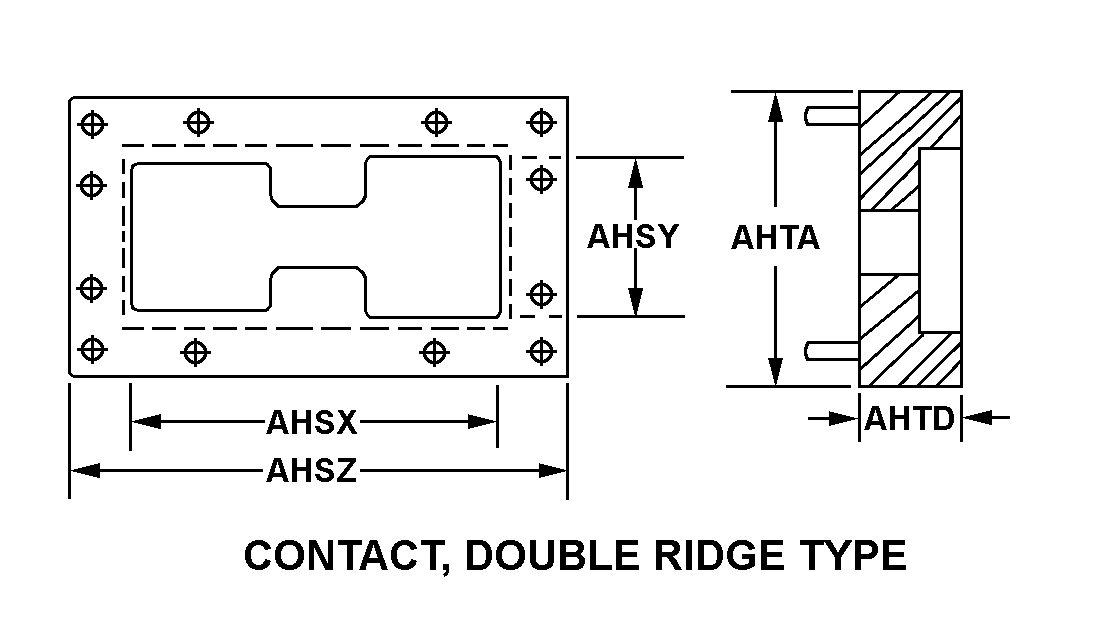

| FLANGE STYLE | C16 CONTACT, DOUBLE RIDGE TYPE ALL FLANGES |
| FLANGE INSIDE WIDTH | 0.689 INCHES MINIMUM AND 0.693 INCHES MAXIMUM ALL FLANGES |
| FLANGE INSIDE HEIGHT | 0.319 INCHES MINIMUM AND 0.323 INCHES MAXIMUM ALL FLANGES |
| FLANGE OUTSIDE WIDTH | 1.358 INCHES MINIMUM AND 1.390 INCHES MAXIMUM ALL FLANGES |
| FLANGE OUTSIDE HEIGHT | 1.358 INCHES MINIMUM AND 1.390 INCHES MAXIMUM ALL FLANGES |
| FLANGE DEPTH | 0.235 INCHES MINIMUM AND 0.255 INCHES MAXIMUM ALL FLANGES |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 THREADED HOLE ALL FLANGES FIRST CONNECTION FACILITY 2 UNTHREADED HOLE ALL FLANGES SECOND CONNECTION FACILITY |
| FLANGE CONNECTING HOLE DIAMETER | 0.096 INCHES NOMINAL ALL FLANGES SECOND CONNECTION FACILITY |
| THREAD SERIES DESIGNATOR | UNC ALL FLANGES FIRST CONNECTION FACILITY |
| NOMINAL THREAD SIZE | 0.138 INCHES ALL FLANGES FIRST CONNECTION FACILITY |
| THREAD CLASS | 2B ALL FLANGES FIRST CONNECTION FACILITY |
| THREAD DIRECTION | RIGHT-HAND ALL FLANGES FIRST CONNECTION FACILITY |
| VOLTAGE STANDING WAVE RATIO | 1.30 |
| SPECIAL FEATURES | NEITHER FLANGE PRESSURIZED |
| III SUPPLEMENTARY FEATURES | MARKED ONE END W/ARROW AND LETTERS INBD |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 32-87850-91 |
