NSN 5985-00-097-7374 S2479, S-2479, SA521A/A

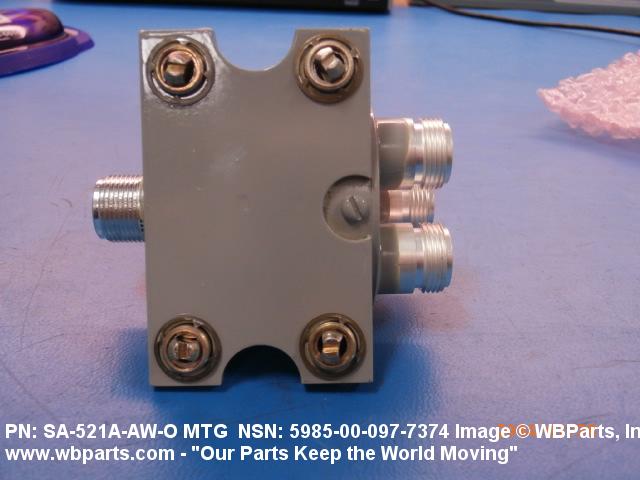

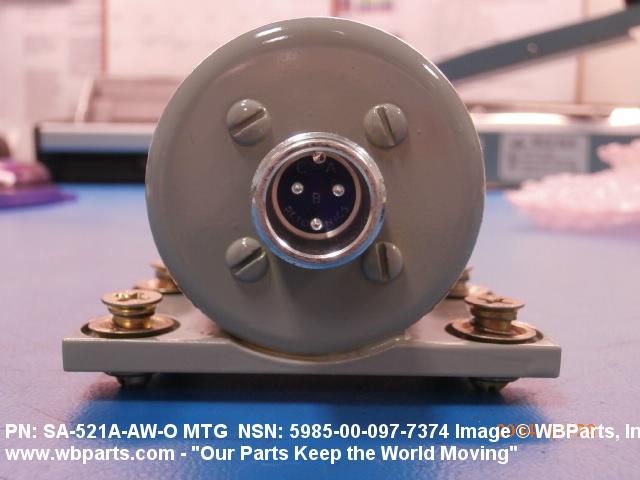

Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH

5985-00-097-7374 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000

Part Alternates: S2479, S-2479, SA521A/A, SA-521A/A, SA-521A/AW/O MTG, SA521AA, SA521AAWOMTG, GS839L2, MILDTL25879, MIL-DTL-25879, MILS25879, MIL-S-25879, 13-50-04010, 50010, 5985-00-097-7374, 00-097-7374, 5985000977374, 135004010, 000977374

Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	29 MAY 1968	00-097-7374	05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE )

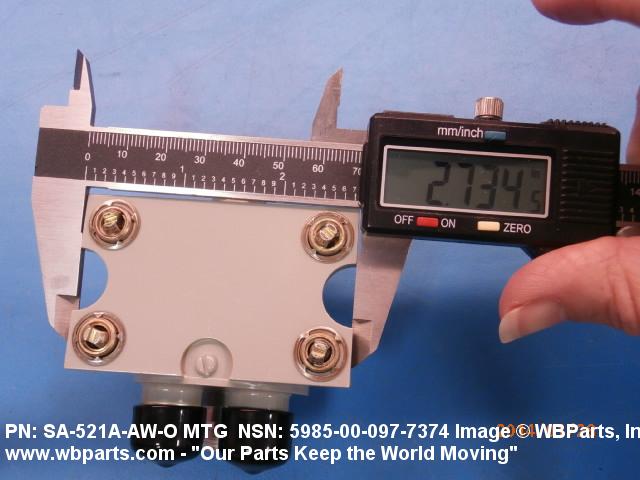

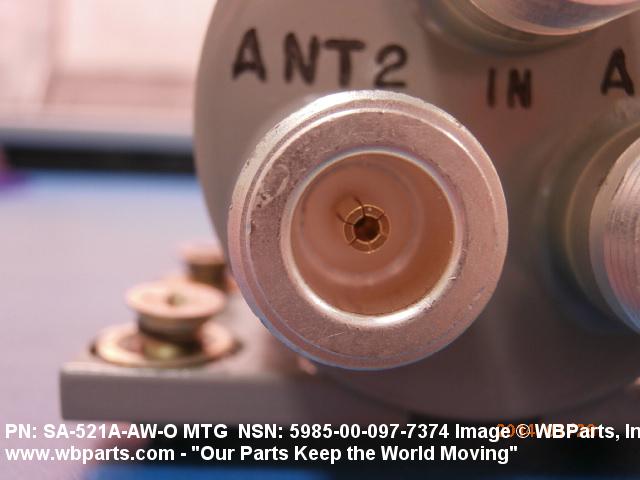

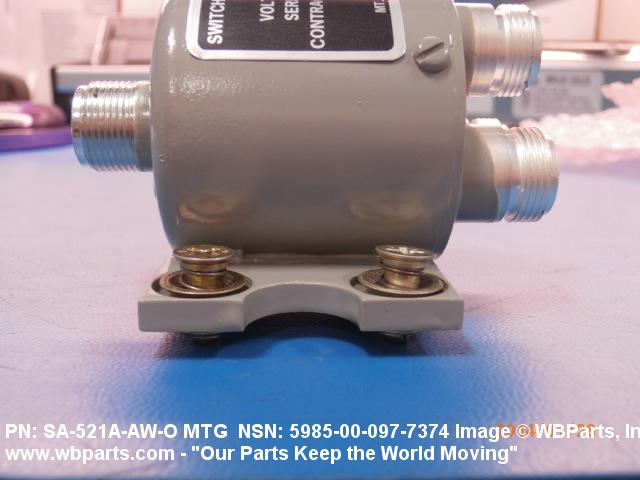

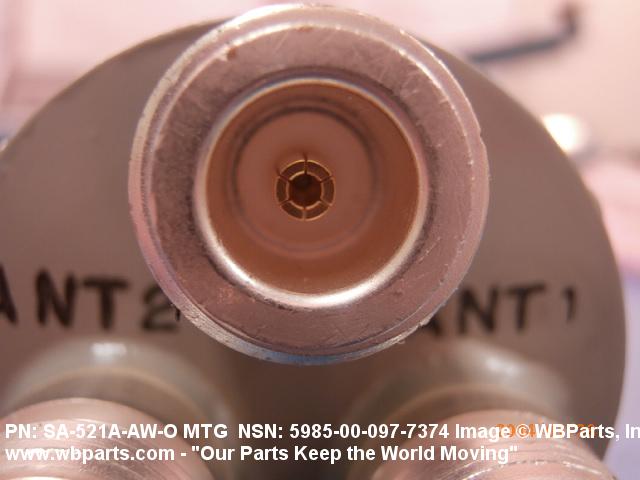

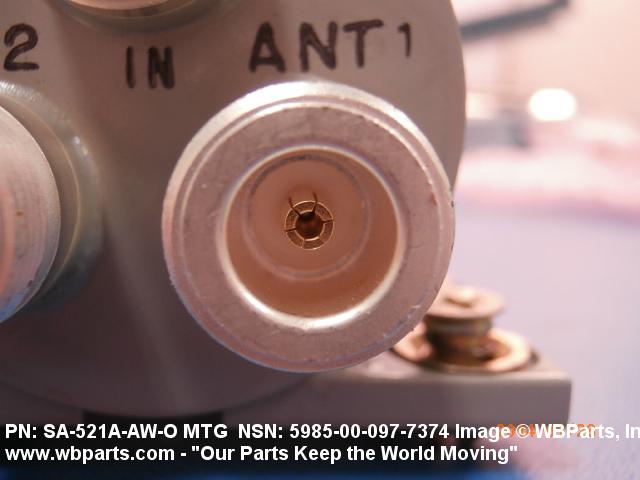

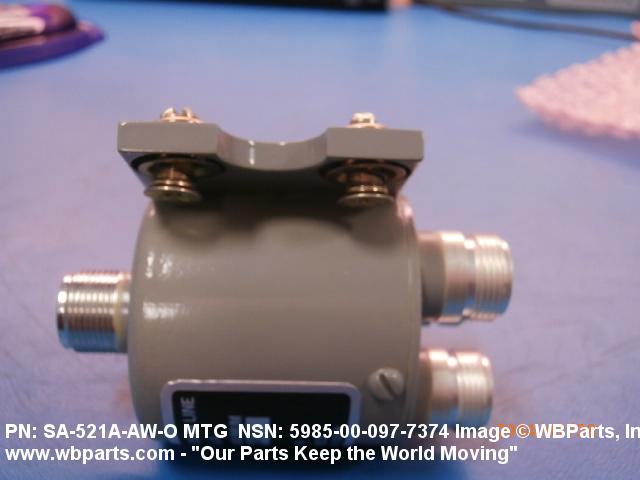

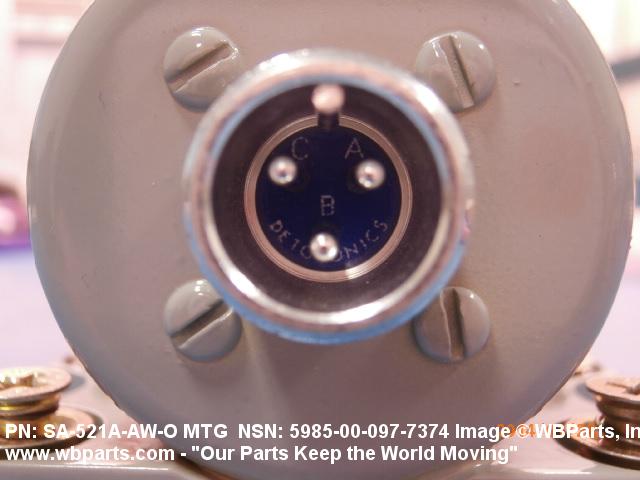

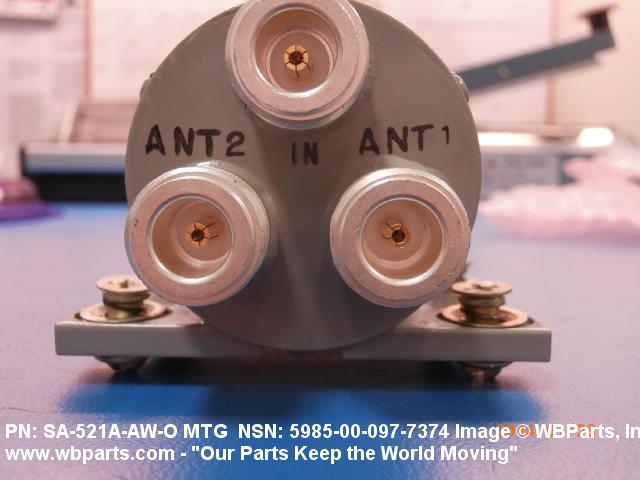

Drawings & Photos | NSN 5985-00-097-7374

Part Number	Request Date	QTY	Origin
MILS25879	2024-10-296	12	MY
5985-00-097-7374	2024-08-242	1	United States
5985-00-097-7374	2024-08-221	14	DIBBS
5985-00-097-7374	2024-04-116	13	DIBBS
5985-00-097-7374	2024-04-108	5	Malaysia
5985-00-097-7374	2024-03-80	2	US
5985-00-097-7374	2023-04-117	119	DIBBS
5985-00-097-7374	2023-02-37	38	DIBBS
5985-00-097-7374	2023-01-29	26	DIBBS
5985-00-097-7374	2022-11-333	12	US
5985-00-097-7374	2022-11-326	163	DIBBS
5985-00-097-7374	2022-11-318	38	DIBBS
5985-00-097-7374	2022-11-306	18	DIBBS
5985-00-097-7374	2022-09-244	107	DIBBS
5985-00-097-7374	2022-07-205	28	DIBBS
5985-00-097-7374	2022-06-172	23	DIBBS
5985-00-097-7374	2022-04-118	16	DIBBS
5985-00-097-7374	2022-03-79	68	DIBBS
5985-00-097-7374	2022-02-52	7	Malaysia
5985-00-097-7374	2022-02-49	7	Malaysia
5985-00-097-7374	2022-01-18	6	US
5985-00-097-7374	2021-11-312	7	Malaysia
5985-00-097-7374	2021-11-307	7	Malaysia
5985-00-097-7374	2021-10-299	7	Malaysia
5985-00-097-7374	2017-09-253	1	India
5985-00-097-7374	2016-10-280	40	DIBBS
5985-00-097-7374	2016-08-215	103	DIBBS
5985-00-097-7374	2015-04-96	6	United States
5985-00-097-7374	2015-02-43	1	United States
5985-00-097-7374	2015-01-15	2	United States
5985-00-097-7374	2014-06-181	29	United States
5985-00-097-7374	2014-06-163	22	United States
5985-00-097-7374	2014-02-36	10	US
SA521AAWOMTG	2013-06-163	7	United States
SA521AA	2013-03-78	5	United States
5985-00-097-7374	2012-11-334	228	DIBBS
5985-00-097-7374	2012-11-306	148	DIBBS
5985-00-097-7374	2012-10-298	7	United States
5985-00-097-7374	2012-08-240	6	United States
5985-00-097-7374	2012-07-212	5	US
5985-00-097-7374	2012-06-158	68	DIBBS
5985-00-097-7374	2011-09-262	58	DIBBS
SA521AA	2011-08-231	1	US
5985-00-097-7374	2011-06-152	5	United States
5985-00-097-7374	2011-03-87	147	DIBBS
5985-00-097-7374	2010-08-214	32	DIBBS
5985-00-097-7374	2010-07-182	44	DIBBS
5985-00-097-7374	2010-05-123	5	US
5985-00-097-7374	2010-01-15	138	DIBBS
SA521AA	2009-08-224	1	US
5985-00-097-7374	2009-07-182	108	DIBBS
5985-00-097-7374	2009-03-63	94	DIBBS
5985-00-097-7374	2008-12-347	80	DIBBS
5985-00-097-7374	2008-12-347	162	DIBBS
5985-00-097-7374	2008-01-24	84	DIBBS
MILS25879	2007-08-243	6	US
5985-00-097-7374	2007-08-240	8	US
5985-00-097-7374	2007-08-225	122	DIBBS
5985-00-097-7374	2007-07-191	91	DIBBS
5985-00-097-7374	2007-06-157	40	DIBBS
5985-00-097-7374	2007-06-157	162	DIBBS

Cross Reference | NSN 5985-00-097-7374

Part Number	Cage Code	Manufacturer
13-50-04010	25693	MEGGITT SAFETY SYSTEMS, INC.
50010	82152	L-3 COMMUNICATIONS CORPORATION DBA DATRON ADVANCED TECHNOLOGIES
GS839L2	26512	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
MIL-DTL-25879	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-25879	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
S-2479	12598	R L C ELECTRONICS, INC.
SA-521A/A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
SA-521A/AW/O MTG	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
SA521A/A	17472	EATON CORPORATION DIV FUEL & MOTION CONTROL SYSTEMS
SA521A/A	72121	EATON MOTOR SITE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5985-00-097-7374

Compare

Related Products | NSN 5985-00-097-7374

5985-00-097-7375, 5985-00-097-7401, 5985-00-097-7555, 5985-00-097-7556, 5985-00-097-7634

Technical Data | NSN 5985-00-097-7374

Characteristic	Specifications
FREQUENCY RATING	0.0 GIGAHERTZ MINIMUM AND 1.25 GIGAHERTZ MAXIMUM SINGLE FREQUENCY OPERATING
RF POWER HANDLING CAPABILITY	100.0 WATTS AVERAGE 1ST 4.5 KILOWATTS PEAK 2ND
VOLTAGE STANDING WAVE RATIO	1.20 SINGLE
INSERTION LOSS IN DECIBELS	0.20 SINGLE
MINIMUM CROSSTALK RATING IN DECIBELS	40.0 SINGLE
ACTUATOR OPERATING METHOD	RELAY
ACTUATOR CURRENT TYPE AND RATING IN AMPS	1.0 DC NOMINAL
ACTUATOR VOLTAGE IN VOLTS	28.0 NOMINAL
RF MAXIMUM VOLTAGE RATING	1.0 KILOVOLTS PEAK
SWITCH TYPE	NONTRANSFER
POLE QUANTITY	1
THROW QUANTITY	2
COUPLING POSITION QUANTITY	3
TERMINAL TYPE AND QUANTITY	1 CONNECTOR, RECEPTACLE AND 3 RECEPTACLE, COAXIAL
COAXIAL CONNECTOR SERIES DESIGNATION	N
CONNECTOR END DESIGN	FEMALE
SWITCH OPERATION SEQUENCE	MAKES BEFORE BREAKS
SWITCHING TIME	20.0 MILLISECONDS
BODY STYLE	104B IRREGULAR
OVERALL LENGTH	3.040 INCHES MINIMUM AND 3.340 INCHES MAXIMUM
OVERALL HEIGHT	2.750 INCHES MAXIMUM
OVERALL WIDTH	1.950 INCHES MAXIMUM
MATERIAL	ALUMINUM ALLOY BODY
MOUNTING FACILITY TYPE AND QUANTITY	1 BASE
TEST DATA DOCUMENT	81349-MIL-S-25879 SPECIFICATION
III OPERATING TEMP RANGE	-55.0 TO 85.0 DEG CELSIUS
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DTL-25879
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	SA-521A/AW/O MTG
