NSN 5985-00-069-1648 AV794FM5, AV794FM-5, STA11010800179
Product Details | VARIABLE ATTENUATOR
5985-00-069-1648 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: AV794FM5, AV794FM-5, STA11010800179, STA-1101-08-001-79, 794FM, 5985-00-069-1648, 00-069-1648, 5985000691648, 000691648
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 JUL 1967 | 00-069-1648 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5985-00-069-1648
Demand History | NSN 5985-00-069-1648
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-00-069-1648 | 2024-01-18 | 1 | DE |
| 794FM | 2023-07-192 | 1 | DIBBS |
| STA-1101-08-001-79 | 2023-07-192 | 1 | DIBBS |
| 5985-00-069-1648 | 2022-02-57 | 1 | US |
| 5985-00-069-1648 | 2022-02-40 | 1 | France |
| 5985-00-069-1648 | 2022-01-24 | 1 | France |
| 794FM | 2021-12-356 | 1 | DIBBS |
| AV794FM-5 | 2021-12-356 | 1 | DIBBS |
| STA-1101-08-001-79 | 2021-12-356 | 1 | DIBBS |
| 5985-00-069-1648 | 2021-07-187 | 1 | South Korea |
| 5985-00-069-1648 | 2016-04-101 | 2 | DIBBS |
| 5985-00-069-1648 | 2016-03-84 | 1 | DIBBS |
| 5985-00-069-1648 | 2015-05-130 | 1 | DIBBS |
| 5985-00-069-1648 | 2015-04-103 | 1 | DIBBS |
| 5985-00-069-1648 | 2015-04-92 | 1 | DIBBS |
| 5985-00-069-1648 | 2015-03-64 | 1 | DIBBS |
| 5985-00-069-1648 | 2013-11-320 | 2 | DIBBS |
| 5985-00-069-1648 | 2013-10-304 | 2 | DIBBS |
| 5985-00-069-1648 | 2013-03-86 | 1 | us |
| 5985-00-069-1648 | 2011-11-318 | 1 | DIBBS |
| 794FM | 2010-04-105 | 1 | US |
| 794FM | 2010-04-102 | 1 | US |
| 5985-00-069-1648 | 2006-05-131 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-069-1648
Related Products | NSN 5985-00-069-1648
Technical Data | NSN 5985-00-069-1648
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| FREQUENCY RANGE | 4.000 GIGAHERTZ MINIMUM AND 8.000 GIGAHERTZ MAXIMUM |
| VOLTAGE STANDING WAVE RATIO | 1.25 |
| POWER RATING | 10.0 WATTS AVERAGE AND 5.0 KILOWATTS PEAK |
| INSERTION LOSS AT MINIMUM ATTENUATION IN MAXIMUM DECIBELS | 1.5 |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 40.0 |
| OVERALL ATTENUATION ACCURACY IN DECIBELS | -1.50 TO 1.50 |
| ATTENUATION VARIATION METHOD | CONTINUOUS |

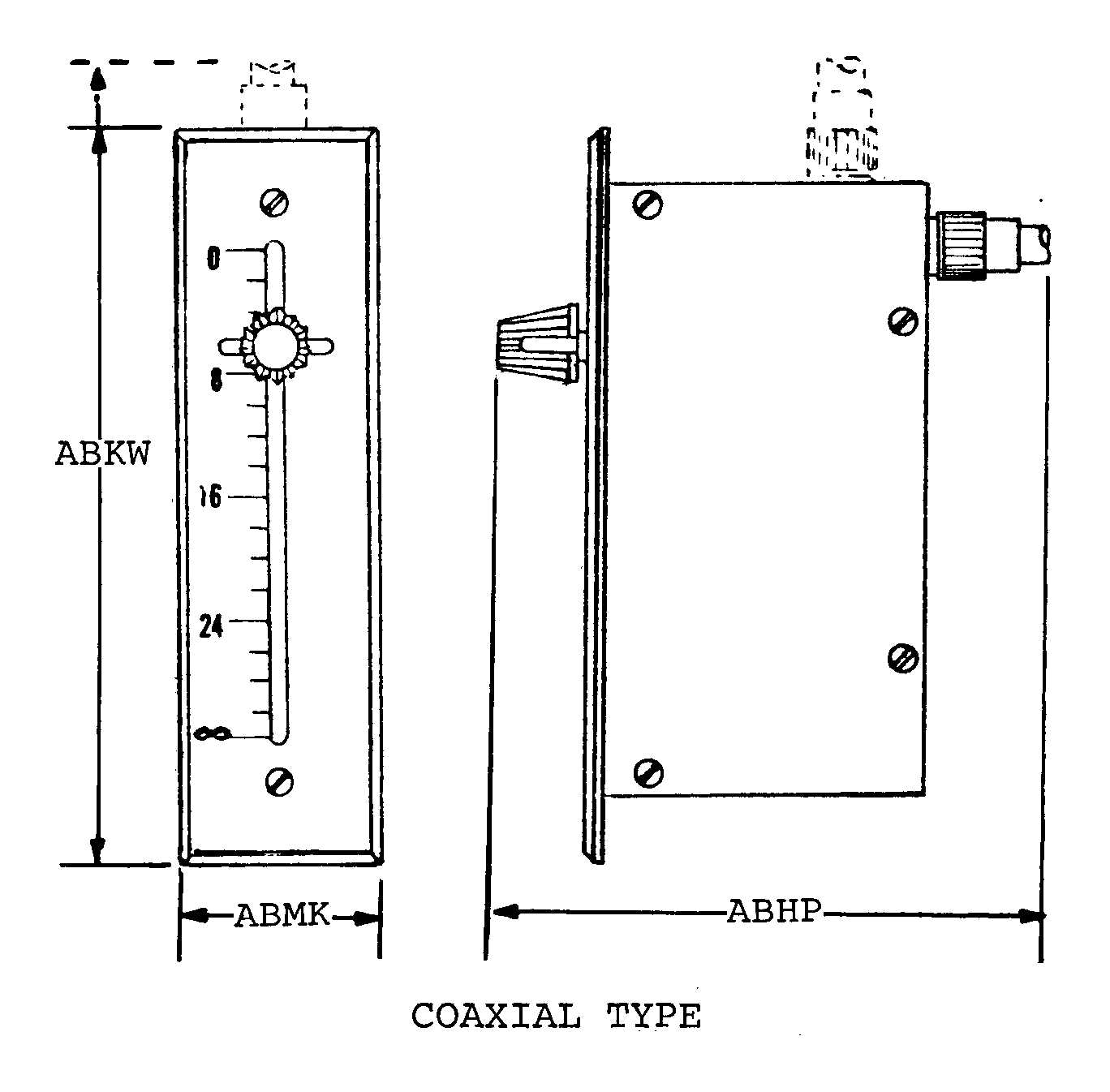

| BODY STYLE | 15A COAXIAL TYPE |
| OVERALL LENGTH | 5.156 INCHES NOMINAL |
| OVERALL HEIGHT | 10.125 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 2 KNOB |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, COAXIAL, MALE AND 1 CONNECTOR, COAXIAL, FEMALE |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.138 INCHES |
| MOUNTING THREAD QUANTITY | 32 PER INCH |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 6.938 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 5.234 INCHES NOMINAL |
