Product Details | VARIABLE ATTENUATOR
5985-00-063-4107 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: 111495, 111495C, 111495D, 5985-00-063-4107, 00-063-4107, 5985000634107, 000634107
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-063-4107 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5985-00-063-4107
Cross Reference | NSN 5985-00-063-4107
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-063-4107
Technical Data | NSN 5985-00-063-4107
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | TRANSMISSION LINE |
| FREQUENCY RANGE | 10.150 MEGAHERTZ MINIMUM AND 10.450 MEGAHERTZ MAXIMUM |
| IMPEDANCE RATING IN OHMS | 50.0 INPUT-OUTPUT |
| POWER RATING | 5.0 WATTS AVERAGE |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.5 TO 60.5 |
| ATTENUATION VARIATION METHOD | CONTINUOUS |

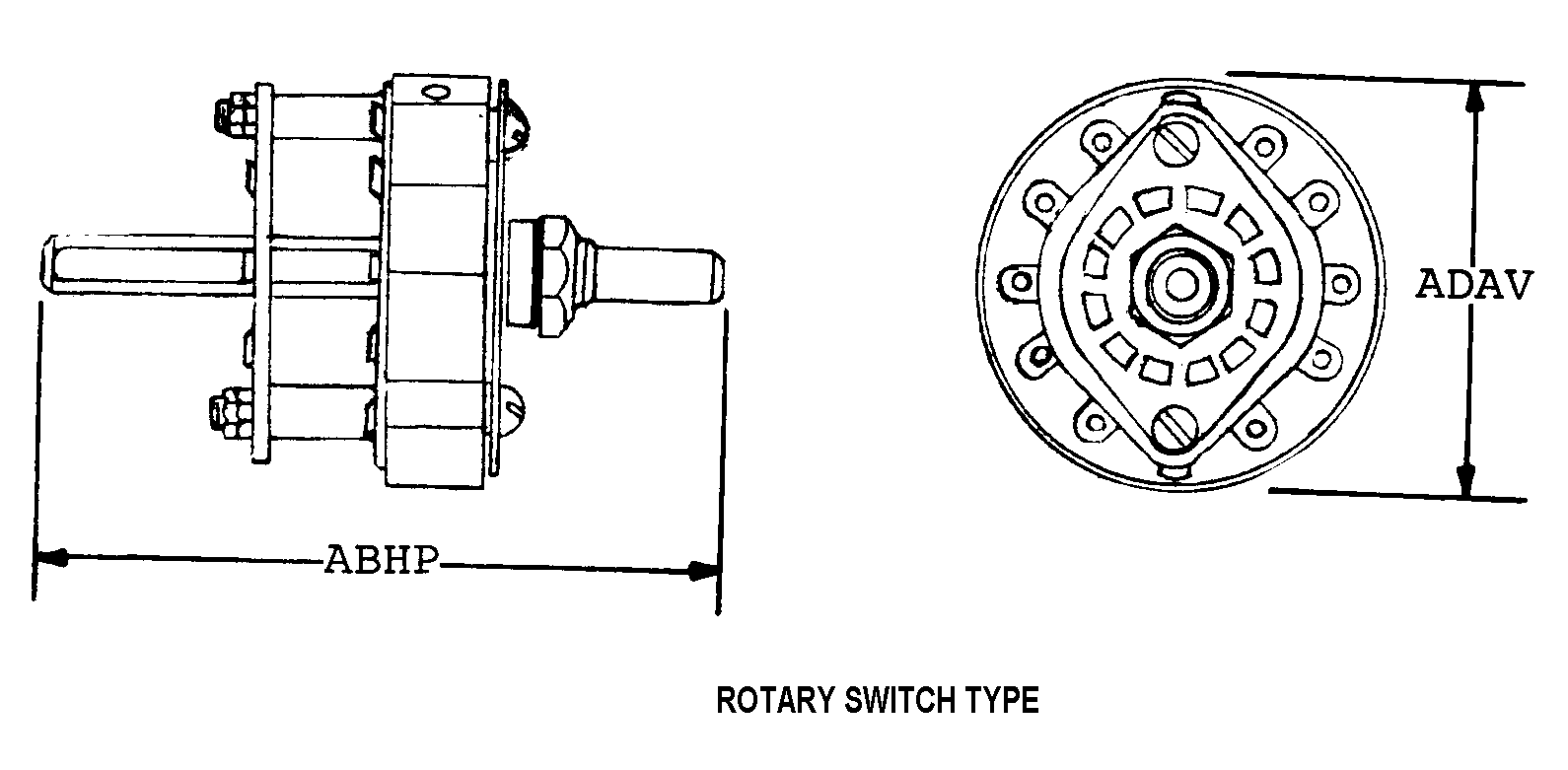

| BODY STYLE | 23A ROTARY SWITCH TYPE |
| OVERALL LENGTH | 1.011 INCHES NOMINAL |
| OVERALL DIAMETER | 5.060 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| III FSC APPLICATION DATA | SET,TRANSPONDER SET |
| MANUFACTURERS CODE | 80249 |
| DESIGN CONTROL REFERENCE | 111495D |
