NSN 5980-01-507-4117 PMRL200BG24HWT, PMRL200UG24WT, PMRL200-UG24-WT
Product Details | LIGHT EMITTING DIODE
5980-01-507-4117 A two electrode, solid state, optoelectronic device that emits visible or infrared radiant energy when electrically energized. May or may not include mounting hardware and/or heat sink. Excludes LAMP, CARTRIDGE; and LIGHT, INDICATOR. For solid state devices which are responsive to infrared or radiant energy, see SEMICONDUCTOR DEVICE (1), PHOTO.20259800046Optoelectronic Devices and Associated Hardware62100045Indoor and Outdoor Electric Lighting Fixtures
Part Alternates: PMRL200BG24HWT, PMRL200UG24WT, PMRL200-UG24-WT, 213A611, 5980-01-507-4117, 01-507-4117, 5980015074117, 015074117
Electrical and Electronic Equipment Components | Optoelectronic Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 APR 2003 | 01-507-4117 | 32371 ( LIGHT EMITTING DIODE ) |

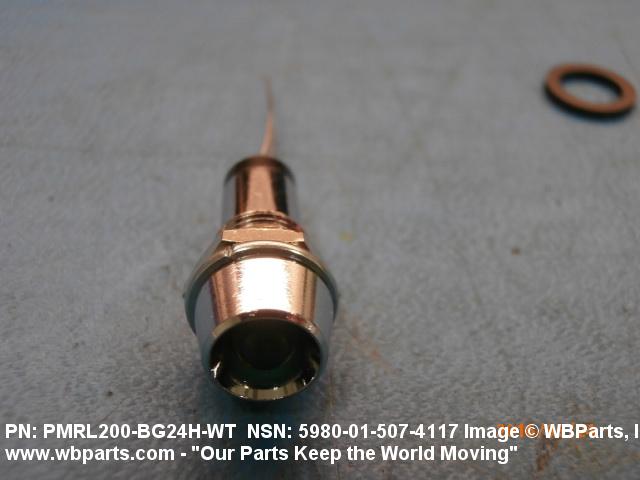

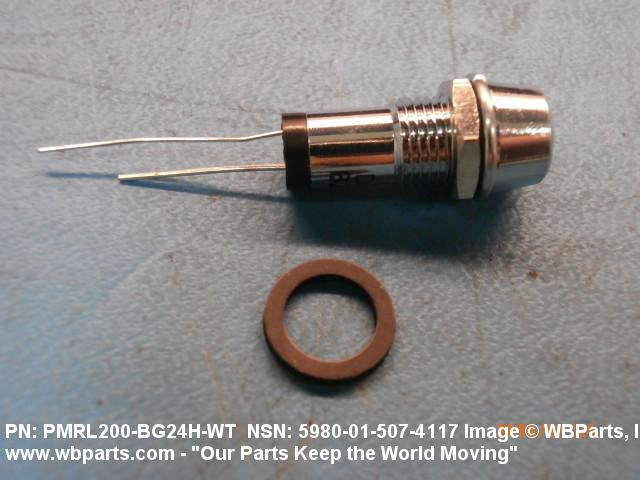

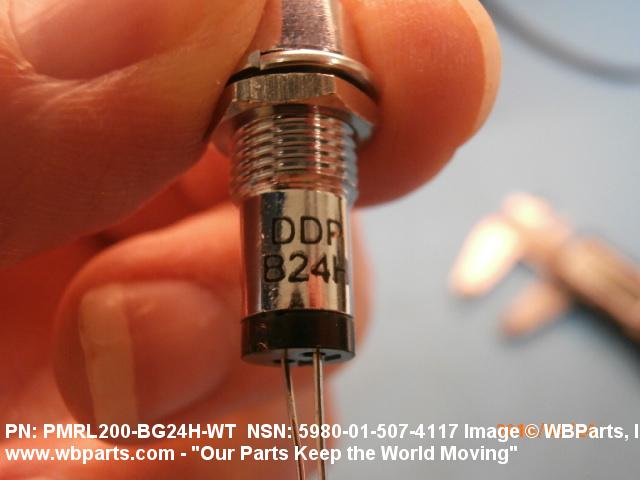

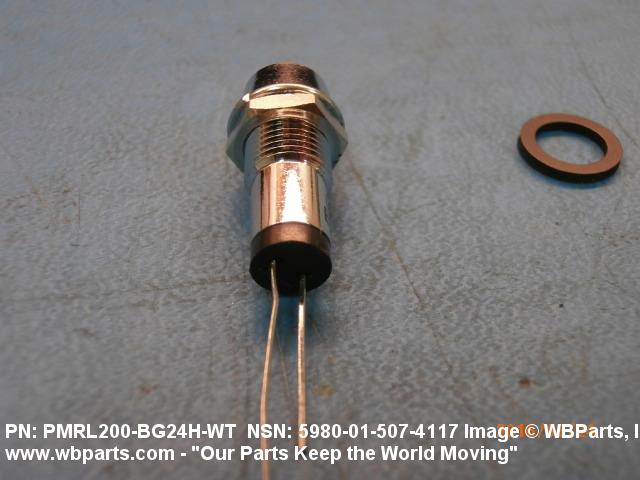

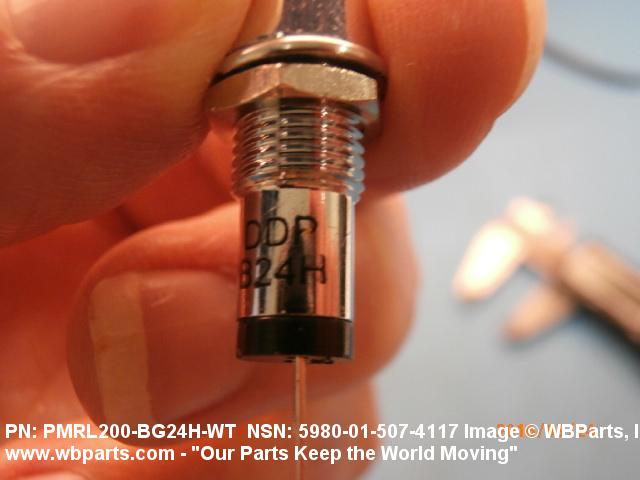

Drawings & Photos | NSN 5980-01-507-4117
Demand History | NSN 5980-01-507-4117
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| PMRL200BG24HWT | 2016-04-111 | 2 | us |
| 5980-01-507-4117 | 2012-02-40 | 8 | DIBBS |
Cross Reference | NSN 5980-01-507-4117
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5980-01-507-4117
Technical Data | NSN 5980-01-507-4117
| Characteristic | Specifications |
|---|---|
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 24.0 NOMINAL FORWARD VOLTAGE, DC |
| CURRENT RATING PER CHARACTERISTIC | 17.00 MILLIAMPERES NOMINAL FORWARD CURRENT, DC |

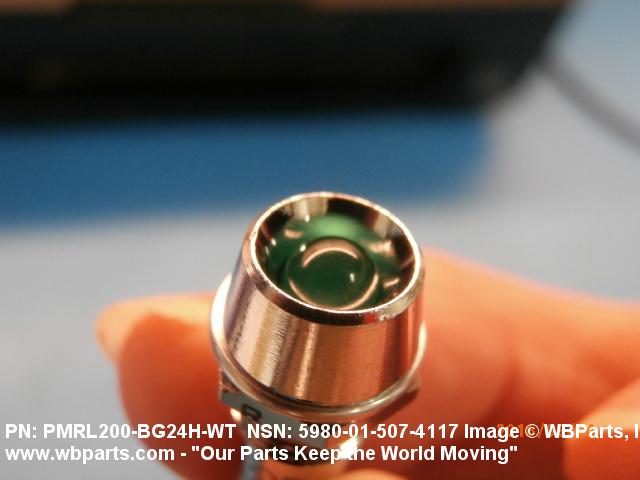

| COLOR TONE PRODUCED PER SOURCE | GREEN LENS |
| LENS TRANSPARENCY | TRANSLUCENT |
| LUMINOUS INTENSITY | 10.0 MILLICANDELA NOMINAL |
| INCLOSURE MATERIAL | METAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 1 |
| TERMINAL TYPE AND QUANTITY | 2 PIN |

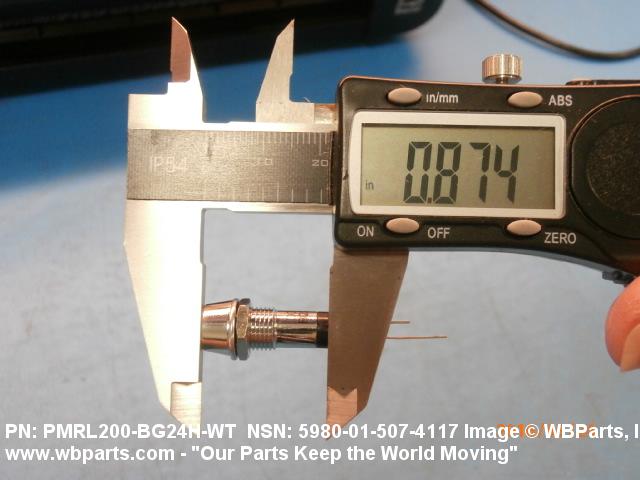

| OVERALL LENGTH | 0.890 INCHES NOMINAL |

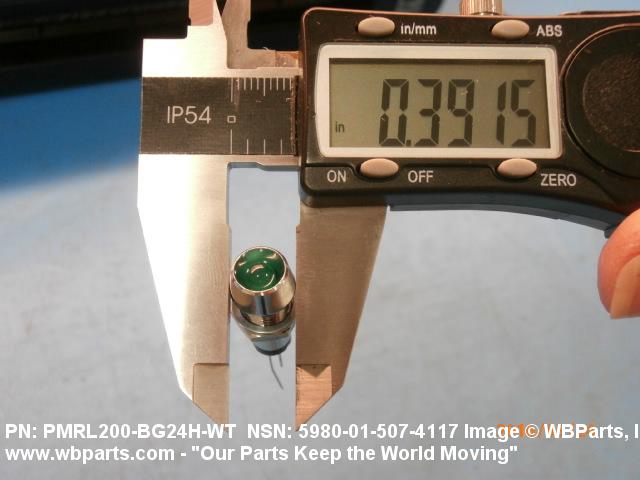

| OVERALL DIAMETER | 0.390 INCHES NOMINAL |
| SPECIAL FEATURES | WATER TIGHT |
| III END ITEM IDENTIFICATION | LOS CLASS SSN (688) |
Restrictions/Controls & Freight Information | NSN 5980-01-507-4117
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5980-01-507-4117
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
