NSN 5980-01-136-6330 MF200BCR5H, MF200-BCR5H, MF200BR5HC
Product Details | LIGHT EMITTING DIODE
5980-01-136-6330 A two electrode, solid state, optoelectronic device that emits visible or infrared radiant energy when electrically energized. May or may not include mounting hardware and/or heat sink. Excludes LAMP, CARTRIDGE; and LIGHT, INDICATOR. For solid state devices which are responsive to infrared or radiant energy, see SEMICONDUCTOR DEVICE (1), PHOTO.20259800046Optoelectronic Devices and Associated Hardware62100045Indoor and Outdoor Electric Lighting Fixtures
Part Alternates: MF200BCR5H, MF200-BCR5H, MF200BR5HC, MF200-BR5H-C, 5980-01-136-6330, 01-136-6330, 5980011366330, 011366330
Electrical and Electronic Equipment Components | Optoelectronic Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 AUG 1982 | 01-136-6330 | 32371 ( LIGHT EMITTING DIODE ) |

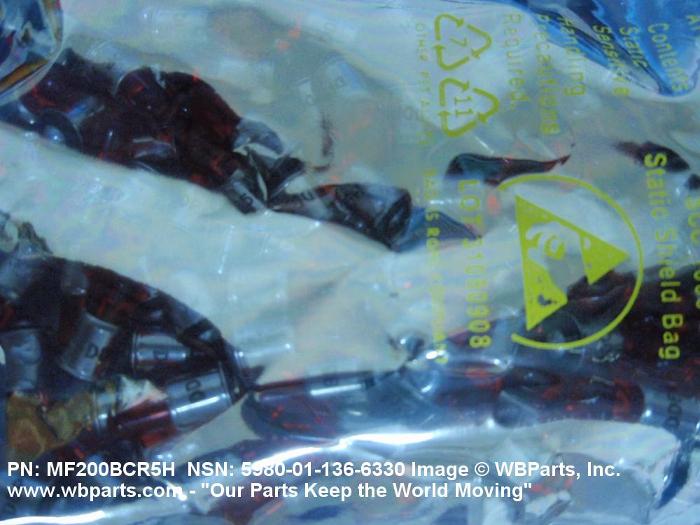

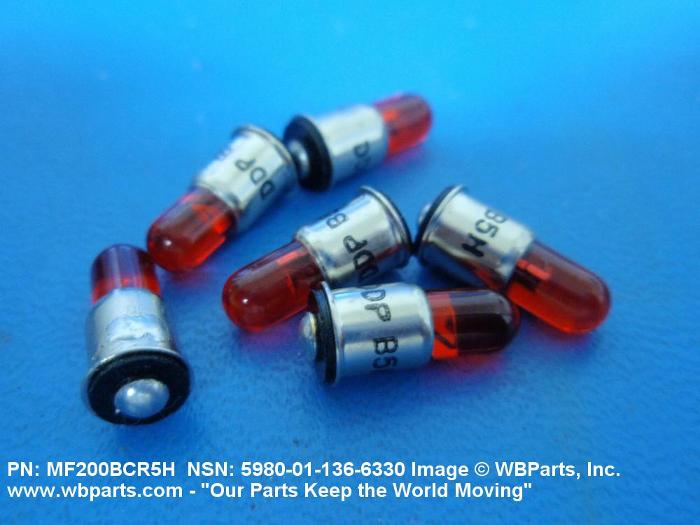

Drawings & Photos | NSN 5980-01-136-6330
Demand History | NSN 5980-01-136-6330
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MF200BR5HC | 2021-08-217 | 10 | US |
| MF200-BCR5H | 2020-02-58 | 200 | DIBBS |
| 5980-01-136-6330 | 2012-08-215 | 136 | DIBBS |
| MF200BCR5H | 2011-04-101 | 160 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5980-01-136-6330
Related Products | NSN 5980-01-136-6330
Technical Data | NSN 5980-01-136-6330
| Characteristic | Specifications |
|---|---|
| SEMICONDUCTOR MATERIAL | GALLIUM ARSENIDE |
| INTERNAL CONFIGURATION | POINT CONTACT |
| INTERNAL JUNCTION CONFIGURATION | PN |
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 3.6 MAXIMUM FORWARD VOLTAGE, DC |
| CURRENT RATING PER CHARACTERISTIC | 30.00 MILLIAMPERES MAXIMUM FORWARD CURRENT, DC |
| POWER RATING PER CHARACTERISTIC | 120.0 MILLIWATTS MAXIMUM TOTAL POWER DISSIPATION |
| COLOR TONE PRODUCED PER SOURCE | RED LENS |
| LENS TRANSPARENCY | TRANSPARENT |
| LUMINOUS INTENSITY | 2.0 MILLICANDELA NOMINAL |
| MAXIMUM OPERATING TEMP PER MEASUREMENT POINT | 100.0 DEG CELSIUS AMBIENT AIR |
| INCLOSURE MATERIAL | PLASTIC |
| MOUNTING METHOD | TERMINAL |
| TERMINAL LENGTH | 1.050 INCHES MINIMUM |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| OVERALL LENGTH | 0.347 INCHES NOMINAL |
| OVERALL DIAMETER | 0.190 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5980-01-136-6330
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5980-01-136-6330
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
