Product Details | ELECTRICAL CONTACT BRUSH

5977-01-515-9367 An item specifically designed to be used in the transfer of electrical energy to or from another conducting surface. Either the brush or the surface is continually moving during the transfer of energy. The brush is usually composed in part of some form of the element carbon. Includes: (1) a single brush either with or without an attached shunt (flexible wire lead) and/or a helical or flat type pressure spring; (2) a split brush composed of two or more pieces (wafers), which are used in place of one brush usually connected together by individual shunts to a common terminal; (3) paired brushes composed of two identical or non-identical brushes connected together by a common shunt either with or without pressure springs or connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like either with or without individual shunts; (4) multiple brushes composed of more than two identical or non-identical brushes without pressure springs connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like by individual shunts. Does not include moving contacts which make and slide past stationary contacts, but are stationary while the circuit is conducting, such as the sliding contacts on a rheostat or the stationary contact on a synchro. Excludes: CONTACT, ELECTRICAL; and CONTACT ASSEMBLY, ELECTRICAL.

Part Alternates: 1811160430, 181116-0430, 1-8111-6064, 5977-01-515-9367, 01-515-9367, 5977015159367, 015159367, 181116064

Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes

Supply Group (FSG) NSN Assign. NIIN
59 15 DEC 2003 01-515-9367

Drawings & Photos | NSN 5977-01-515-9367


Cross Reference | NSN 5977-01-515-9367

Part Number Cage Code Manufacturer
1-8111-6064 S0226 ISUZU MOTOR CO. LTD
181116-0430 S0226 ISUZU MOTOR CO. LTD

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5977-01-515-9367

Technical Data | NSN 5977-01-515-9367

Characteristic Specifications
STYLE DESIGNATOR A1 ONE PIECE
MATERIAL ANY ACCEPTABLE
BODY STYLE B2 RECTANGULAR
CONTACT FACE STYLE D5 FLAT
TOP STYLE E2E FLAT WITH LEFT AND RIGHT EDGE BEVELED

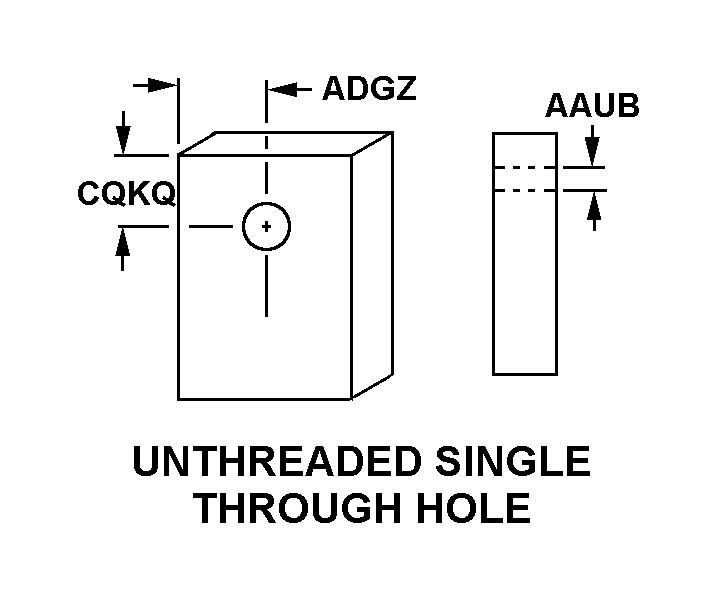

BASIC SHAPE STYLE F3 UNTHREADED SINGLE THROUGH HOLE
SPECIAL FEATURES THIS ITEM IS NEGATIVE (-) SIDE OF STARTER
III END ITEM IDENTIFICATION CRANE,CRAWLER

Restrictions/Controls & Freight Information | NSN 5977-01-515-9367

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 040580 CARBON BRUSHES GENERATOR/MOTOR
Less than car load rating
Less than truck load rating M 85.0
Water commodity Code 72D unknown
Originating Activity Code CX Defense Supply Center Richmond
Richmond, VA 23297-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5977-01-515-9367

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
