NSN 5977-01-507-4649 58368819, 583688-19, 01-507-4649
Product Details | ELECTRICAL CONTACT RING
5977-01-507-4649 An item consisting of a continuous electrically conductive material of circular or ring shape specifically designed to be used in conjunction with a contact brush to establish an electrical circuit between a rotating item and a stationary item. See also COMMUTATOR.
Part Alternates: 58368819, 583688-19, 5977-01-507-4649, 01-507-4649, 5977015074649, 015074649
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 APR 2003 | 01-507-4649 | 02474 ( RING, ELECTRICAL CONTACT ) |

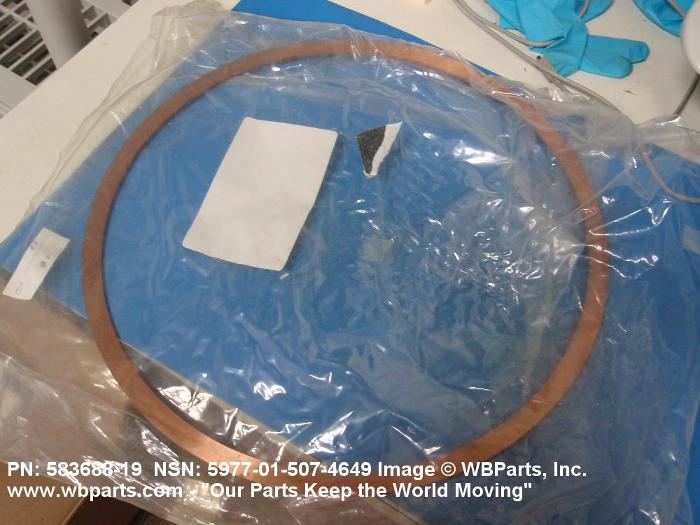

Drawings & Photos | NSN 5977-01-507-4649
Demand History | NSN 5977-01-507-4649
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 58368819 | 2011-09-252 | 2 | US |
| 58368819 | 2008-09-252 | 2 | Hungary |
Cross Reference | NSN 5977-01-507-4649
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 583688-19 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare

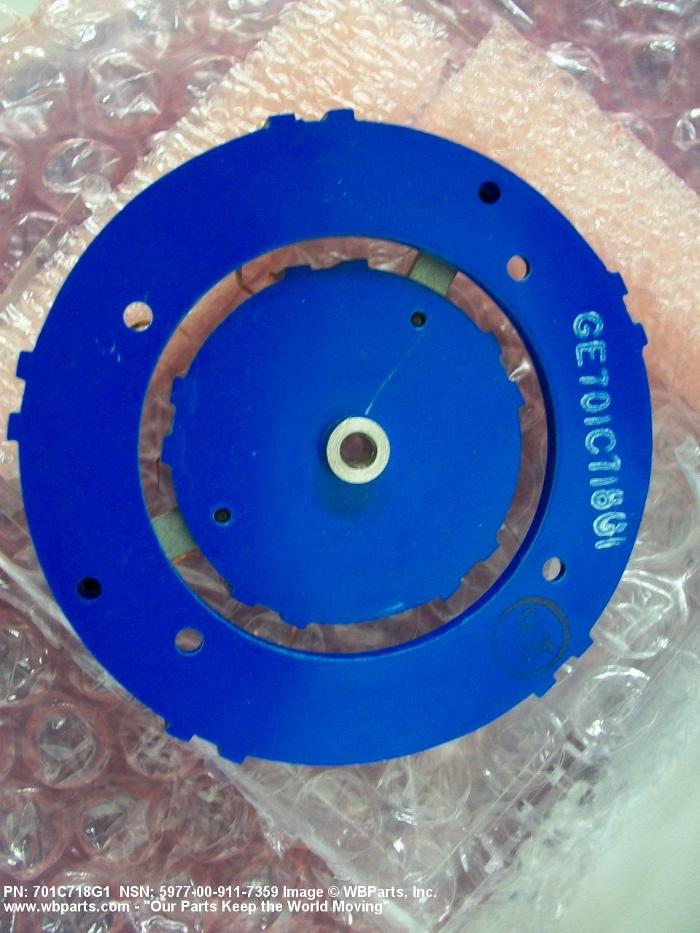

Related Products | NSN 5977-01-507-4649
Technical Data | NSN 5977-01-507-4649
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | PART OF BULKHEAD AND HEATER LEADS GROUP |
| III END ITEM IDENTIFICATION | CASA NURTANIO CN235-10, T-19 |
Restrictions/Controls & Freight Information | NSN 5977-01-507-4649
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
