5977-01-242-3233 An item specifically designed to be used in the transfer of electrical energy to or from another conducting surface. Either the brush or the surface is continually moving during the transfer of energy. The brush is usually composed in part of some form of the element carbon. Includes: (1) a single brush either with or without an attached shunt (flexible wire lead) and/or a helical or flat type pressure spring; (2) a split brush composed of two or more pieces (wafers), which are used in place of one brush usually connected together by individual shunts to a common terminal; (3) paired brushes composed of two identical or non-identical brushes connected together by a common shunt either with or without pressure springs or connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like either with or without individual shunts; (4) multiple brushes composed of more than two identical or non-identical brushes without pressure springs connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like by individual shunts. Does not include moving contacts which make and slide past stationary contacts, but are stationary while the circuit is conducting, such as the sliding contacts on a rheostat or the stationary contact on a synchro. Excludes: CONTACT, ELECTRICAL; and CONTACT ASSEMBLY, ELECTRICAL.

Part Alternates: 3153304, 352250025192, 5977-01-242-3233, 01-242-3233, 5977012423233, 012423233

Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes

Supply Group (FSG) NSN Assign. NIIN
59 09 OCT 1986 01-242-3233

Drawings & Photos | NSN 5977-01-242-3233


Cross Reference | NSN 5977-01-242-3233

Part Number Cage Code Manufacturer
3153304 04155 WENDON COMPANY INC DIV NONE
3153304 10001 NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
352250025192 H0203 THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5977-01-242-3233

Technical Data | NSN 5977-01-242-3233

Characteristic Specifications
STYLE DESIGNATOR A7 DOUBLE BEAM CANTILEVER

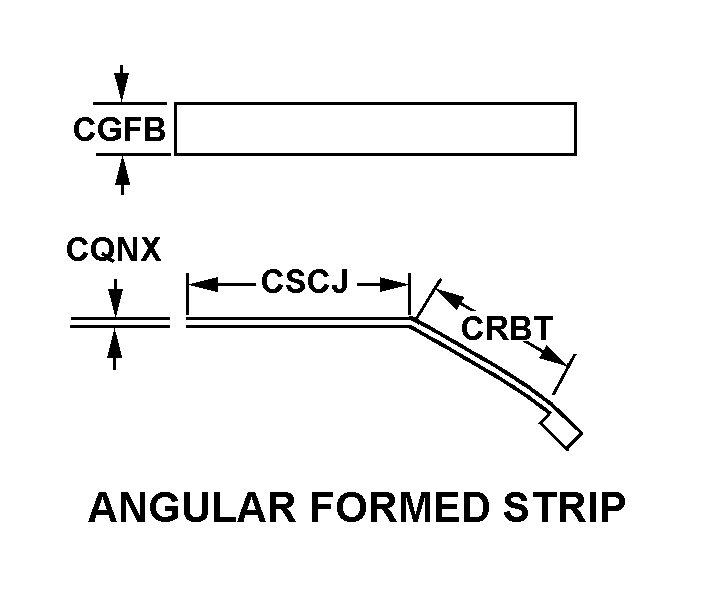

BODY STYLE B21 ANGULAR FORMED STRIP
BEAM THICKNESS 0.006 INCHES NOMINAL
SPECIAL FEATURES TWO MOUNTING HOLES

Restrictions/Controls & Freight Information | NSN 5977-01-242-3233

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
