Product Details | ELECTRICAL CONTACT BRUSH HOLDER

5977-01-240-0462 A holder designed to accommodate and position a brush against a commutator or collector ring. Also includes items consisting of two or more brush holders (boxes) cast as an inseparable unit. May include facilities for applying pressure to the brush(es) and may also be furnished with the brush(es). See also HOLDER ASSEMBLY, ELECTRICAL CONTACT BRUSH.

Part Alternates: CBK20452, CBK-2045-2, 5977-01-240-0462, 01-240-0462, 5977012400462, 012400462

Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes

Supply Group (FSG) NSN Assign. NIIN
59 07 SEP 1986 01-240-0462

Drawings & Photos | NSN 5977-01-240-0462


Cross Reference | NSN 5977-01-240-0462

Part Number Cage Code Manufacturer
CBK-2045-2 99200 AEROFLEX PLAINVIEW, INC. DBA AEROFLEX AIRFLYTE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5977-01-240-0462

Technical Data | NSN 5977-01-240-0462

Characteristic Specifications

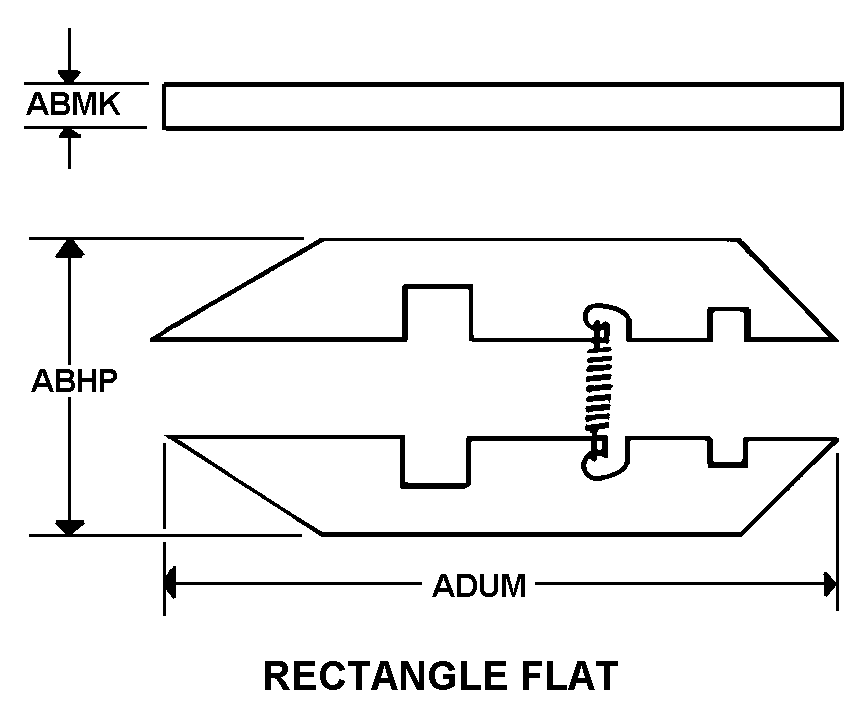

STYLE DESIGNATOR A31 RECTANGLE FLAT
TERMINAL TYPE BUS BAR
TERMINAL QUANTITY 6
BRUSH QUANTITY ACCOMMODATED PER HOLDER 6

Restrictions/Controls & Freight Information | NSN 5977-01-240-0462

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
