NSN 5977-01-107-8032 10378721, 1037872-1, 01-107-8032
Product Details | ELECTRICAL CONTACT RING HOLDER
5977-01-107-8032 00001015977000000
Part Alternates: 10378721, 1037872-1, 5977-01-107-8032, 01-107-8032, 5977011078032, 011078032
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 FEB 1981 | 01-107-8032 | 02868 ( HOLDER, ELECTRICAL CONTACT RING0 ) |
Drawings & Photos | NSN 5977-01-107-8032
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5977-01-107-8032
Related Products | NSN 5977-01-107-8032
Technical Data | NSN 5977-01-107-8032
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/11 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541,CL 3 MIL SPEC SINGLE TREATMENT RESPONSE |

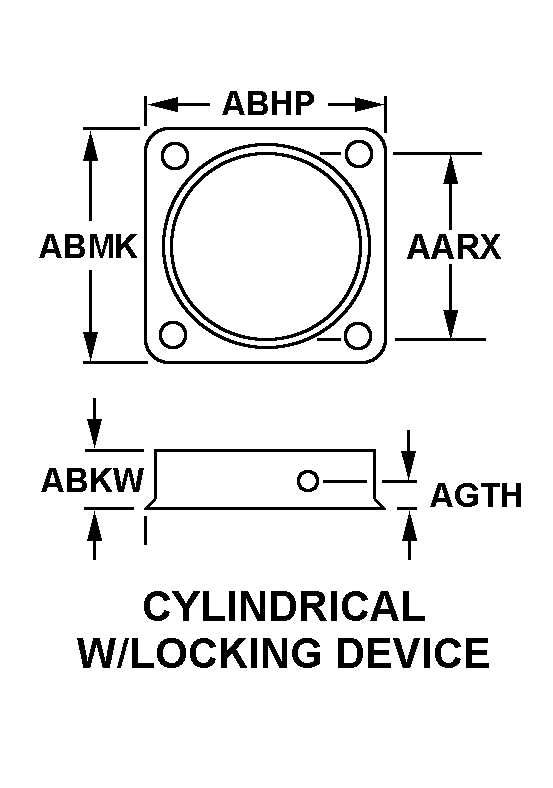

| STYLE DESIGNATOR | 58B CYLINDRICAL W/LOCKING DEVICE |
| INSIDE DIAMETER | 1.000 INCHES NOMINAL |
| OVERALL LENGTH | 1.560 INCHES NOMINAL |
| OVERALL HEIGHT | 0.250 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SURFACE TO LOCKING DEVICE | 0.080 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 SELF-LOCKING NUT SINGLE MOUNTING FACILITY |
| SPECIAL FEATURES | PLATE CONTAINS 4 MOUNTING HOLES 0.328 TO 0.331 IN. IN DIAMETER,HOLES ARE 1.125 IN. APART CENTER TO CENTER ALONG LENGTH AND 0.812 IN. APART CENTER TO CENTER ALONG WIDTH,CORNERS OF THE PLATE ARE BEVELED 0.060 IN AT A 45 DEGREE ANGLE,DIAMETER OF APERTURE IS 0.800 TO 0.810 IN. WITH A FLANGE 0.110TO 0.130 IN. WIDE AND 0.080 IN. DEEP,BELOW THE FLANGE THE APERTURE IS BEVELED AT A 45 DEGREE ANGLE FROM 0.910 TO 0.920 IN. IN DIAMETER TO 0.680-0.690 IN. IN DIAMETER |
Restrictions/Controls & Freight Information | NSN 5977-01-107-8032
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5977-01-107-8032
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
