NSN 5977-01-096-6350 1362072G1, 01-096-6350, 010966350
Product Details | ELECTRICAL CONTACT BRUSH HOLDER
5977-01-096-6350 A holder designed to accommodate and position a brush against a commutator or collector ring. Also includes items consisting of two or more brush holders (boxes) cast as an inseparable unit. May include facilities for applying pressure to the brush(es) and may also be furnished with the brush(es). See also HOLDER ASSEMBLY, ELECTRICAL CONTACT BRUSH.
Part Alternates: 1362072G1, 5977-01-096-6350, 01-096-6350, 5977010966350, 010966350
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 JUN 1980 | 01-096-6350 | 02937 ( HOLDER, ELECTRICAL CONTACT BRUSH ) |
Drawings & Photos | NSN 5977-01-096-6350
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5977-01-096-6350
Technical Data | NSN 5977-01-096-6350
| Characteristic | Specifications |
|---|---|

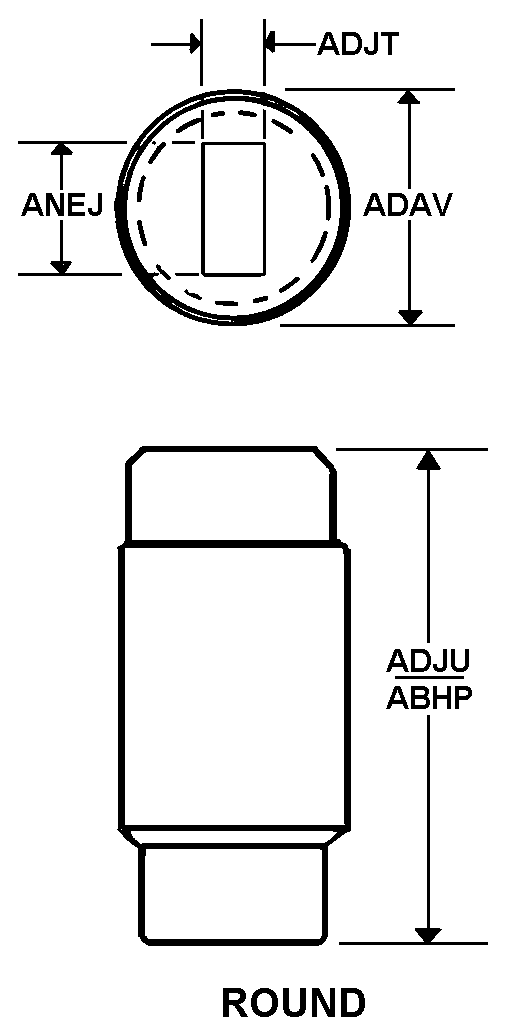

| STYLE DESIGNATOR | A1 ROUND |
| OVERALL LENGTH | 0.850 INCHES MINIMUM AND 0.860 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.5633 INCHES MINIMUM AND 0.5638 INCHES MAXIMUM |
| INSIDE WIDTH | 0.253 INCHES MINIMUM AND 0.258 INCHES MAXIMUM |
| INSIDE LENGTH | 0.5633 INCHES MINIMUM AND 0.5638 INCHES MAXIMUM |
| INSIDE THICKNESS | 0.378 INCHES MINIMUM AND 0.383 INCHES MAXIMUM |
| MATERIAL AND LOCATION | BRASS, QQ-B-626, COMP 22, 1/2H BOX |
| SURFACE TREATMENT AND LOCATION | COPPER PLATE,MIL-C-14550 CLASS 4,AND SILVER PLATE,QQ-S-365 TYPE 1 GRADE A,BOX |
| CONTACT END BEVEL | INCLUDED |
| CAP | NOT INCLUDED |
| BRUSH QUANTITY ACCOMMODATED PER HOLDER | 1 |
| MANUFACTURERS CODE | 28528 |
| DESIGN CONTROL REFERENCE | 1362072G1 |
Restrictions/Controls & Freight Information | NSN 5977-01-096-6350
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063035 | SETS RADIO/TV AND RELATED ARTICLES |
| Less than car load rating | ||
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 758 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5977-01-096-6350
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
