NSN 5977-01-066-5323 48B111, 01-066-5323, 010665323
Product Details | ELECTRICAL CONTACT BRUSH
5977-01-066-5323 An item specifically designed to be used in the transfer of electrical energy to or from another conducting surface. Either the brush or the surface is continually moving during the transfer of energy. The brush is usually composed in part of some form of the element carbon. Includes: (1) a single brush either with or without an attached shunt (flexible wire lead) and/or a helical or flat type pressure spring; (2) a split brush composed of two or more pieces (wafers), which are used in place of one brush usually connected together by individual shunts to a common terminal; (3) paired brushes composed of two identical or non-identical brushes connected together by a common shunt either with or without pressure springs or connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like either with or without individual shunts; (4) multiple brushes composed of more than two identical or non-identical brushes without pressure springs connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like by individual shunts. Does not include moving contacts which make and slide past stationary contacts, but are stationary while the circuit is conducting, such as the sliding contacts on a rheostat or the stationary contact on a synchro. Excludes: CONTACT, ELECTRICAL; and CONTACT ASSEMBLY, ELECTRICAL.
Part Alternates: 48B111, 5977-01-066-5323, 01-066-5323, 5977010665323, 010665323
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 13 OCT 1978 | 01-066-5323 | 00302 ( BRUSH, ELECTRICAL CONTACT ) |
Cross Reference | NSN 5977-01-066-5323
Part Number | Cage Code | Manufacturer |
---|---|---|
48B111 | 31882 | PRO-DEX, INC. |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5977-01-066-5323
Technical Data | NSN 5977-01-066-5323
Characteristic | Specifications |
---|---|
STYLE DESIGNATOR | A1 ONE PIECE |
MATERIAL | CARBON |
BODY STYLE | B2 RECTANGULAR |
WIDTH | 0.100 INCHES NOMINAL |
THICKNESS | 0.100 INCHES NOMINAL |
LENGTH | 0.189 INCHES NOMINAL |
CONTACT FACE STYLE | D2 CONCAVE |
RADIUS | ANY ACCEPTABLE |

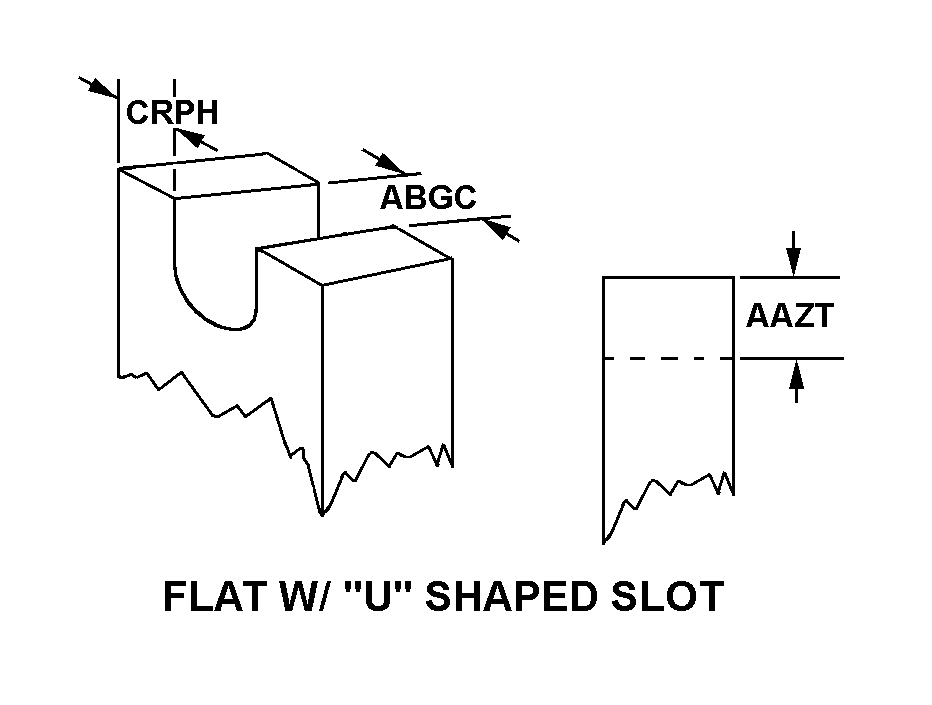

TOP STYLE | E11 FLAT WITH U SHAPED SLOT |
SLOT DEPTH | ANY ACCEPTABLE |
SLOT WIDTH | 0.038 INCHES NOMINAL |
OUTER EDGE TO SLOT EDGE DISTANCE | 0.031 INCHES NOMINAL |
SHUNT INSULATION PROVISION AND QUANTITY | 1 UNINSULATED |
SHUNT POSITION DESIGNATOR | 9 |
BRUSH SHUNT LENGTH | 0.750 INCHES NOMINAL SINGLE SHUNT |
MANUFACTURERS CODE | 31882 |
DESIGN CONTROL REFERENCE | 48B111 |
