NSN 5977-00-977-5490 A184051, A18405-1, 18A1PS1470
Product Details | ELECTRICAL CONTACT BRUSH HOLDER
5977-00-977-5490 A holder designed to accommodate and position a brush against a commutator or collector ring. Also includes items consisting of two or more brush holders (boxes) cast as an inseparable unit. May include facilities for applying pressure to the brush(es) and may also be furnished with the brush(es). See also HOLDER ASSEMBLY, ELECTRICAL CONTACT BRUSH.
Part Alternates: A184051, A18405-1, 18A1PS1470, 5977-00-977-5490, 00-977-5490, 5977009775490, 009775490
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-977-5490 | 02937 ( HOLDER, ELECTRICAL CONTACT BRUSH ) |
Drawings & Photos | NSN 5977-00-977-5490
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5977-00-977-5490
Technical Data | NSN 5977-00-977-5490
| Characteristic | Specifications |
|---|---|

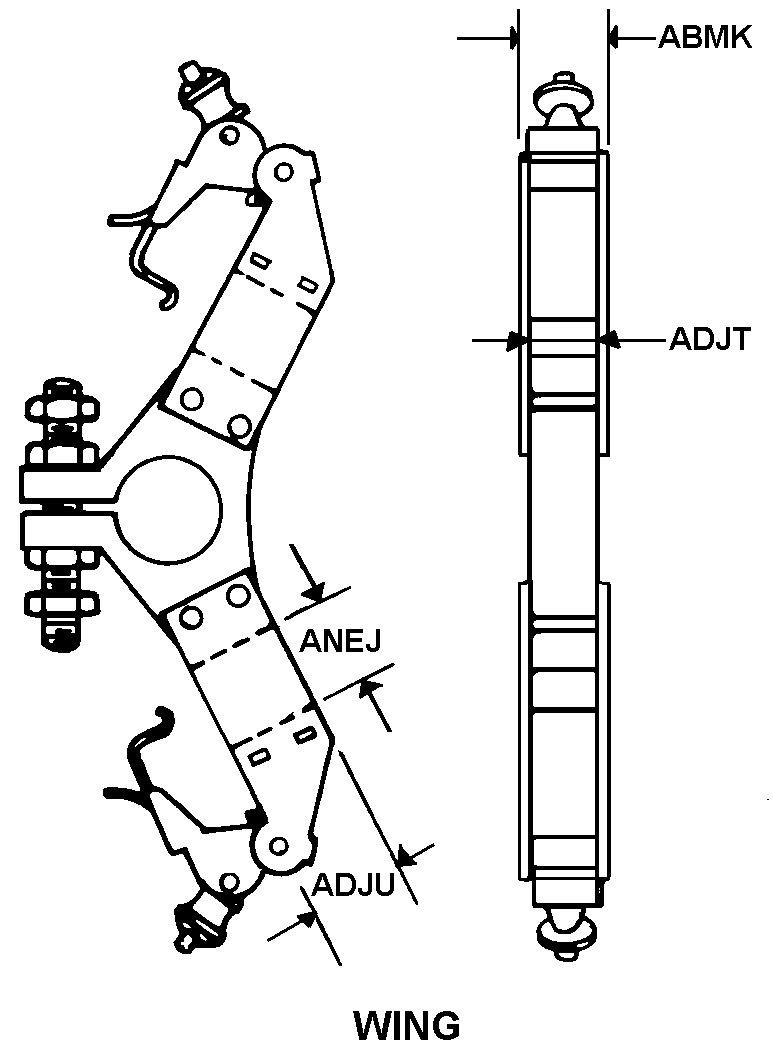

| STYLE DESIGNATOR | A39 WING |
| OVERALL WIDTH | 0.738 INCHES NOMINAL |
| INSIDE WIDTH | 0.498 INCHES NOMINAL |
| INSIDE LENGTH | 0.997 INCHES NOMINAL |
| INSIDE THICKNESS | 0.755 INCHES NOMINAL |
| MATERIAL AND LOCATION | BRASS BOX |
| CONTACT END BEVEL | NOT INCLUDED |
| CAP | NOT INCLUDED |
| MOUNTING FACILITY | BOLT AND SHAFT |
| MOUNTING FACILITY QUANTITY | 1 AND 1 |
| BRUSH PRESSURE SPRING TYPE ACCOMMODATED | SPIRAL TORSION |
| BRUSH SPRING ADJUSTABILITY | NONADJUSTABLE |
| BRUSH PRESSURE SPRING | INCLUDED |
| BRUSH QUANTITY ACCOMMODATED PER HOLDER | 2 |
| FURNISHED ITEMS AND QUANTITY | 3 GROUNDING SCREW AND 1 MACHINE SCREW |
Restrictions/Controls & Freight Information | NSN 5977-00-977-5490
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5977-00-977-5490
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
