NSN 5977-00-954-0555 4104483, 41-0448-3, 00-954-0555
Product Details | ELECTRICAL CONTACT BRUSH HOLDER
5977-00-954-0555 A holder designed to accommodate and position a brush against a commutator or collector ring. Also includes items consisting of two or more brush holders (boxes) cast as an inseparable unit. May include facilities for applying pressure to the brush(es) and may also be furnished with the brush(es). See also HOLDER ASSEMBLY, ELECTRICAL CONTACT BRUSH.
Part Alternates: 4104483, 41-0448-3, 5977-00-954-0555, 00-954-0555, 5977009540555, 009540555
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 MAY 1966 | 00-954-0555 | 02937 ( HOLDER, ELECTRICAL CONTACT BRUSH ) |
Drawings & Photos | NSN 5977-00-954-0555
Cross Reference | NSN 5977-00-954-0555
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 41-0448-3 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5977-00-954-0555
Related Products | NSN 5977-00-954-0555
Technical Data | NSN 5977-00-954-0555
| Characteristic | Specifications |
|---|---|

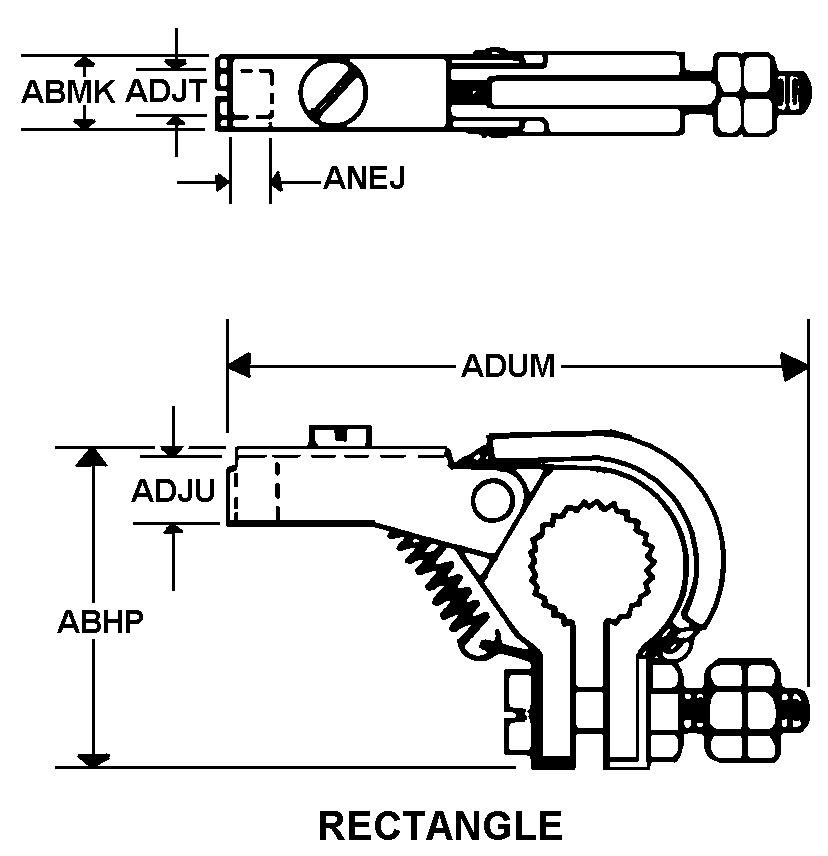

| STYLE DESIGNATOR | A25 RECTANGLE |
| OVERALL LENGTH | 1.750 INCHES NOMINAL |
| OVERALL WIDTH | 0.609 INCHES NOMINAL |
| MATERIAL AND LOCATION | BERYLLIUM COPPER BOX SUPPORTING |
| SURFACE TREATMENT AND LOCATION | NICKEL PLATED BOX SUPPORTING |
| CONTACT END BEVEL | INCLUDED |
| CAP | NOT INCLUDED |
| MOUNTING FACILITY | THREADED HOLES |
| MOUNTING FACILITY QUANTITY | 4 |
| BRUSH QUANTITY ACCOMMODATED PER HOLDER | 1 |
| MANUFACTURERS CODE | 72914 |
| DESIGN CONTROL REFERENCE | 41-0448-3 |
Restrictions/Controls & Freight Information | NSN 5977-00-954-0555
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063035 | SETS RADIO/TV AND RELATED ARTICLES |
| Less than car load rating | ||
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 758 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5977-00-954-0555
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
