NSN 5977-00-949-7720 5378663, 00-949-7720, 009497720
Product Details | ELECTRICAL CONTACT BRUSH HOLDER
5977-00-949-7720 A holder designed to accommodate and position a brush against a commutator or collector ring. Also includes items consisting of two or more brush holders (boxes) cast as an inseparable unit. May include facilities for applying pressure to the brush(es) and may also be furnished with the brush(es). See also HOLDER ASSEMBLY, ELECTRICAL CONTACT BRUSH.
Part Alternates: 5378663, 5977-00-949-7720, 00-949-7720, 5977009497720, 009497720
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 APR 1966 | 00-949-7720 | 02937 ( HOLDER, ELECTRICAL CONTACT BRUSH ) |
Drawings & Photos | NSN 5977-00-949-7720
Cross Reference | NSN 5977-00-949-7720
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5378663 | 72560 | GENERAL MOTORS CORP DELCO PRODUCTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5977-00-949-7720
Related Products | NSN 5977-00-949-7720
Technical Data | NSN 5977-00-949-7720
| Characteristic | Specifications |
|---|---|

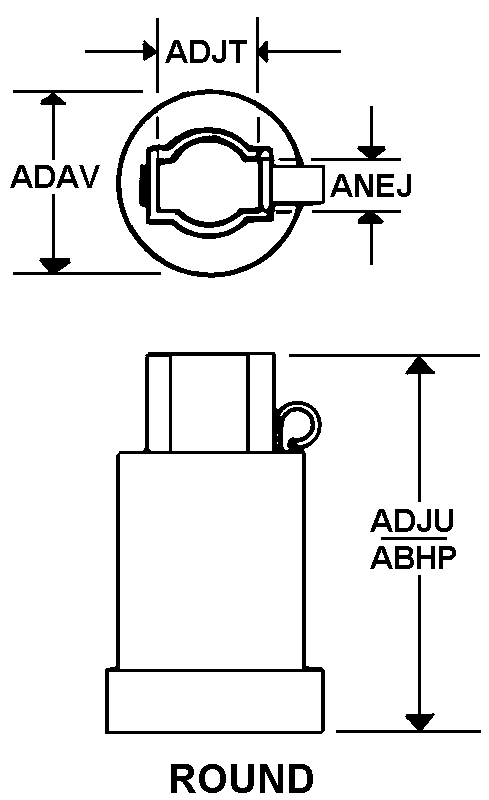

| STYLE DESIGNATOR | A6 ROUND |
| OVERALL LENGTH | 0.839 INCHES MINIMUM AND 0.849 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.589 INCHES MINIMUM AND 0.599 INCHES MAXIMUM |
| INSIDE WIDTH | 0.386 INCHES MINIMUM AND 0.388 INCHES MAXIMUM |
| INSIDE LENGTH | 0.839 INCHES MINIMUM AND 0.849 INCHES MAXIMUM |
| INSIDE THICKNESS | 0.191 INCHES MINIMUM AND 0.193 INCHES MAXIMUM |
| MATERIAL AND LOCATION | BRASS BOX |
| CONTACT END BEVEL | NOT INCLUDED |
| TOP THREAD LOCATION | INTERNAL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.438-20 UNF |
| THREAD LENGTH | 0.188 INCHES NOMINAL |
| CAP | NOT INCLUDED |
| MOUNTING FACILITY | PRESS FIT |
| MOUNTING FACILITY QUANTITY | 1 |
| BRUSH PRESSURE SPRING TYPE ACCOMMODATED | HELICAL COMPRESSION |
| BRUSH SPRING ADJUSTABILITY | ADJUSTABLE |
| BRUSH PRESSURE SPRING | NOT INCLUDED |
| BRUSH QUANTITY ACCOMMODATED PER HOLDER | 1 |
Restrictions/Controls & Freight Information | NSN 5977-00-949-7720
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063035 | SETS RADIO/TV AND RELATED ARTICLES |
| Less than car load rating | ||
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 758 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5977-00-949-7720
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
