Product Details | ELECTRICAL CONTACT BRUSH

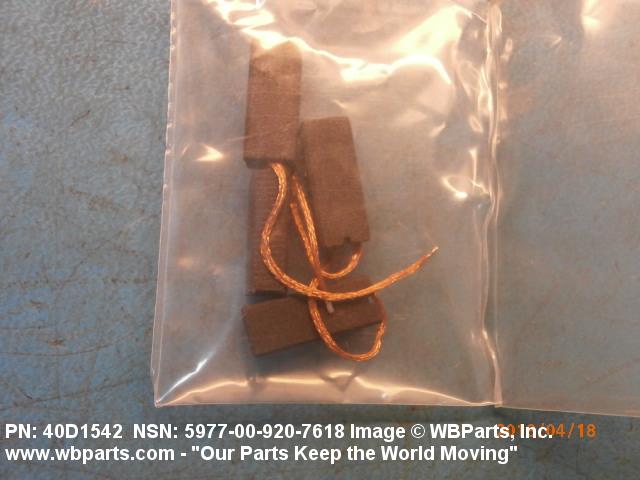

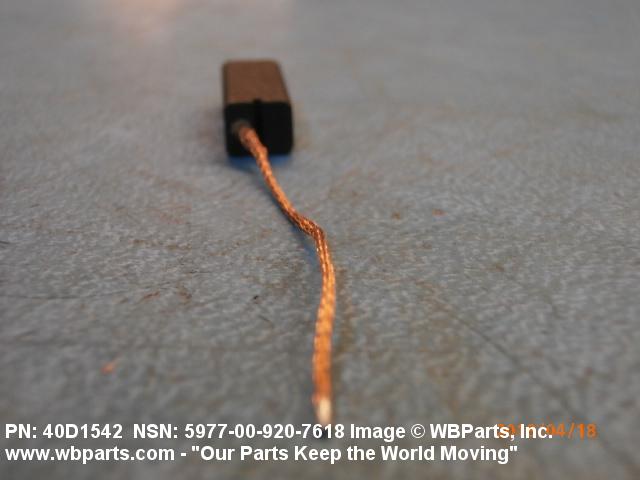

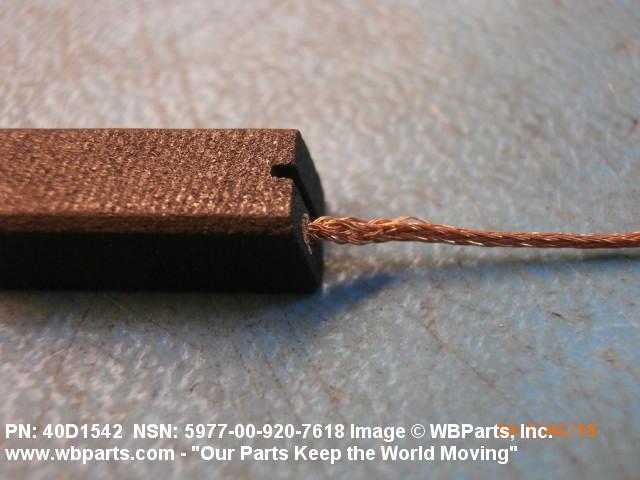

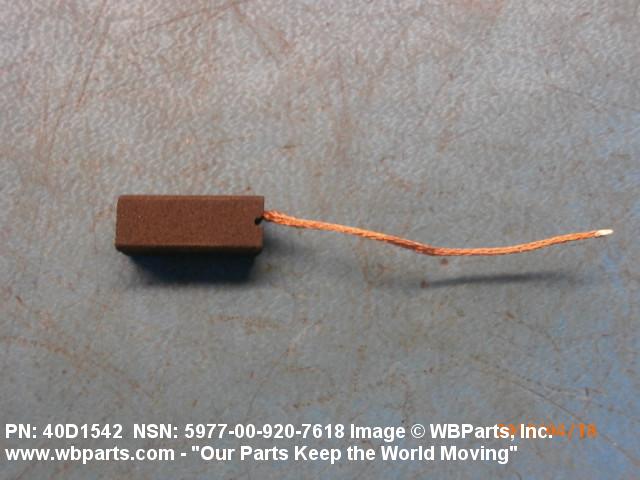

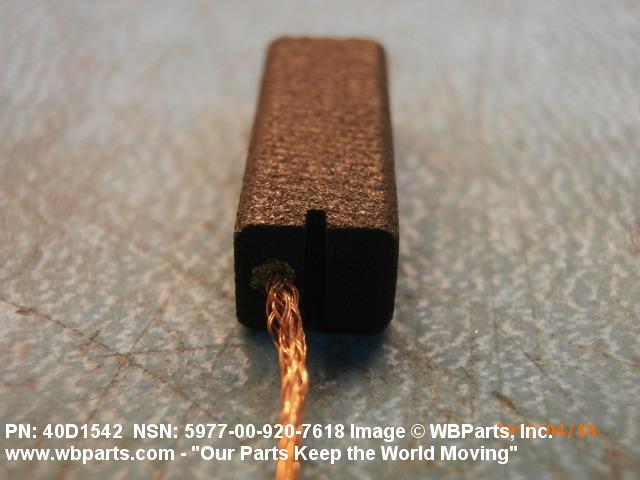

5977-00-920-7618 An item specifically designed to be used in the transfer of electrical energy to or from another conducting surface. Either the brush or the surface is continually moving during the transfer of energy. The brush is usually composed in part of some form of the element carbon. Includes: (1) a single brush either with or without an attached shunt (flexible wire lead) and/or a helical or flat type pressure spring; (2) a split brush composed of two or more pieces (wafers), which are used in place of one brush usually connected together by individual shunts to a common terminal; (3) paired brushes composed of two identical or non-identical brushes connected together by a common shunt either with or without pressure springs or connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like either with or without individual shunts; (4) multiple brushes composed of more than two identical or non-identical brushes without pressure springs connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like by individual shunts. Does not include moving contacts which make and slide past stationary contacts, but are stationary while the circuit is conducting, such as the sliding contacts on a rheostat or the stationary contact on a synchro. Excludes: CONTACT, ELECTRICAL; and CONTACT ASSEMBLY, ELECTRICAL.
Part Alternates: 10557447, 40D1541, 40D1542, 40D1651, 5977-00-920-7618, 00-920-7618, 5977009207618, 009207618
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-920-7618 | 00302 ( BRUSH, ELECTRICAL CONTACT ) |

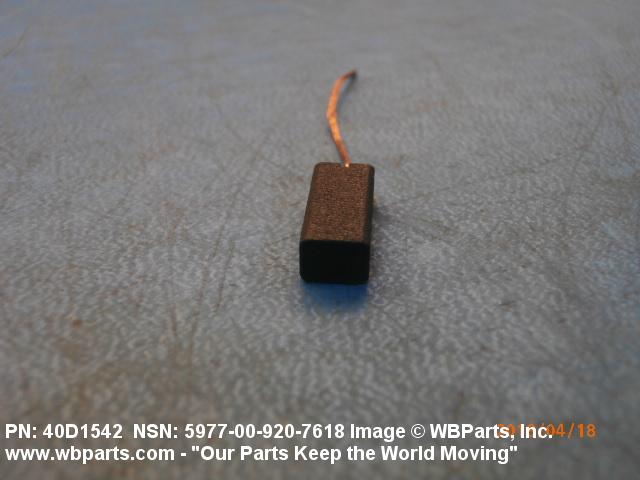

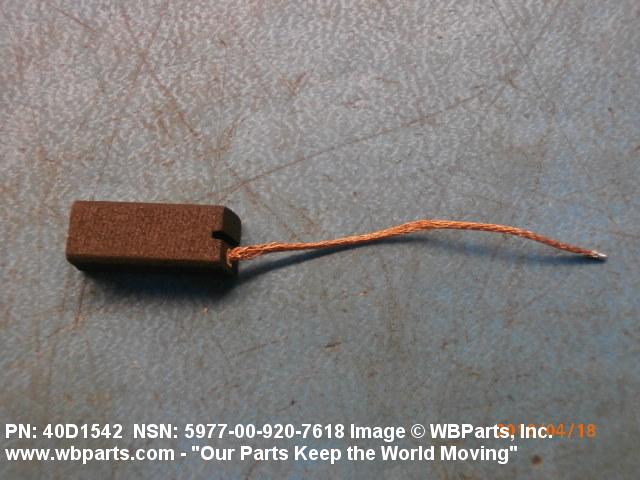

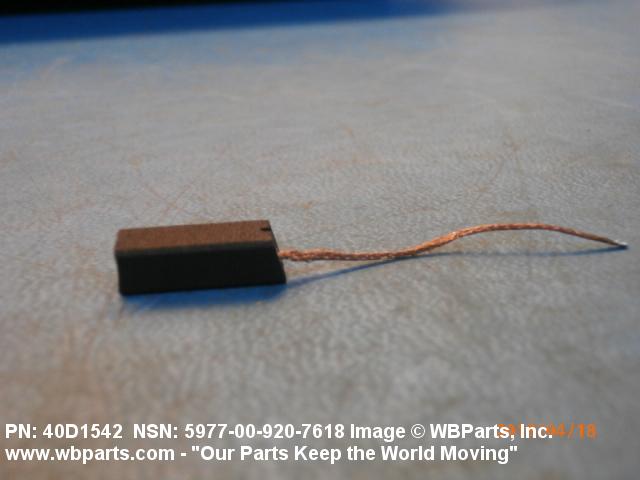

Drawings & Photos | NSN 5977-00-920-7618
Demand History | NSN 5977-00-920-7618
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5977-00-920-7618 | 2018-03-81 | 1 | Canada |
| 40D1542 | 2007-10-281 | 20 | Italy |
| 40D1542 | 2007-06-177 | 10 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5977-00-920-7618
Technical Data | NSN 5977-00-920-7618
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 ONE PIECE |
| MATERIAL | ELECTROGRAPHITIC |
| MATERIAL DOCUMENT AND CLASSIFICATION | PURE CARBON CO INC,GR 2755 MFR REF SINGLE MATERIAL RESPONSE AND STACKPOLE CARBON CO,GR 199 MFR REF SINGLE MATERIAL RESPONSE |
| BODY STYLE | B3 RECTANGULAR COMMUTATOR |

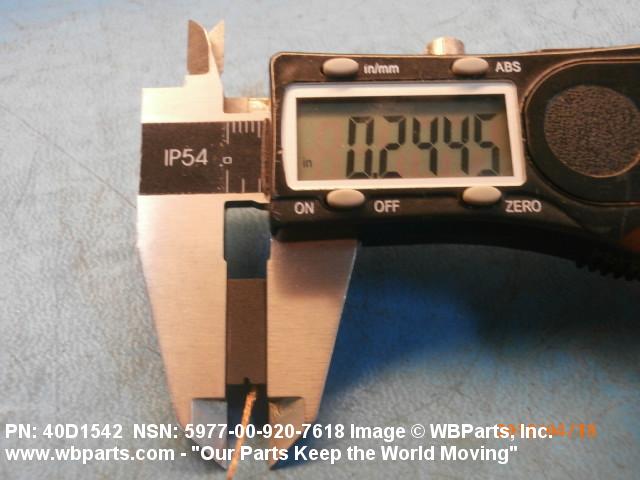

| WIDTH | 0.246 INCHES NOMINAL |

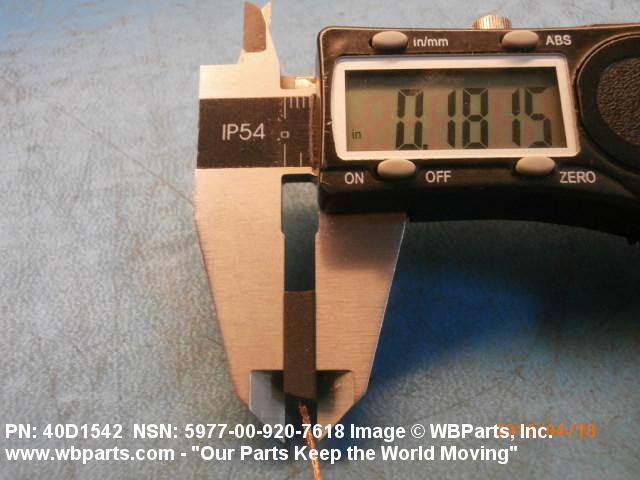

| THICKNESS | 0.183 INCHES NOMINAL |

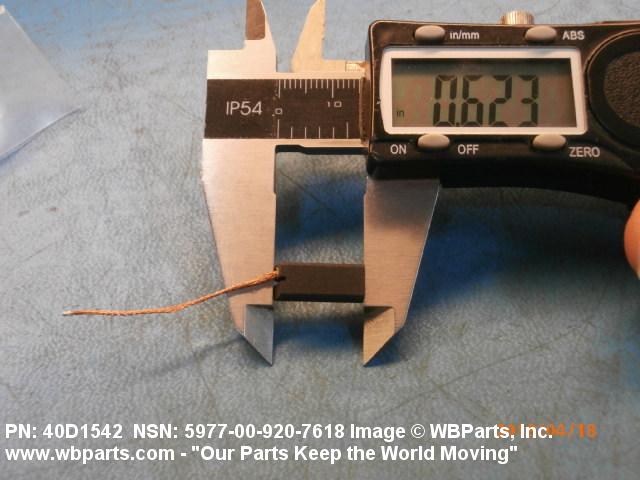

| LENGTH | 0.609 INCHES NOMINAL |
| CONTACT FACE STYLE | D2 CONCAVE |
| RADIUS | 0.312 INCHES NOMINAL |
| TOP STYLE | E16A BEVELED FRONT |
| ANGLE | 15.0 DEGREES NOMINAL |
| SHUNT INSULATION PROVISION AND QUANTITY | 1 UNINSULATED |
| SHUNT POSITION DESIGNATOR | 2 |

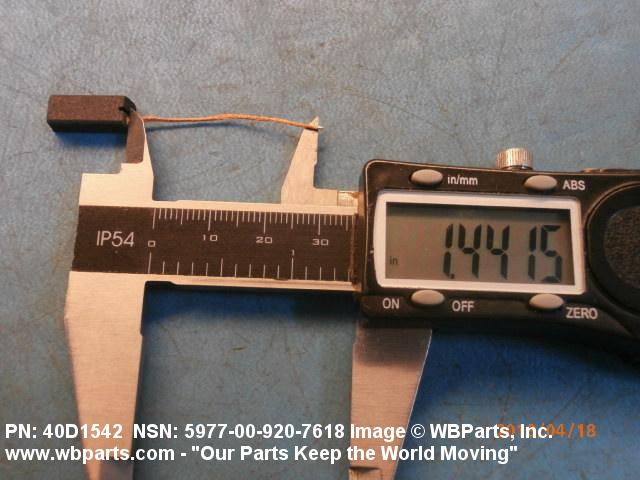

| BRUSH SHUNT LENGTH | 1.421 INCHES NOMINAL SINGLE SHUNT |
| TERMINAL TYPE AND QUANTITY | ANY ACCEPTABLE |
