5977-00-898-1529 An item specifically designed to be used in the transfer of electrical energy to or from another conducting surface. Either the brush or the surface is continually moving during the transfer of energy. The brush is usually composed in part of some form of the element carbon. Includes: (1) a single brush either with or without an attached shunt (flexible wire lead) and/or a helical or flat type pressure spring; (2) a split brush composed of two or more pieces (wafers), which are used in place of one brush usually connected together by individual shunts to a common terminal; (3) paired brushes composed of two identical or non-identical brushes connected together by a common shunt either with or without pressure springs or connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like either with or without individual shunts; (4) multiple brushes composed of more than two identical or non-identical brushes without pressure springs connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like by individual shunts. Does not include moving contacts which make and slide past stationary contacts, but are stationary while the circuit is conducting, such as the sliding contacts on a rheostat or the stationary contact on a synchro. Excludes: CONTACT, ELECTRICAL; and CONTACT ASSEMBLY, ELECTRICAL.

Part Alternates: 460A10032, 460A1-0032, 5977-00-898-1529, 00-898-1529, 5977008981529, 008981529

Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes

Supply Group (FSG) NSN Assign. NIIN
59 01 JAN 1962 00-898-1529

Drawings & Photos | NSN 5977-00-898-1529


Cross Reference | NSN 5977-00-898-1529

Part Number Cage Code Manufacturer
460A1-0032 75377 KURZ & ROOT GENERATOR COMPANY LLC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5977-00-898-1529

Technical Data | NSN 5977-00-898-1529

Characteristic Specifications
STYLE DESIGNATOR A2 SPLIT
MATERIAL CARBON
BODY STYLE B3 RECTANGULAR COMMUTATOR
WIDTH 0.719 INCHES NOMINAL
THICKNESS 0.500 INCHES NOMINAL
LENGTH 1.125 INCHES NOMINAL
CONTACT FACE STYLE D2 CONCAVE
RADIUS ANY ACCEPTABLE

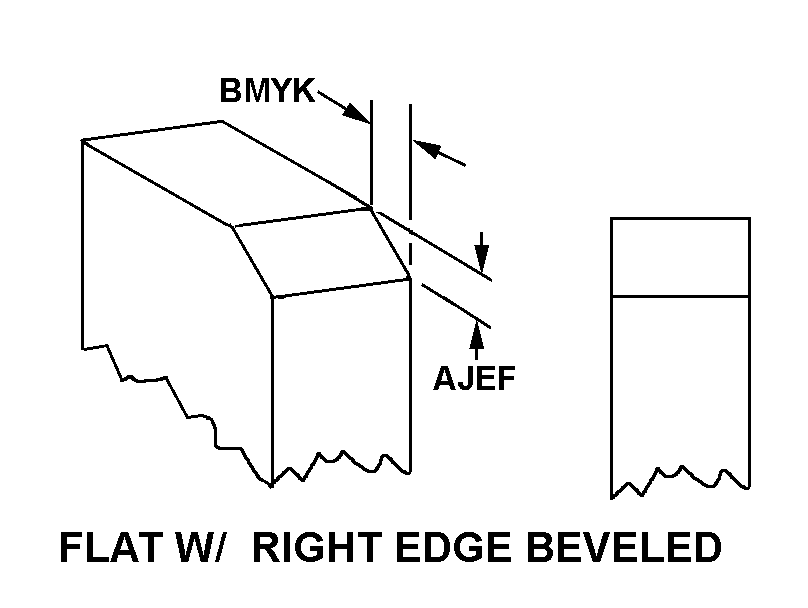

TOP STYLE E2B FLAT WITH RIGHT EDGE BEVELED
BEVEL DEPTH ANY ACCEPTABLE
BEVEL LENGTH ANY ACCEPTABLE
CLIP TYPE NEMA HAMMER TYPE A
SHUNT INSULATION PROVISION AND QUANTITY 2 INSULATED
SHUNT POSITION DESIGNATOR 7 AND 9
BRUSH SHUNT LENGTH 3.000 INCHES NOMINAL ALL SHUNTS
TERMINAL TYPE AND QUANTITY 1 STRAIGHT W/SLOT
TERMINAL SLOT WIDTH 0.219 INCHES NOMINAL
MANUFACTURERS CODE 75377
DESIGN CONTROL REFERENCE 460A1-0032
