NSN 5977-00-572-4538 GE26EX, GE-26-EX, 9407032G2
Product Details | ELECTRICAL CONTACT BRUSH HOLDER
5977-00-572-4538 A holder designed to accommodate and position a brush against a commutator or collector ring. Also includes items consisting of two or more brush holders (boxes) cast as an inseparable unit. May include facilities for applying pressure to the brush(es) and may also be furnished with the brush(es). See also HOLDER ASSEMBLY, ELECTRICAL CONTACT BRUSH.
Part Alternates: GE26EX, GE-26-EX, 9407032G2, 5977-00-572-4538, 00-572-4538, 5977005724538, 005724538
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-572-4538 | 02937 ( HOLDER, ELECTRICAL CONTACT BRUSH ) |
Drawings & Photos | NSN 5977-00-572-4538
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5977-00-572-4538
Technical Data | NSN 5977-00-572-4538
| Characteristic | Specifications |
|---|---|

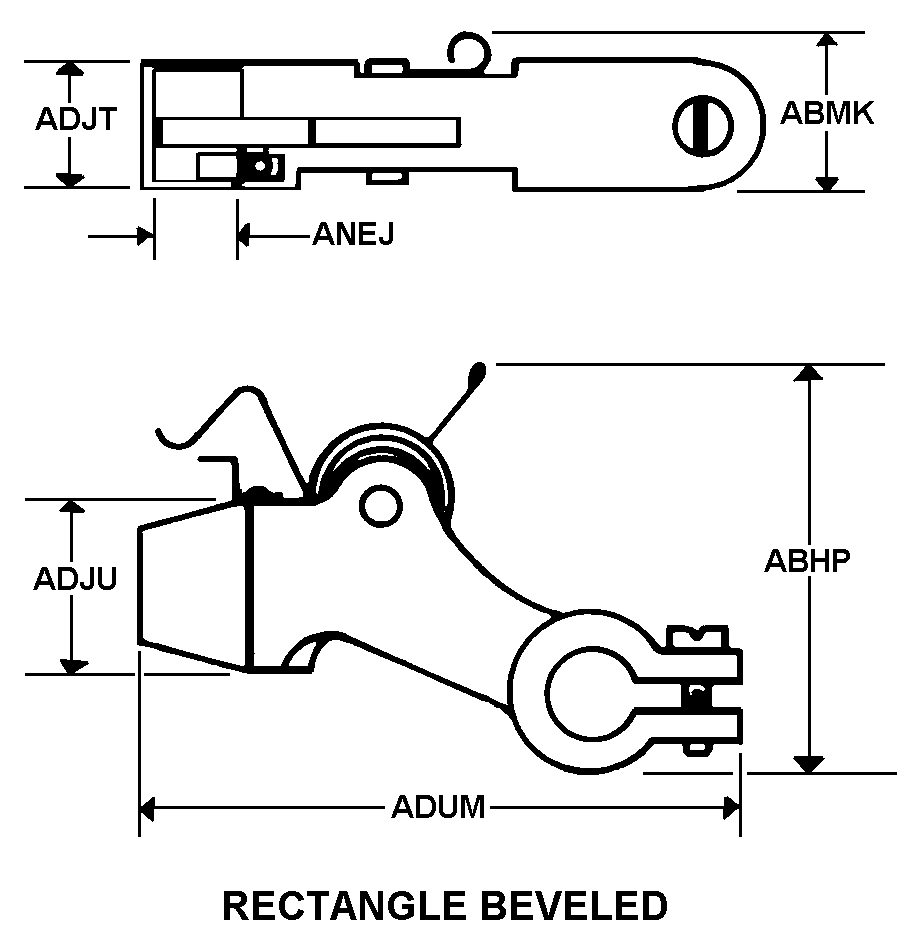

| STYLE DESIGNATOR | A27 RECTANGLE BEVELED |
| OVERALL LENGTH | 2.312 INCHES NOMINAL |
| OVERALL WIDTH | 1.438 INCHES NOMINAL |
| INSIDE WIDTH | 1.250 INCHES NOMINAL |
| INSIDE LENGTH | 0.875 INCHES NOMINAL |
| OVERALL THICKNESS | 3.000 INCHES NOMINAL |
| INSIDE THICKNESS | 0.250 INCHES NOMINAL |
| MATERIAL AND LOCATION | RED BRASS BOX |
| CONTACT END BEVEL | INCLUDED |
| TERMINAL TYPE | SCREW |
| TERMINAL QUANTITY | 1 |
| CAP | NOT INCLUDED |
| MOUNTING FACILITY | UNTHREADED HOLES |
| MOUNTING FACILITY QUANTITY | 1 |
| BRUSH PRESSURE SPRING TYPE ACCOMMODATED | SPIRAL TORSION |
| BRUSH SPRING ADJUSTABILITY | ADJUSTABLE |
| BRUSH PRESSURE SPRING | INCLUDED |
| BRUSH QUANTITY ACCOMMODATED PER HOLDER | 1 |
| MANUFACTURERS CODE | 0F0L9 |
| DESIGN CONTROL REFERENCE | GE-26-EX |
Restrictions/Controls & Freight Information | NSN 5977-00-572-4538
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
