NSN 5977-00-512-3728 G1302, G13-02, 10005
Product Details | ELECTRICAL CONTACT BRUSH HOLDER
5977-00-512-3728 A holder designed to accommodate and position a brush against a commutator or collector ring. Also includes items consisting of two or more brush holders (boxes) cast as an inseparable unit. May include facilities for applying pressure to the brush(es) and may also be furnished with the brush(es). See also HOLDER ASSEMBLY, ELECTRICAL CONTACT BRUSH.
Part Alternates: G1302, G13-02, 10005, 100-05, 5977-00-512-3728, 00-512-3728, 5977005123728, 005123728
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 01 JAN 1963 | 00-512-3728 | 02937 ( HOLDER, ELECTRICAL CONTACT BRUSH ) |
Demand History | NSN 5977-00-512-3728
Part Number | Request Date | QTY | Origin |
---|---|---|---|
10005 | 2006-11-312 | 1 | US |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5977-00-512-3728
Related Products | NSN 5977-00-512-3728
Technical Data | NSN 5977-00-512-3728
Characteristic | Specifications |
---|---|

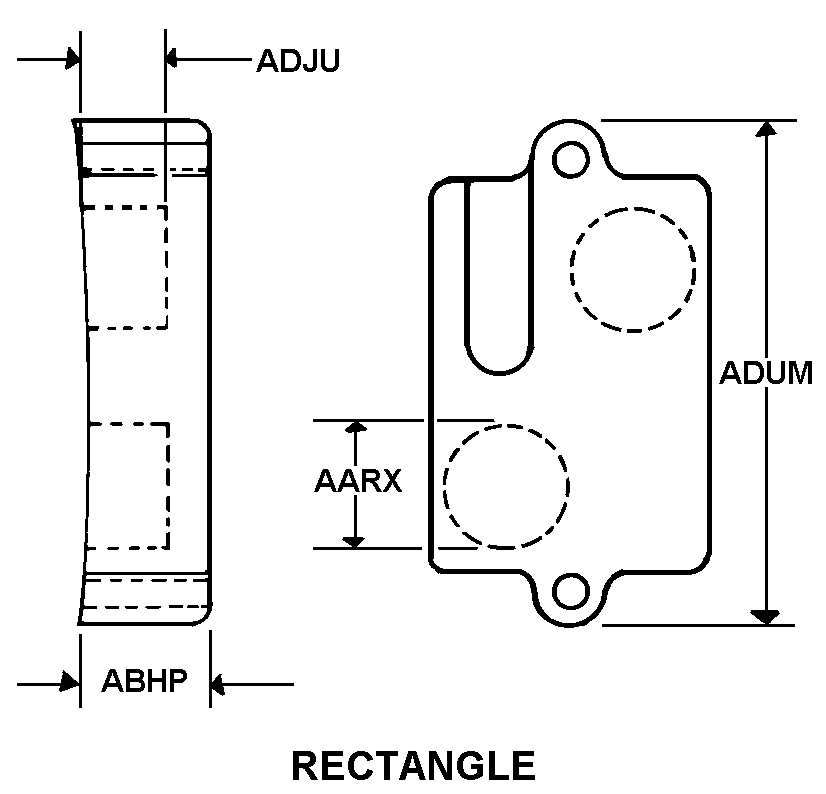

STYLE DESIGNATOR | A20 RECTANGLE |
INSIDE DIAMETER | 0.169 INCHES NOMINAL |
OVERALL LENGTH | 0.050 INCHES NOMINAL |
OVERALL WIDTH | 0.500 INCHES NOMINAL |
OVERALL THICKNESS | 4.875 INCHES NOMINAL |
MATERIAL AND LOCATION | BRONZE BOX |
CONTACT END BEVEL | NOT INCLUDED |
CAP | NOT INCLUDED |
BRUSH QUANTITY ACCOMMODATED PER HOLDER | 2 |
MANUFACTURERS CODE | 76185 |
DESIGN CONTROL REFERENCE | G13-02 |
Restrictions/Controls & Freight Information | NSN 5977-00-512-3728
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 063035 | SETS RADIO/TV AND RELATED ARTICLES |
Less than car load rating | ||
Less than truck load rating | G | 125.0 |
Water commodity Code | 758 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5977-00-512-3728
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
