5977-00-508-0544 An item specifically designed to be used in the transfer of electrical energy to or from another conducting surface. Either the brush or the surface is continually moving during the transfer of energy. The brush is usually composed in part of some form of the element carbon. Includes: (1) a single brush either with or without an attached shunt (flexible wire lead) and/or a helical or flat type pressure spring; (2) a split brush composed of two or more pieces (wafers), which are used in place of one brush usually connected together by individual shunts to a common terminal; (3) paired brushes composed of two identical or non-identical brushes connected together by a common shunt either with or without pressure springs or connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like either with or without individual shunts; (4) multiple brushes composed of more than two identical or non-identical brushes without pressure springs connected by individual shunts to a common terminal, or with pressure springs and connected to a common bar, bracket or the like by individual shunts. Does not include moving contacts which make and slide past stationary contacts, but are stationary while the circuit is conducting, such as the sliding contacts on a rheostat or the stationary contact on a synchro. Excludes: CONTACT, ELECTRICAL; and CONTACT ASSEMBLY, ELECTRICAL.

Part Alternates: YB23711018G1, YB2371-1018G1, YB23711018G1REV0, YB2371-1018G1REV0, 5977-00-508-0544, 00-508-0544, 5977005080544, 005080544

Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes

Supply Group (FSG) NSN Assign. NIIN
59 01 JAN 1963 00-508-0544

Drawings & Photos | NSN 5977-00-508-0544


Cross Reference | NSN 5977-00-508-0544

Part Number Cage Code Manufacturer
YB2371-1018G1 49956 RAYTHEON COMPANY DBA RAYTHEON
YB2371-1018G1REV0 49956 RAYTHEON COMPANY DBA RAYTHEON

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5977-00-508-0544

Technical Data | NSN 5977-00-508-0544

Characteristic Specifications
STYLE DESIGNATOR A1 ONE PIECE
MATERIAL PHOSPHOR BRONZE
MATERIAL DOCUMENT AND CLASSIFICATION QQ-B-746,COMP A FED SPEC SINGLE MATERIAL RESPONSE
BODY STYLE B5 WEDGE-SHAPE COMMUTATOR
WIDTH 0.312 INCHES NOMINAL
LENGTH 1.937 INCHES NOMINAL
CONTACT FACE STYLE D5 FLAT

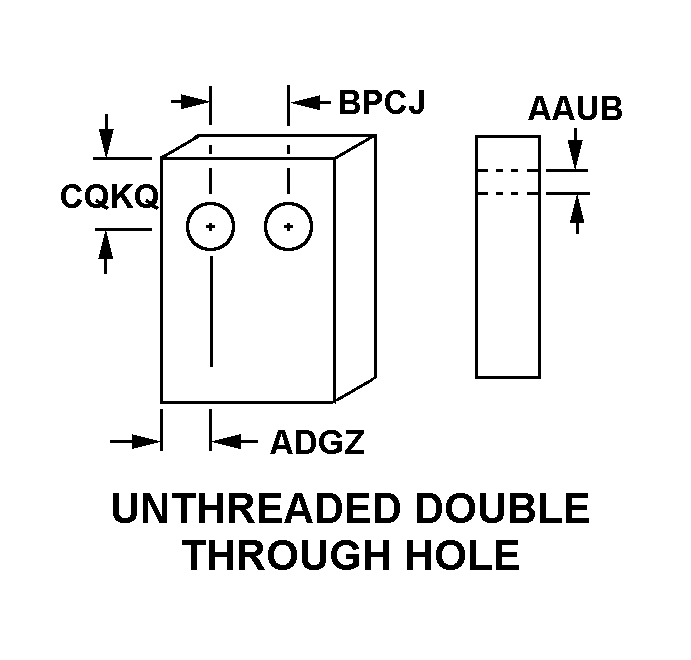

BASIC SHAPE STYLE F4 UNTHREADED DOUBLE THROUGH HOLE
HOLE DIAMETER 0.149 INCHES NOMINAL
DISTANCE FROM CENTER OF HOLE TO OUTSIDE EDGE ANY ACCEPTABLE
DISTANCE BETWEEN HOLE CENTERS ANY ACCEPTABLE
DISTANCE FROM BRUSH TOP TO HOLE CENTERLINE ANY ACCEPTABLE
SPECIAL FEATURES THICKNESS 0.437 IN.
MANUFACTURERS CODE 49956
DESIGN CONTROL REFERENCE YB2371-1018G1
