NSN 5977-00-284-8357 M007026946, S26946, 26946
Product Details | ELECTRICAL CONTACT BRUSH HOLDER
5977-00-284-8357 A holder designed to accommodate and position a brush against a commutator or collector ring. Also includes items consisting of two or more brush holders (boxes) cast as an inseparable unit. May include facilities for applying pressure to the brush(es) and may also be furnished with the brush(es). See also HOLDER ASSEMBLY, ELECTRICAL CONTACT BRUSH.
Part Alternates: M007026946, S26946, 26946, 3384702, 5977-00-284-8357, 00-284-8357, 5977002848357, 002848357
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-284-8357 | 02937 ( HOLDER, ELECTRICAL CONTACT BRUSH ) |
Drawings & Photos | NSN 5977-00-284-8357
Cross Reference | NSN 5977-00-284-8357
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 26946 | 24975 | PRESTOLITE ELECTRIC INCORPORATED |
| 26946 | 35510 | PRESTOLITE ELECTRIC INC |
| 3384702 | 24617 | GENERAL MOTORS CORP |
| 3384702 | 55380 | HATCH & KIRK, INC. DIV HATCH & KIRK INC |
| 3384702 | 72915 | GENERAL MOTORS CORP ELECTRO-MOTIVE DIV |
| M007026946 | 24975 | PRESTOLITE ELECTRIC INCORPORATED |
| M007026946 | 35510 | PRESTOLITE ELECTRIC INC |
| S26946 | 24975 | PRESTOLITE ELECTRIC INCORPORATED |
| S26946 | 35510 | PRESTOLITE ELECTRIC INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5977-00-284-8357
Technical Data | NSN 5977-00-284-8357
| Characteristic | Specifications |
|---|---|

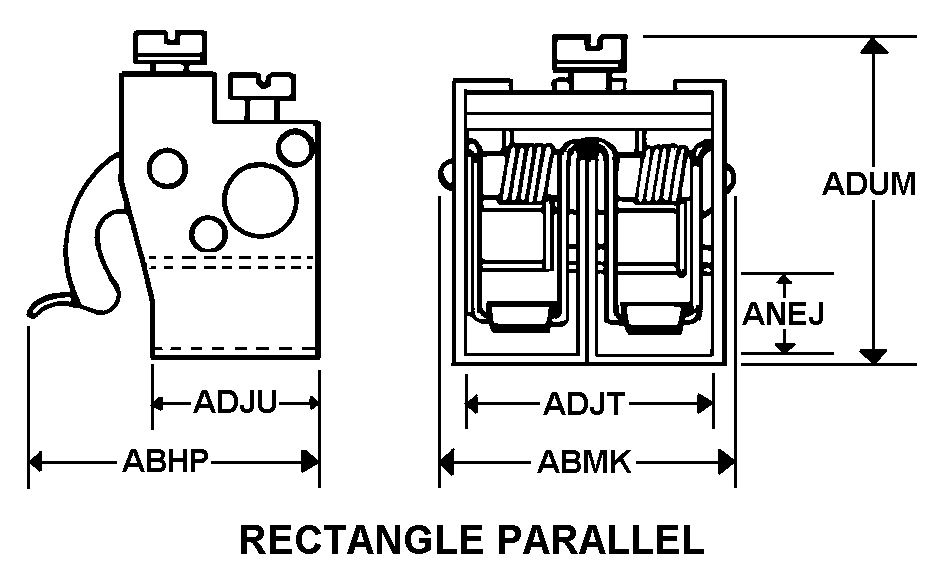

| STYLE DESIGNATOR | A30 RECTANGLE PARALLEL |
| OVERALL LENGTH | 0.812 INCHES NOMINAL |
| OVERALL WIDTH | 2.062 INCHES NOMINAL |
| INSIDE WIDTH | 0.812 INCHES NOMINAL |
| INSIDE LENGTH | 0.625 INCHES NOMINAL |
| OVERALL THICKNESS | 1.750 INCHES NOMINAL |
| INSIDE THICKNESS | 0.375 INCHES NOMINAL |
| MATERIAL AND LOCATION | BRASS BOX |
| CONTACT END BEVEL | NOT INCLUDED |
| TERMINAL TYPE | SCREW |
| TERMINAL QUANTITY | 4 |
| CAP | NOT INCLUDED |
| MOUNTING FACILITY | THREADED HOLES |
| MOUNTING FACILITY QUANTITY | 2 |
| BRUSH PRESSURE SPRING TYPE ACCOMMODATED | HELICAL TORSION |
| BRUSH SPRING ADJUSTABILITY | ADJUSTABLE |
| BRUSH PRESSURE SPRING | INCLUDED |
| BRUSH QUANTITY ACCOMMODATED PER HOLDER | 2 |
| III END ITEM IDENTIFICATION | W/S; FORRESTAL CLASS CV, FIRE PUMPS |
Restrictions/Controls & Freight Information | NSN 5977-00-284-8357
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063035 | SETS RADIO/TV AND RELATED ARTICLES |
| Less than car load rating | ||
| Less than truck load rating | G | 125.0 |
| Water commodity Code | 758 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5977-00-284-8357
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
