Product Details | ELECTRICAL CONTACT BRUSH HOLDER ASSEMBLY

5977-00-225-0793 An item consisting of two or more HOLDER, ELECTRICAL CONTACT BRUSH on a common mounting or mounted on each other, or one HOLDER, ELECTRICAL CONTACT BRUSH mounted on a bracket. May include facilities for applying pressure to the brush(es) and may also be furnished with the brush(es). For items consisting of two or more brush holders (boxes) cast as an inseparable unit, see HOLDER, ELECTRICAL CONTACT BRUSH. See also RING, HOLDER, ELECTRICAL BRUSH.

Part Alternates: 13948301, 139483-01, 5977-00-225-0793, 00-225-0793, 5977002250793, 002250793

Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes

Supply Group (FSG) NSN Assign. NIIN
59 01 JAN 1961 00-225-0793

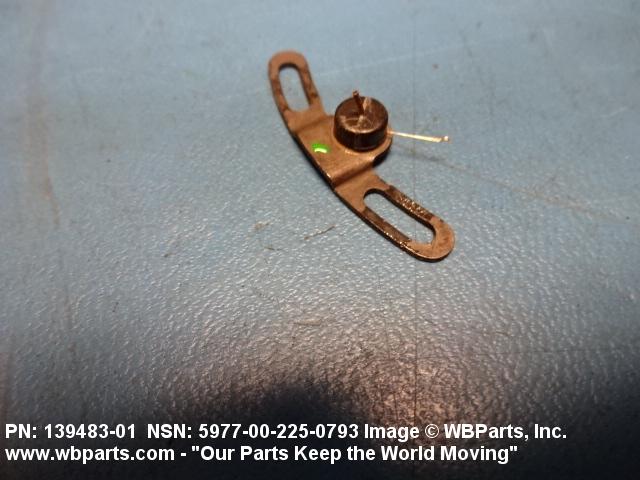

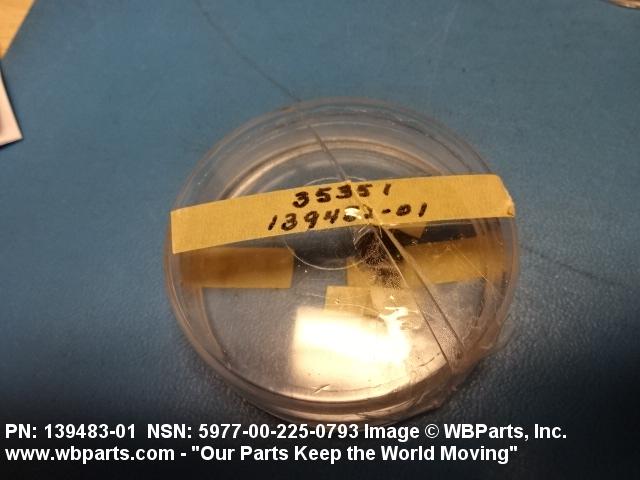

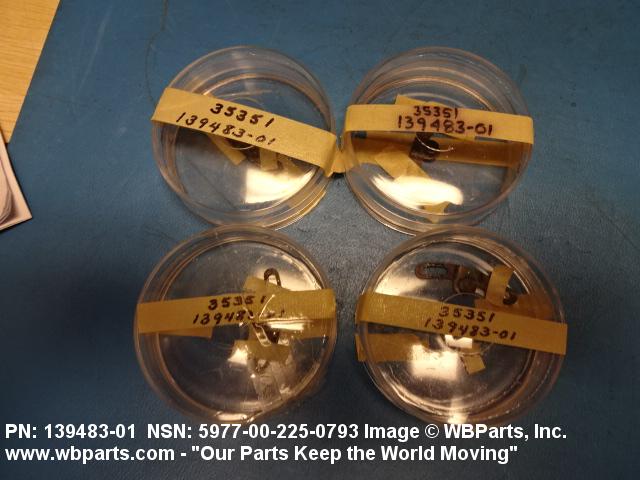

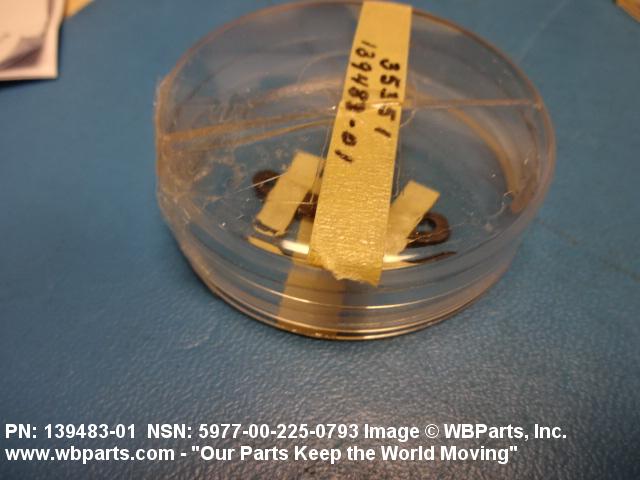

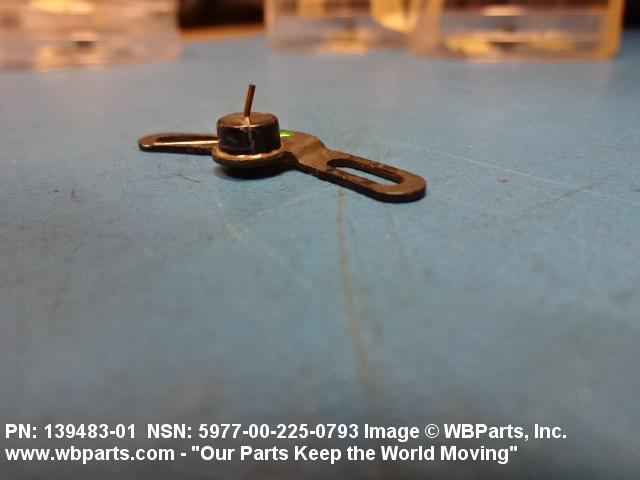

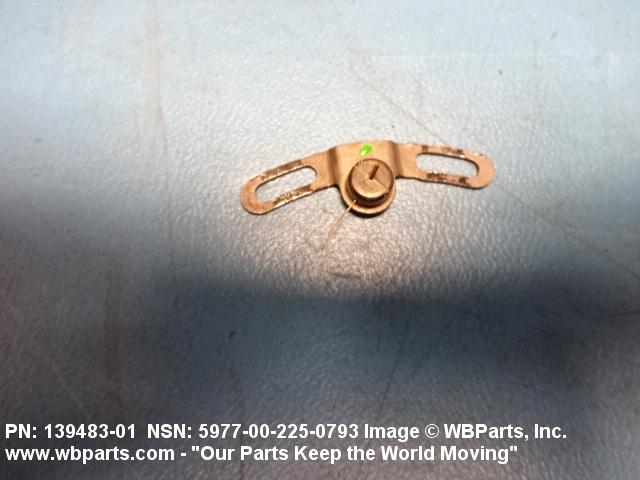

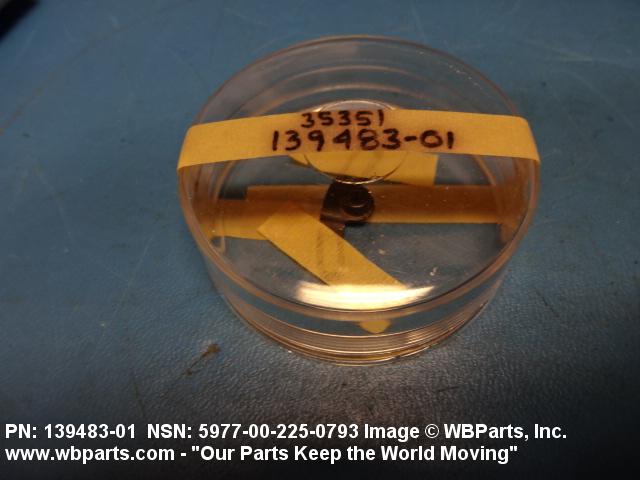

Drawings & Photos | NSN 5977-00-225-0793


Demand History | NSN 5977-00-225-0793

Part Number Request Date QTY Origin
5977-00-225-0793 2019-03-65 4 United States
5977-00-225-0793 2018-09-256 4 DIBBS
5977-00-225-0793 2018-02-57 2 DIBBS
5977-00-225-0793 2018-02-42 2 DIBBS
5977-00-225-0793 2017-12-363 1 DIBBS
5977-00-225-0793 2017-12-360 2 DIBBS
5977-00-225-0793 2017-10-302 1 DIBBS
5977-00-225-0793 2017-07-204 4 DIBBS
5977-00-225-0793 2011-10-279 4 United States
5977-00-225-0793 2011-09-249 5 DIBBS
5977-00-225-0793 2009-08-222 5 DIBBS
5977-00-225-0793 2008-05-146 1 DIBBS

Cross Reference | NSN 5977-00-225-0793

Part Number Cage Code Manufacturer
139483-01 35351 GE AVIATION SYSTEMS LLC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5977-00-225-0793

Technical Data | NSN 5977-00-225-0793

Characteristic Specifications
CONTACT END BEVEL NOT INCLUDED
HOLDER QUANTITY PER ASSEMBLY 1
HOLDER POSITION ADJUSTABILITY NONADJUSTABLE
INTEGRAL POSITIONING SLOTS INCLUDED
TOTAL BRUSH QUANTITY ACCOMMODATED 2
BRUSH QUANTITY ACCOMMODATED PER HOLDER 2
FURNISHED ITEMS AND QUANTITY 2 BRUSH
MANUFACTURERS CODE 35351
DESIGN CONTROL REFERENCE 139483-01

Restrictions/Controls & Freight Information | NSN 5977-00-225-0793

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 062010 FITTINGS CONDUIT NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 658 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5977-00-225-0793

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation CodeEHSX:ELECTRONIC COMPONENTS
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
