NSN 5975-01-609-7024 BACS31H1B , 01-609-7024, 016097024
Product Details | CABLE HANGER
5975-01-609-7024 A metallic or nonmetallic item of various shapes, designed to position, suspend, support and/or secure electrical cable(s) to utility poles, bulkheads, messenger wires or other supporting surfaces. It may be fastened to the structure by means of rod(s), bolts(s), screw(s) and the like. Excludes CLAMP (as modified); HANGER, WIRE STRAND; BRACKET PIPE; and SUPPORT, ELECTRICAL CABLE.
Part Alternates: BACS31H1B , 5975-01-609-7024, 01-609-7024, 5975016097024, 016097024
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 2012214 | 01-609-7024 | 02941 ( HANGER, CABLE ) |

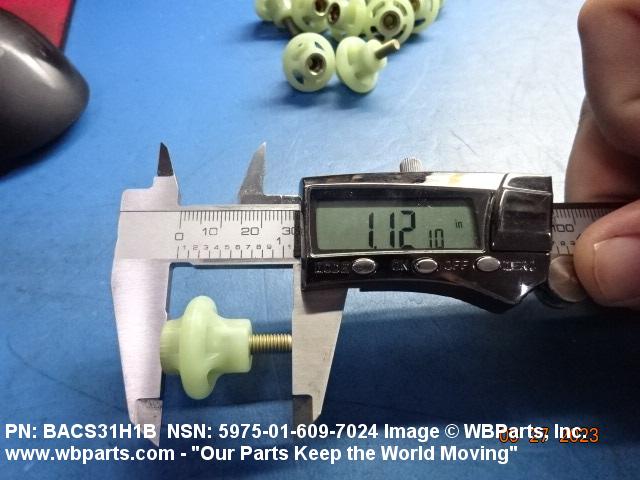

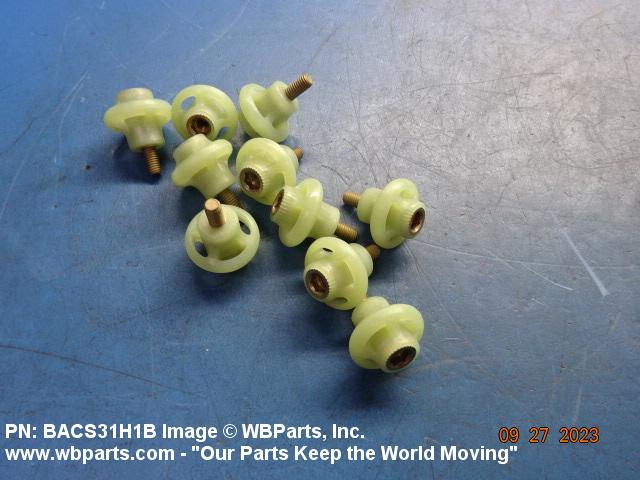

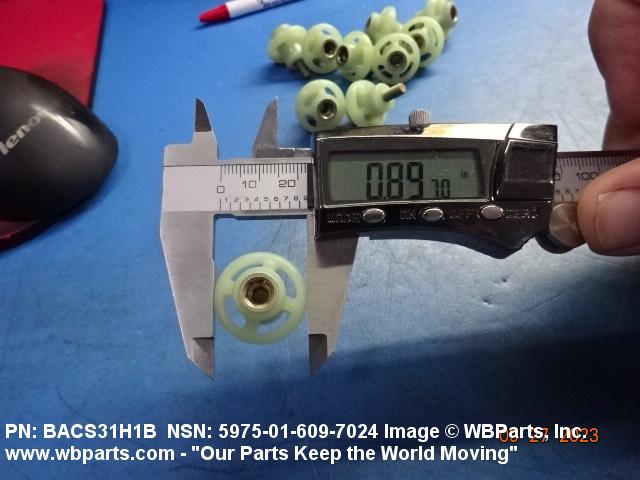

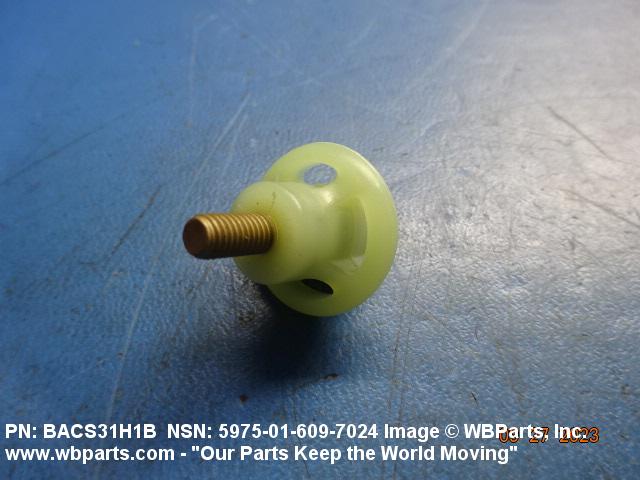

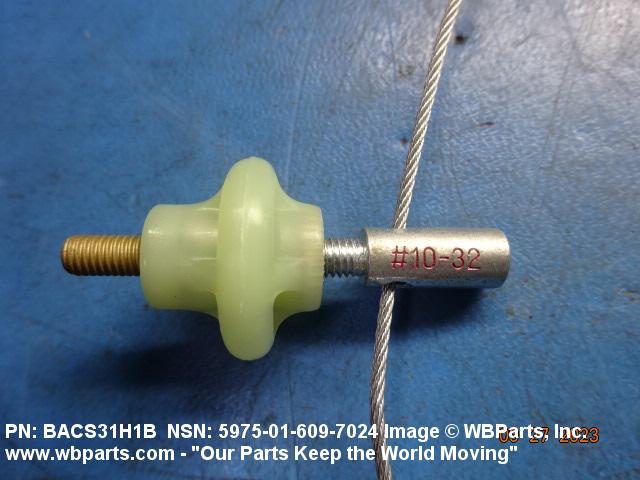

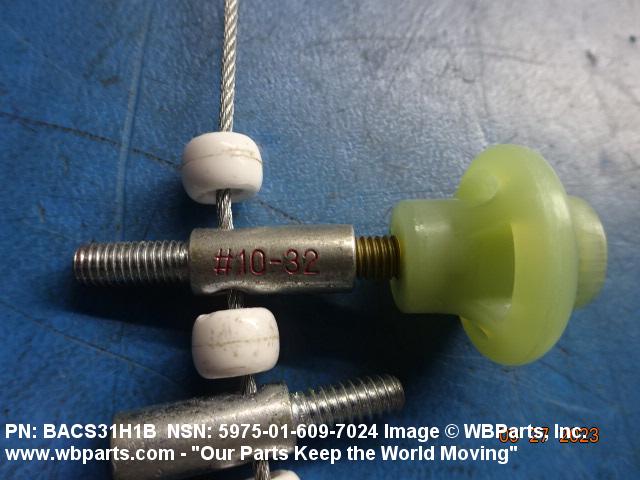

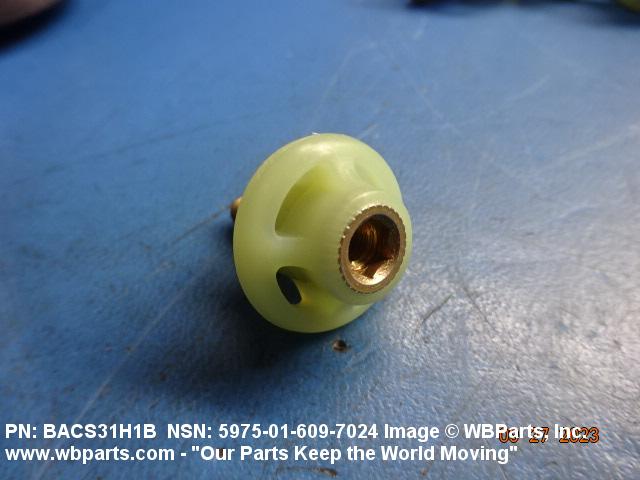

Drawings & Photos | NSN 5975-01-609-7024
Demand History | NSN 5975-01-609-7024
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACS31H1B | 2024-05-137 | 20 | Denmark |
| BACS31H1B | 2023-09-249 | 25 | Denmark |
Cross Reference | NSN 5975-01-609-7024
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACS31H1B | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-01-609-7024
Related Products | NSN 5975-01-609-7024
Technical Data | NSN 5975-01-609-7024
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | POLE TOP |
| MATERIAL AND LOCATION | POLYAMIDE NYLON BAND/SADDLE AND |
| SURFACE TREATMENT AND LOCATION | CADMIUM PLATED INSERT |
| SPECIAL FEATURES | STUD MATERIAL IS ALUMINUM COATED TITANIUM, INSERT THREAD SIZE .1900-32UNJF-3A |
| III END ITEM IDENTIFICATION | E-3 BLOCK 404 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SUPPORT, WIRE HARNESS MOUNTING, RING-POST |
Restrictions/Controls & Freight Information | NSN 5975-01-609-7024
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 160270 | POLE/TRANS LINE CONSTRUCTN MATERIAL |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-609-7024
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
