NSN 5975-01-595-4951 VD4802991020, VD4802-99-1020, 01-595-4951
Product Details | INTERIOR CABLE RACK
5975-01-595-4951 An open frame structure primarily designed to support electrical cables in buildings and shelters. Its purpose is to provide, by itself or by joining to similar structures, a path or runway for cable which may connect two or more pieces of electrical equipment. It does not include items designed to hold a single cable. See also RACK, CABLE, UNDERGROUND; and HANGER, CABLE.
Part Alternates: VD4802991020, VD4802-99-1020, 5975-01-595-4951, 01-595-4951, 5975015954951, 015954951
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 28 APR 2011 | 01-595-4951 | 08082 ( RACK, CABLE, INTERIOR ) |
Demand History | NSN 5975-01-595-4951
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5975-01-595-4951 | 2018-09-268 | 6 | us |
VD4802991020 | 2017-10-303 | 25 | United States |
VD4802991020 | 2017-09-270 | 1 | us |
VD4802991020 | 2017-09-270 | 5 | us |
5975-01-595-4951 | 2017-08-215 | 20 | US |
VD4802991020 | 2013-04-95 | 12 | US |
Cross Reference | NSN 5975-01-595-4951
Part Number | Cage Code | Manufacturer |
---|---|---|
VD4802-99-1020 | 06666 | GENERAL DEVICES CO INC |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5975-01-595-4951
Related Products | NSN 5975-01-595-4951
Technical Data | NSN 5975-01-595-4951
Characteristic | Specifications |
---|---|

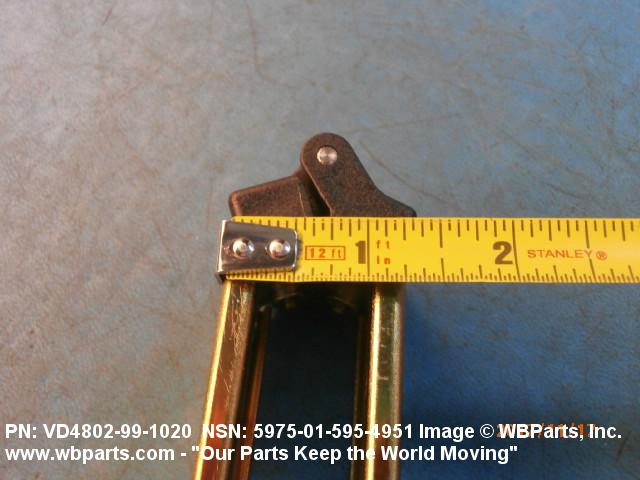

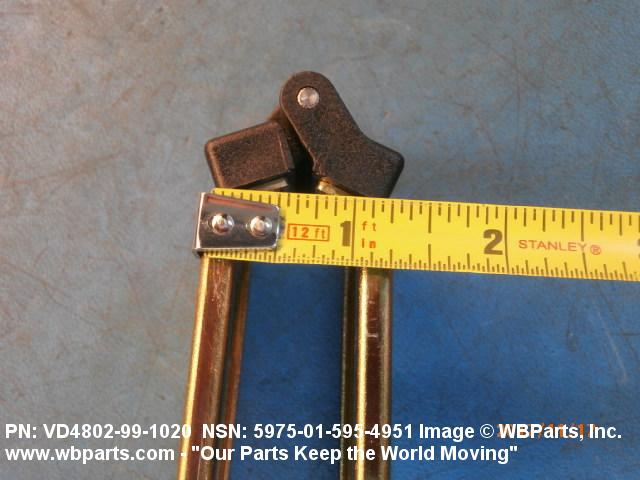

CLEARANCE WIDTH | 1.200 INCHES NOMINAL |
MATERIAL | STEEL |

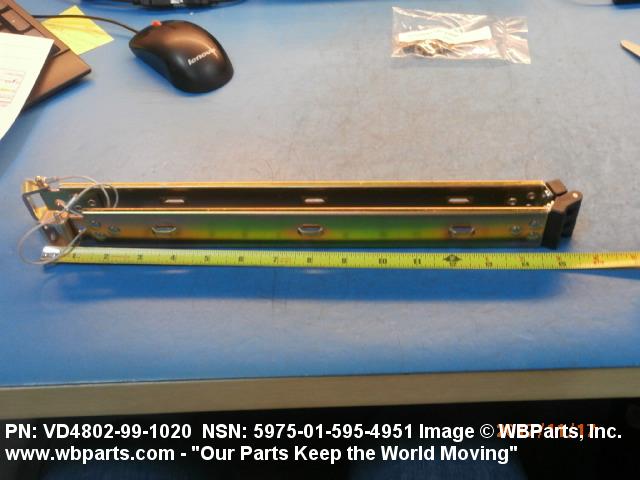

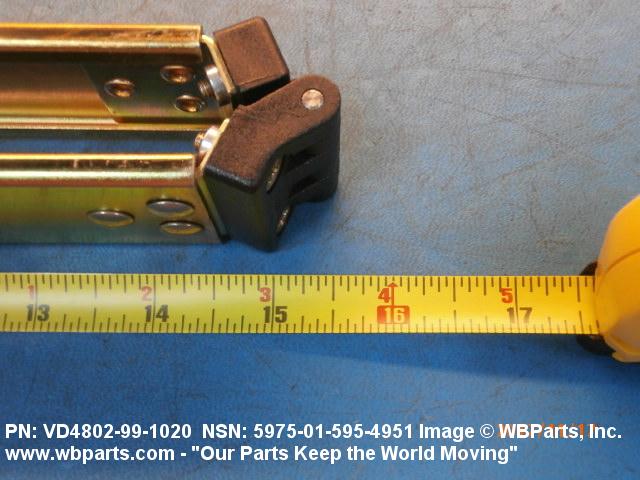

OVERALL LENGTH | 15.550 INCHES NOMINAL |
SURFACE TREATMENT | ZINC |
MOUNTING PROVISION | BRACKET |

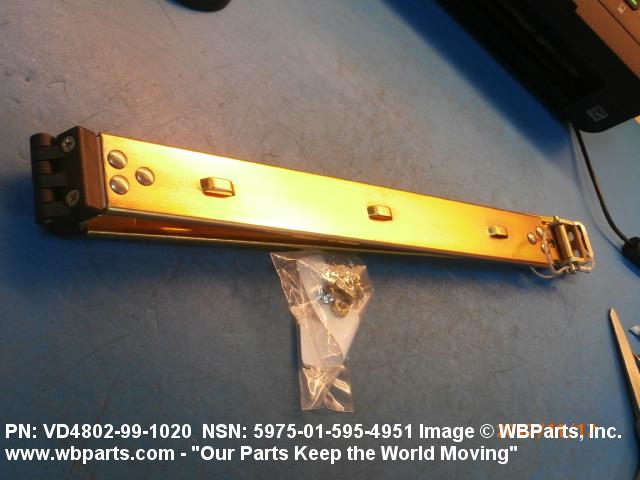

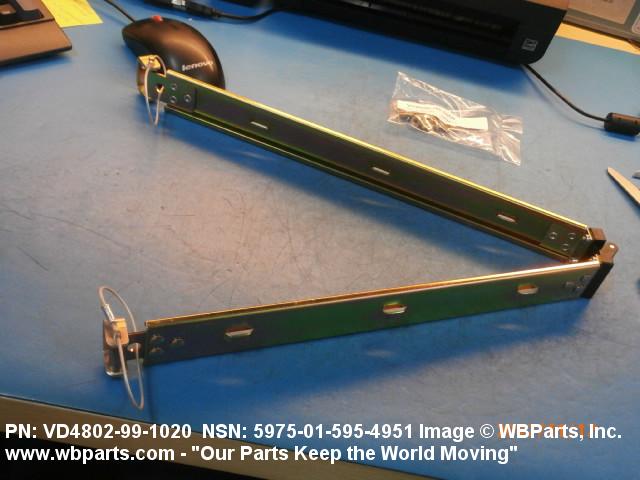

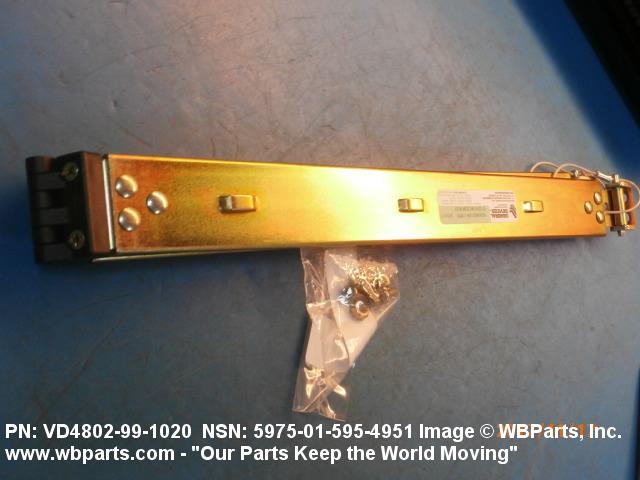

SPECIAL FEATURES | MODIFIED MODEL D-329 P/N VD4802-00-0000, INCLUDES PLASTIC/NYLON HINGE AND 2 QUICK RELEASE PINS. 1 ARM 15.550 INCHES LONG, 2ND ARM 13.000 INCHES LONG |
MOUNTING FACILITY QUANTITY | 4 |
STYLE DESIGNATOR | BRACKET TYPE |
OVERALL HEIGHT | 1.500 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5975-01-595-4951
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 164390 | RACKS NOI |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 72D | unknown |
Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-595-4951
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
