NSN 5975-01-584-9663 M24758-15 D B, M2475815DB, 01-584-9663
Product Details | STUFFING TUBE ADAPTER
5975-01-584-9663 A threaded or unthreaded item designed to mate with the mounting threads or mounting surfaces of a STUFFING TUBE, and to mount the STUFFING TUBE to a continuous structure (bulkhead or deck). The adapter may be recessed on the face to accommodate a gasket and/or washer.
Part Alternates: M24758-15 D B, M2475815DB, 5975-01-584-9663, 01-584-9663, 5975015849663, 015849663
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 MAY 2010 | 01-584-9663 | 05826 ( ADAPTER, STUFFING TUBE ) |

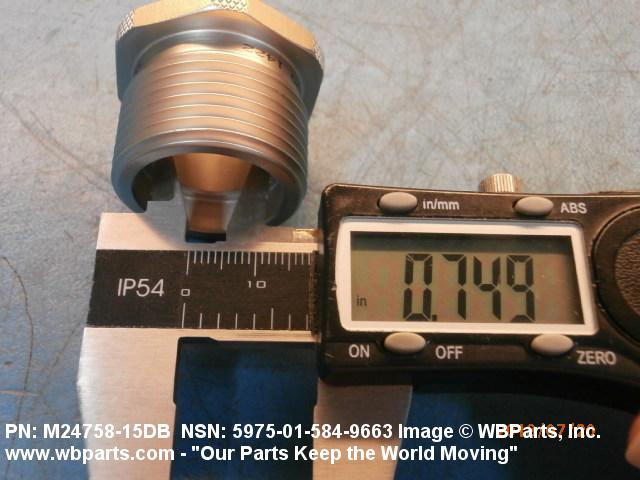

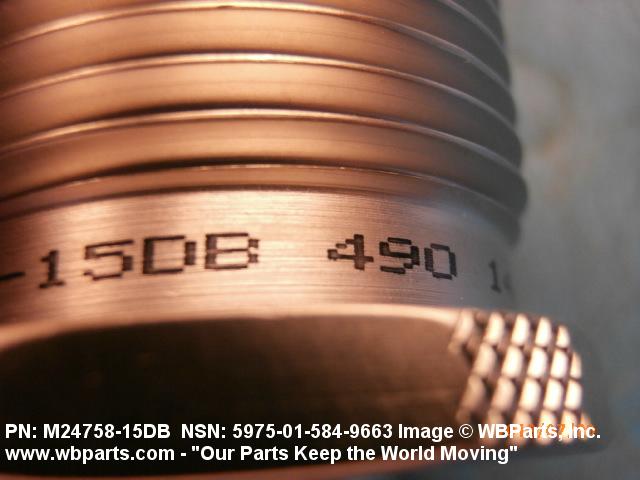

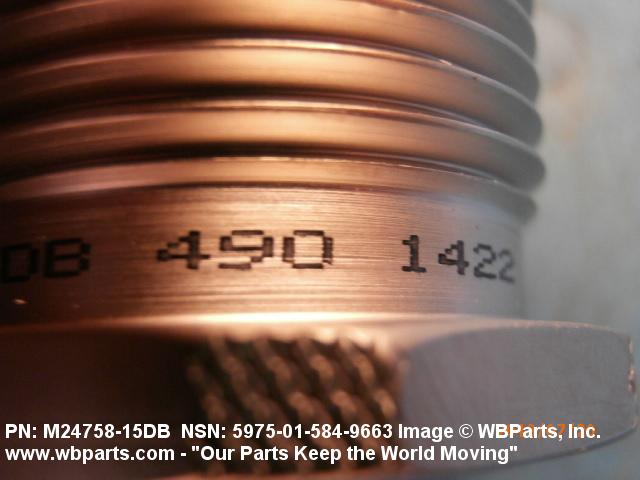

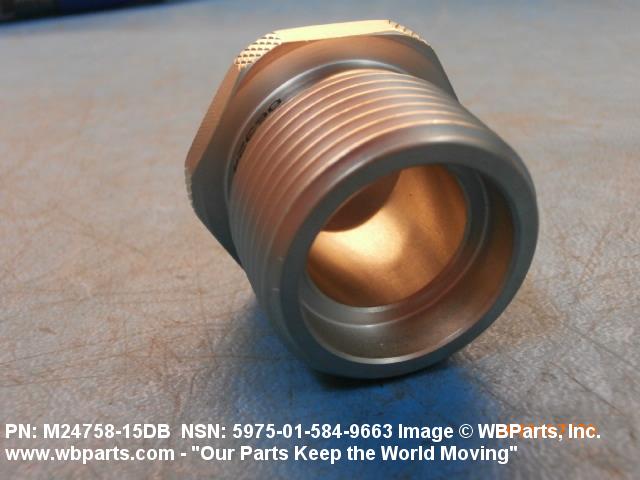

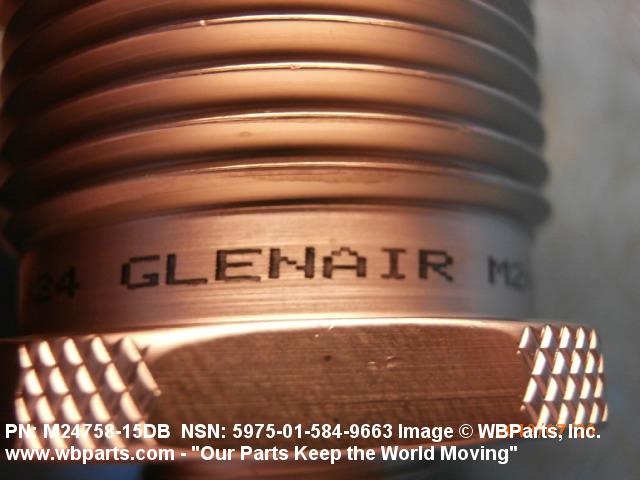

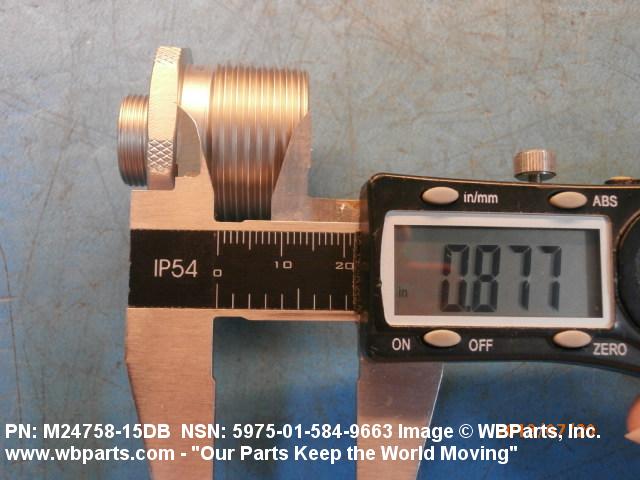

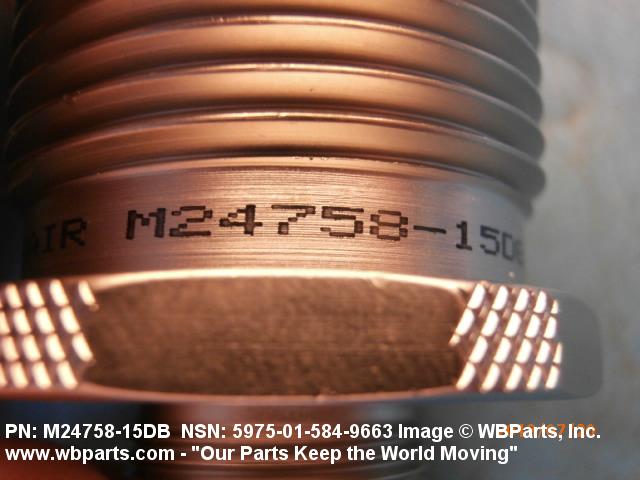

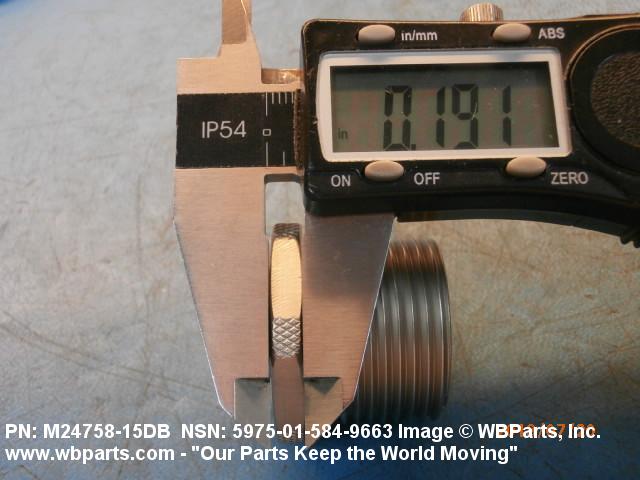

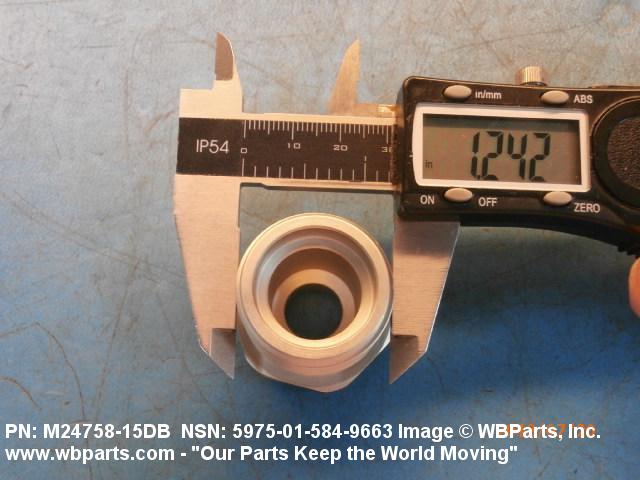

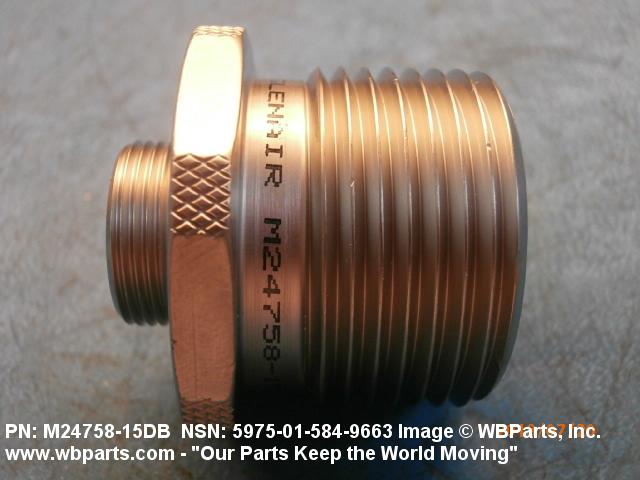

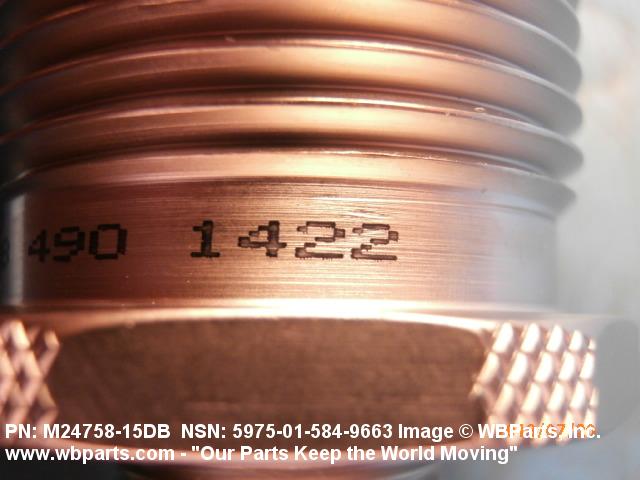

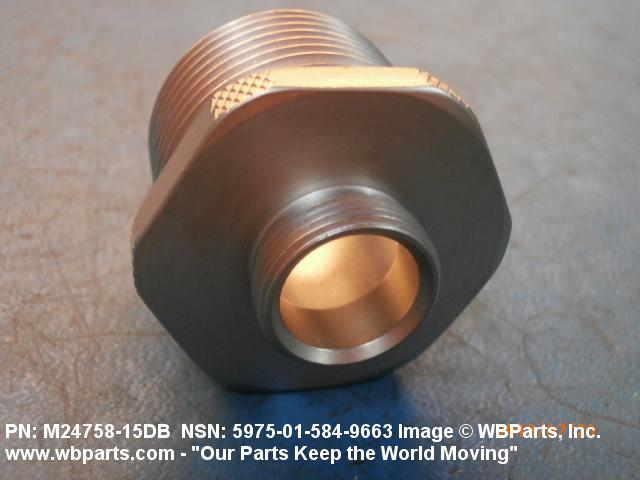

Drawings & Photos | NSN 5975-01-584-9663
Demand History | NSN 5975-01-584-9663
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-01-584-9663 | 2018-07-192 | 1 | United States |
Cross Reference | NSN 5975-01-584-9663
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M24758-15 D B | 06324 | GLENAIR, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-584-9663
Technical Data | NSN 5975-01-584-9663
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| COUNTERBORE DIAMETER | 0.750 INCHES NOMINAL |
| THICKNESS | 0.188 INCHES NOMINAL |
| SPECIAL FEATURES | COUPLES MIL-S-24235/9 THROUGH MIL-S-24235/17 SIZE D STUFFING TUBES TO M24758-2,M24758-3 OR M24758-4 SIZE B SERIES CONDUIT FITTINGS |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| NOMINAL THREAD SIZE | 1.000 INCHES |
| THREAD SERIES DESIGNATOR | UN |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | ADAPTER FOR MIL-S-24235 STUFFING TUBE |
| THREAD CLASS | 2A |
| STYLE DESIGNATOR | FLANGED-W/COUNTERBORE |
| THREAD LENGTH | 1.000 INCHES NOMINAL |
| SURFACE TREATMENT | NICKEL OVERALL |
| OVERALL OUTSIDE DIAMETER | 1.750 INCHES NOMINAL |

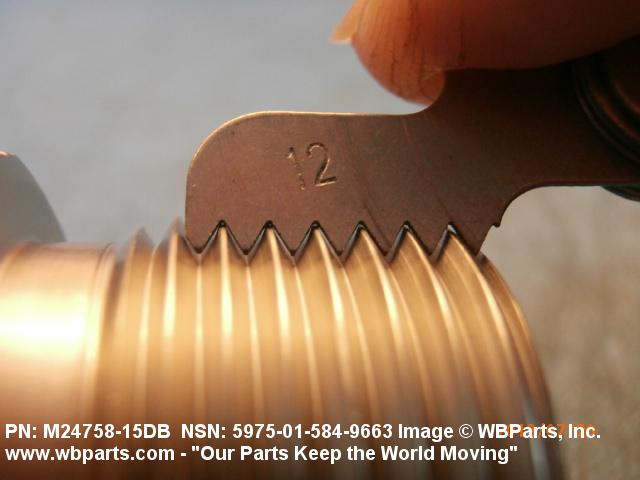

| THREAD QUANTITY PER INCH | 12 |
Restrictions/Controls & Freight Information | NSN 5975-01-584-9663
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
