NSN 5975-01-531-7319 70005805A, 700-058-05-A, 01-531-7319
Product Details | ELECTRICAL EQUIPMENT DRAWER
5975-01-531-7319 An item designed to slide in and out of a CABINET, ELECTRICAL EQUIPMENT or RACK, ELECTRICAL EQUIPMENT and used to mount and/or store electrical/electronic equipment. It does not include the electrical/electronic equipment, but may include wires, cables, terminal boards, connectors, etc.
Part Alternates: 70005805A, 700-058-05-A, 5975-01-531-7319, 01-531-7319, 5975015317319, 015317319
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JUL 2005 | 01-531-7319 | 29922 ( DRAWER, ELECTRICAL EQUIPMENT ) |
Drawings & Photos | NSN 5975-01-531-7319
Demand History | NSN 5975-01-531-7319
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 700-058-05-A | 2023-10-300 | 1 | DIBBS |
| 700-058-05-A | 2023-10-274 | 1 | DIBBS |
| 700-058-05-A | 2023-04-117 | 1 | DIBBS |
| 700-058-05-A | 2023-02-51 | 2 | DIBBS |
| 5975-01-531-7319 | 2010-09-266 | 2 | DIBBS |
Cross Reference | NSN 5975-01-531-7319
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 700-058-05-A | 1JA77 | GENERAL DIGITAL CORPORATION DBA GENERAL DIGITAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-01-531-7319
Related Products | NSN 5975-01-531-7319
Technical Data | NSN 5975-01-531-7319
| Characteristic | Specifications |
|---|---|

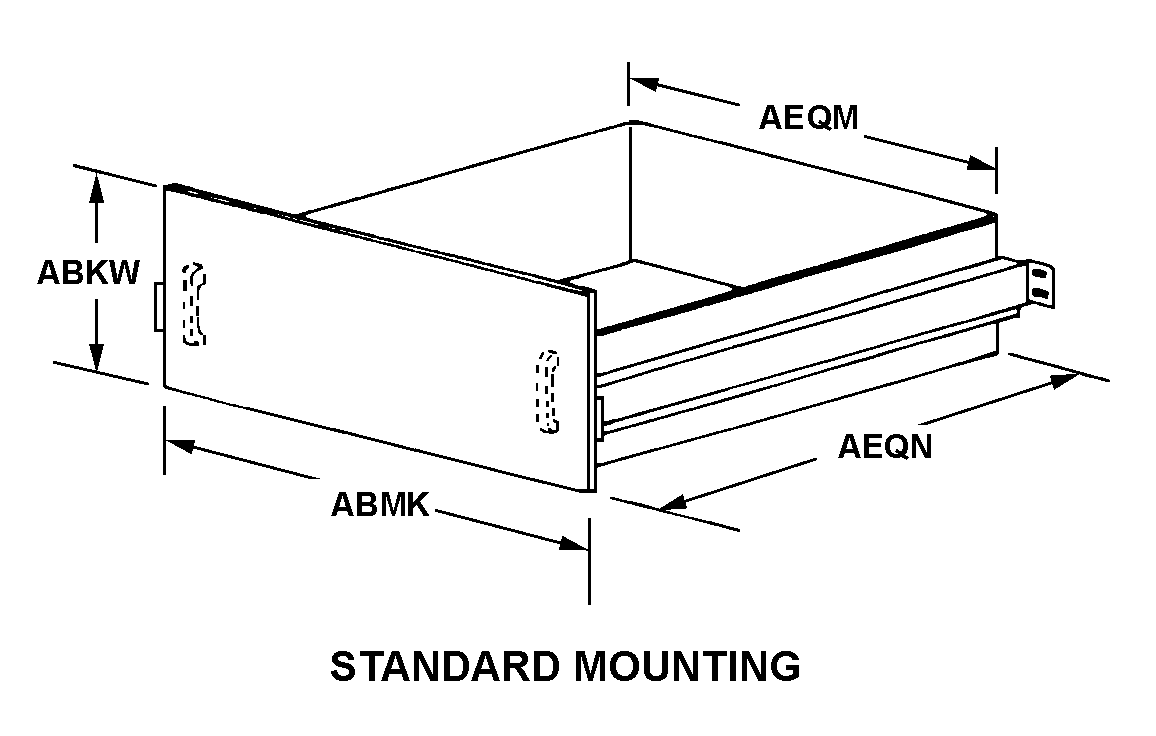

| STYLE DESIGNATOR | D1 STANDARD MOUNTING |
| OVERALL HEIGHT | 3.440 INCHES NOMINAL |
| OVERALL WIDTH | 19.000 INCHES NOMINAL |
| DRAWER INSIDE WIDTH | 18.310 INCHES NOMINAL |
| DRAWER INSIDE DEPTH | 3.000 INCHES NOMINAL |
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | CLEAR IRIDITE AND BLACK MATTE POWDER COAT |
| COLOR | BLACK |
| MOUNTING PROVISION | SUPPORT RAILS |
| MOUNTING FACILITY QUANTITY | 2 |
| SLIDE MECHANISM TYPE | RAIL |
| SPECIAL FEATURES | FRONT PANEL FLIPS DOWN TO PERMIT THE KEYBOAD VIDEO MONITOR TO SLIDE FORWARD FOR USE - EXTENSION IS 16.000 INCHES; SINGLE C-SHAPED HANDLE ON DRAWER EXTENDS 1.120 INCHES; POWER SUPPLY AND KEYBOARD VIDEO MONITOR SOLD SEPARATELY |
| III SUPPLEMENTARY FEATURES | KIT INCLUDES RACK MOUNT SLEVE, ADJUSTABLE MOUNTING BRACKETS (18 - 28 IN. DEPTH), MOUNTING HARDWARE, HINGED FRONT PANEL |
| III END ITEM IDENTIFICATION | MOBILE; CA-135/USR KEYBOARD VIDEO MONITOR, UNIT 12 GBS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SLIMLINE LITE II - 15 INCH SERIES, 19 INCH RACK MOUNT ADAPTER KIT |
Restrictions/Controls & Freight Information | NSN 5975-01-531-7319
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 050965 | CONDUITS MECHANICAL CONTROL CABLE |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-531-7319
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
