NSN 5975-01-526-9885 17G5515513, 17G551551-3, 01-526-9885
Product Details | ELECTRICAL-ELECTRONIC EQUIPMENT CHASSIS
5975-01-526-9885 A box, frame, or plate fabricated of electrically conductive material designed to mount, but which does not include, electronic components and their associated circuitry. It may have facilities for attachment to a rack or cabinet or to accommodate specially designed components. It may include a shielding function, integral wiring, and mounting hardware as part of the item. Excludes MOUNTING BASE, ELECTRICAL EQUIPMENT.
Part Alternates: 17G5515513, 17G551551-3, 5975-01-526-9885, 01-526-9885, 5975015269885, 015269885
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 JAN 2005 | 01-526-9885 | 38671 ( CHASSIS, ELECTRICAL-ELECTRONIC EQUIPMENT ) |
Drawings & Photos | NSN 5975-01-526-9885
Cross Reference | NSN 5975-01-526-9885
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17G551551-3 | 88277 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-526-9885
Technical Data | NSN 5975-01-526-9885
| Characteristic | Specifications |
|---|---|

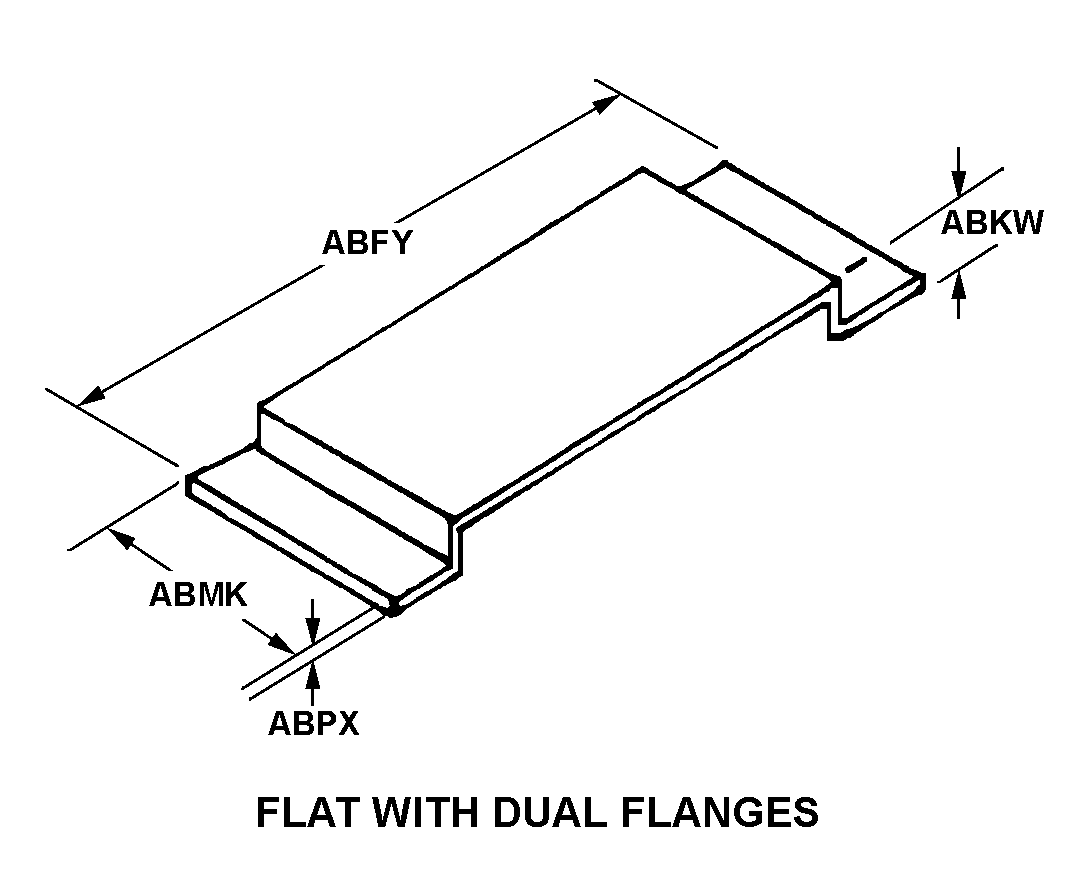

| STYLE DESIGNATOR | C8 FLAT WITH DUAL FLANGES |
| OVERALL DEPTH | 17.880 INCHES NOMINAL |
| OVERALL HEIGHT | 5.000 INCHES NOMINAL |
| OVERALL WIDTH | 15.250 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.190 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 6061 |
| DESIGN FEATURE | PUNCHED HOLES |
| MOUNTING HOLE QUANTITY | 4 |
| SPECIAL FEATURES | BARE CHASSIS BASE CONTAINING 16 CLINCH NUTS |
| III END ITEM IDENTIFICATION | C17 SUPPORT EQUIPMENT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CHASSIS,ELECTRICAL |
Restrictions/Controls & Freight Information | NSN 5975-01-526-9885
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5975-01-526-9885
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
