NSN 5975-01-526-6566 BS-7941-3/8, BS794138, 266TB
Product Details | ELECTRICAL BOX CONNECTOR
5975-01-526-6566 An item designed to mechanically connect in a straight line or an angle electrical conduit, conduit assemblies, wire, wireway, cable, or cable assemblies to a point of termination, such as a junction box, conduit outlet, or the like. The termination end must have an external thread with a boss or shoulder and may be furnished with a locknut or bondnut; or, must have internal thread with which is furnished an externally threaded hub with a wrenching feature; or be of a snap-in type that may be installed from either inside or outside the box and secured with a captive screw. It is not intended to join conduit to conduit. For angle type items having a male thread without a boss or shoulder, see ELBOW, ELECTRICAL CONDUIT. Does not include facilities to mount wiring devices. Excludes CHASE NIPPLE, CONDUIT.
Part Alternates: BS-7941-3/8, BS794138, 266TB, 266-TB, 5975-01-526-6566, 01-526-6566, 5975015266566, 015266566
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 DEC 2004 | 01-526-6566 | 09663 ( BOX CONNECTOR, ELECTRICAL ) |

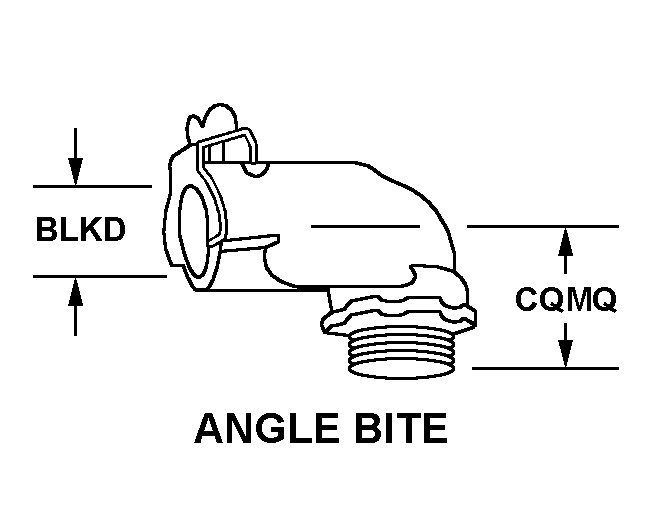

Drawings & Photos | NSN 5975-01-526-6566
Demand History | NSN 5975-01-526-6566
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 266-TB | 2020-03-19 | 223 | DIBBS |
| BS-7941-3/8 | 2020-03-19 | 223 | DIBBS |
| 5975-01-526-6566 | 2012-06-15 | 25 | DIBBS |
| 5975-01-526-6566 | 2012-06-15 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-526-6566
Technical Data | NSN 5975-01-526-6566
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A56 ANGLE BITE |
| LEG END TO PLANE OF BEND DISTANCE | 0.906 INCHES NOMINAL SECOND END |
| CABLE DIAMETER ACCOMMODATED | 0.438 INCHES MINIMUM AND 0.688 INCHES MAXIMUM FIRST END |
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| NOMINAL THREAD SIZE | 0.500 INCHES SINGLE END |
| THREAD QUANTITY | 14 PER INCH SINGLE END |
| THREAD CLASS | 2A SINGLE END |
| THREAD DIRECTION | RIGHT-HAND SINGLE END |
| CONDUIT TYPE ACCOMMODATED | FLEXIBLE METALLIC FIRST END |
| END TYPE | TWO SCREW CLAMP, END CONNECTED FIRST END EXTERNAL THREAD SECOND END |
| FURNISHED ITEMS | SCREW |
Restrictions/Controls & Freight Information | NSN 5975-01-526-6566
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062265 | HOUSINGS/ENCLOSURES O/T HOUSES SUB2 |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-526-6566
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
