NSN 5975-01-526-3151 DS4500, 01-526-3151, 015263151
Product Details | ELECTRICAL EQUIPMENT CABINET
5975-01-526-3151 An enclosure generally fabricated of sheet material designed to accommodate (but does not include) electrical/electronic equipment so that the equipment may be operated without removal. It may include wires, cables, terminal boards, connectors, etc., required for equipment operation. For items designed to accommodate equipment mounted on panels, see RACK, ELECTRICAL EQUIPMENT. See also CASE (2) (as modified). Excludes INTERCONNECTING BOX; INTERCONNECTING CABINET; JUNCTION BOX; and TERMINAL BOX.
Part Alternates: DS4500, 5975-01-526-3151, 01-526-3151, 5975015263151, 015263151
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 DEC 2004 | 01-526-3151 | 06352 ( CABINET, ELECTRICAL EQUIPMENT ) |
Drawings & Photos | NSN 5975-01-526-3151
Cross Reference | NSN 5975-01-526-3151
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DS4500 | 30874 | INTERNATIONAL BUSINESS MACHINES CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-526-3151
Technical Data | NSN 5975-01-526-3151
| Characteristic | Specifications |
|---|---|

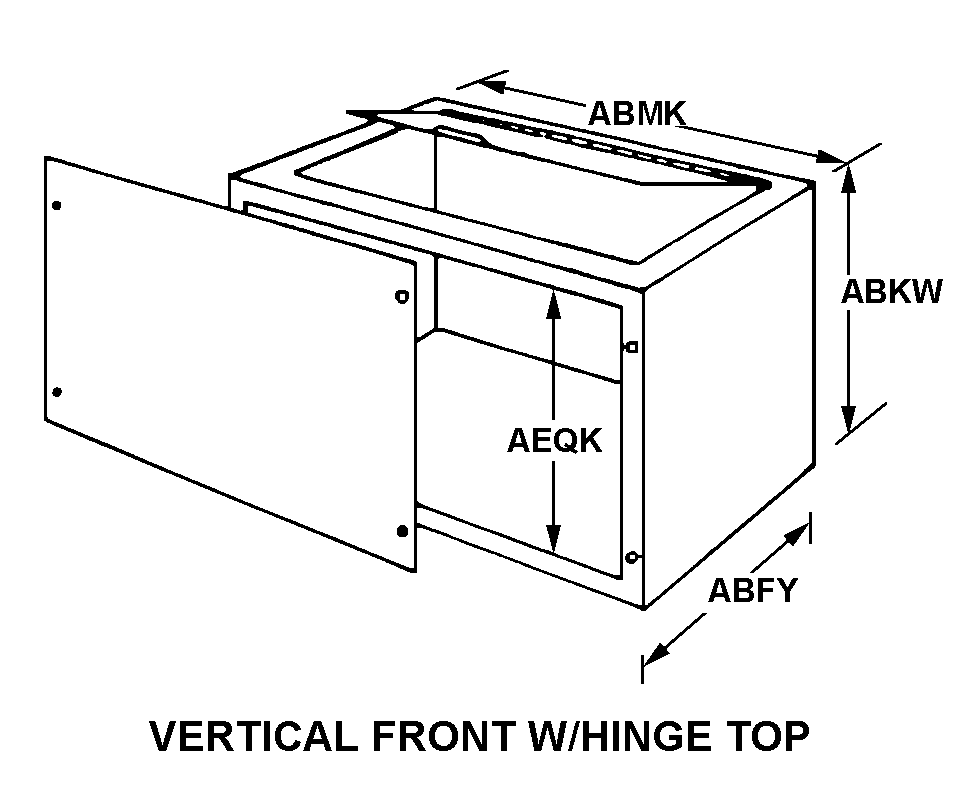

| STYLE DESIGNATOR | B18 VERTICAL FRONT W/HINGE TOP |
| OVERALL DEPTH | 174.5 MILLIMETERS NOMINAL |
| OVERALL HEIGHT | 482.0 MILLIMETERS NOMINAL |
| OVERALL WIDTH | 635.0 MILLIMETERS NOMINAL |
| COVER ATTACHMENT METHOD | HINGE |
| VENTILATION DESIGN TYPE | DUCT |
Restrictions/Controls & Freight Information | NSN 5975-01-526-3151
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
