NSN 5975-01-504-5328 8163366, 816-3366, 8163366001
Product Details | ELECTRICAL CONDUIT BUSHING
5975-01-504-5328 An item of metal and/or insulating material having internal threads designed to fit over the end of electrical conduit and/or fittings to provide a smooth interior with a rounded edge to prevent damage to the insulation of the wire or cable emerging therefrom. It may be designed to fit over the end of thin wall conduit, and to be fitted with holding (staking) screws, or it may be provided with internal straight threads for attaching to thick wall electrical conduit or fittings. It may be fitted with a temporary knockout cap (bushcap), and grounding or bonding facilities. For externally threaded items, see BOX CONNECTOR, ELECTRICAL; BUSHING, ELECTRICAL CONDUCTOR; CHASE NIPPLE, CONDUIT and BUSHING, STRAIN RELIEF, CABLE. See also FERRULE, ELECTRICAL CONDUIT. Excludes plain sleeve bushings.
Part Alternates: 8163366, 816-3366, 8163366001, 816-3366-001, 5975-01-504-5328, 01-504-5328, 5975015045328, 015045328
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 JAN 2003 | 01-504-5328 | 06940 ( BUSHING, ELECTRICAL CONDUIT ) |

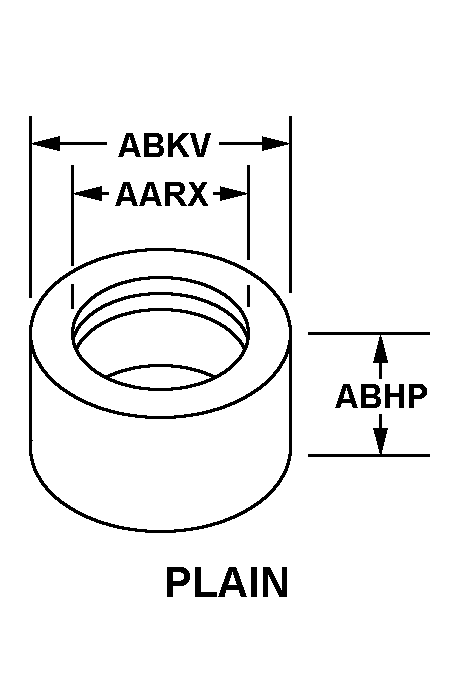

Drawings & Photos | NSN 5975-01-504-5328
Demand History | NSN 5975-01-504-5328
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-01-504-5328 | 2013-03-27 | 48 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-504-5328
Technical Data | NSN 5975-01-504-5328
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A27 PLAIN |
| OVERALL LENGTH | 1.130 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.800 INCHES NOMINAL FIRST END 0.490 INCHES NOMINAL SECOND END 0.800 INCHES NOMINAL SINGLE END |
| ITEM ACCOMMODATED TRADE SIZE | 0.640 INCHES FIRST END 0.257 INCHES SECOND END |
| MATERIAL | STEEL |
| CONDUIT TYPE ACCOMMODATED | ANY ACCEPTABLE SINGLE END |
| SPECIAL FEATURES | BUSHING CONNECTOR (HIGH VOLTAGE) |
Restrictions/Controls & Freight Information | NSN 5975-01-504-5328
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062010 | FITTINGS CONDUIT NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-504-5328
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
