NSN 5975-01-500-4277 PLC2SS108, PLC2S-S10-8, TY35M8
Product Details | ELECTRICAL COMPONENTS TIEDOWN STRAP
5975-01-500-4277 A preformed item of flexible or semiflexible material of various cross-sectional shapes. It may be tapered to a point at one or both ends, or provided with holes, slots, detents, or other locking devices. It is designed to surround wiring harnesses and other electrical/electronic components. It may be preprinted with legendary characters, symbol(s), letter(s), numeral(s), or color coded, and may be provided with means for securing to other objects. Excludes BAND, MARKER; CLAMP, ELECTRICAL; CLAMP, LOOP; MARKER, IDENTIFICATION; and STRAP, RETAINING.
Part Alternates: PLC2SS108, PLC2S-S10-8, TY35M8, TY-35M-8, 6400188105, 6400188-105, 5975-01-500-4277, 01-500-4277, 5975015004277, 015004277
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 26 AUG 2002 | 01-500-4277 | 61736 ( STRAP, TIEDOWN, ELECTRICAL COMPONENTS ) |
Demand History | NSN 5975-01-500-4277
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5975-01-500-4277 | 2018-11-310 | 848 | DIBBS |
5975-01-500-4277 | 2015-11-308 | 618 | DIBBS |
5975-01-500-4277 | 2015-03-76 | 311 | DIBBS |
5975-01-500-4277 | 2014-02-41 | 266 | DIBBS |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5975-01-500-4277
Technical Data | NSN 5975-01-500-4277
Characteristic | Specifications |
---|---|
MATERIAL | POLYAMIDE NYLON |
LENGTH | 8.100 INCHES NOMINAL |
WIDTH | 0.190 INCHES NOMINAL |
THICKNESS | 0.040 INCHES NOMINAL |
COLOR | GRAY |
END TYPE | W/ATTACHMENT PLAIN |
END ATTACHMENT/FASTENING FACILITY | LOOP W/EYELET BARB |

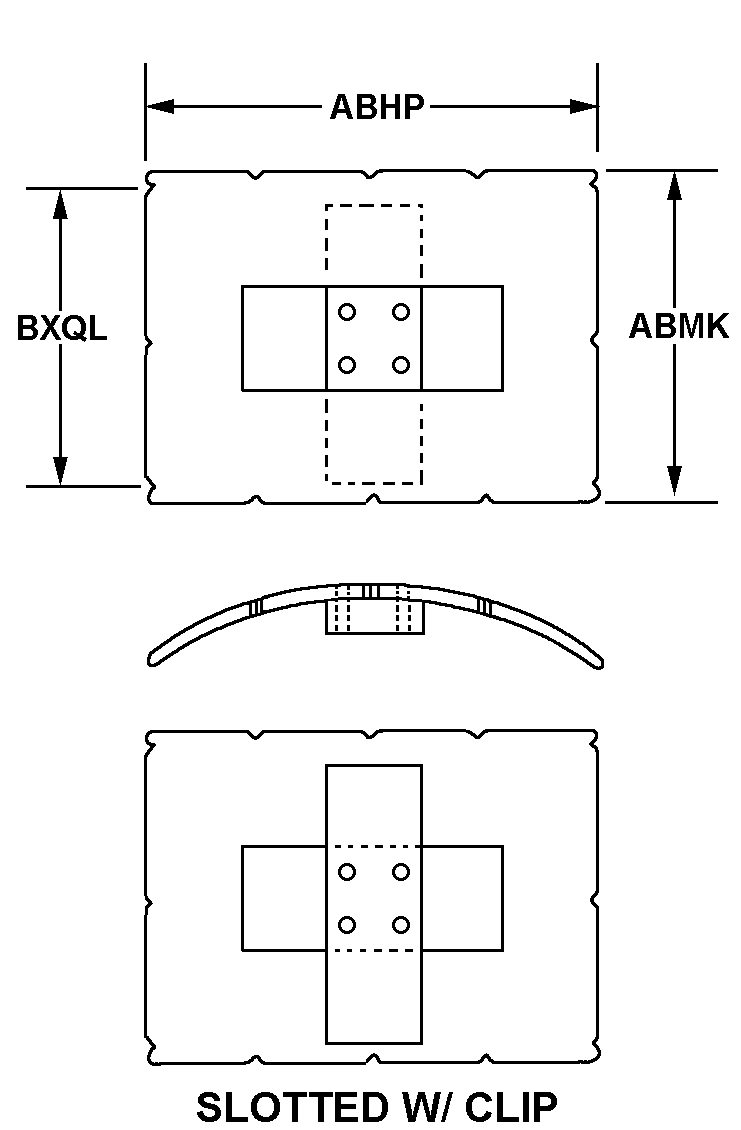

BUCKLE STYLE DESIGNATOR | B52 SLOTTED WITH CLIP |
BUCKLE MATERIAL | STEEL, QQ-S-766 |
BUCKLE SURFACE TREATMENT | STEEL, STAINLESS |
BUCKLE LOCATION | ONE END |
FASTENED BUCKLE FEATURE | NOT INCLUDED |
BUCKLE TONGUE HOLE LOCATION AND QUANTITY | ONE HOLE ONE END |
DISTANCE FROM STRAP END TO FIRST HOLE | 7.700 INCHES NOMINAL |
END CLIP MATERIAL | POLYAMIDE NYLON |
END CLIP QUANTITY | 1 |
Restrictions/Controls & Freight Information | NSN 5975-01-500-4277
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 157170 | PLASTIC/RUBR STRAPS/ROPE/CORD/STRIP |
Less than car load rating | ||
Less than truck load rating | Q | 70.0 |
Water commodity Code | 72D | unknown |
Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-500-4277
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
