NSN 5975-01-499-5476 EDC02PNH, EDC-02P-NH, 01-499-5476
Product Details | JUNCTION BOX
5975-01-499-5476 An enclosure of other than cast metal designed to house, mount, and protect, but does not include wiring connections or electrical device(s) such as terminals and/or terminal boards, switches, jacks, fuseholders, connectors, circuit breakers and the like. It is designed for and may include a cover and such accessories as mounting hardware, brackets, locks, clamps, mounts and conduit fittings. Excludes CONDUIT OUTLET; and CHAMBER, CABLE TERMINAL. For boxes which include electrical device(s) such as terminals and/or terminal boards, switches, fuseholders, jacks, connectors, circuit breakers and the like, or combinations thereof, see SWITCH BOX; FUZE BOX; JACK BOX; TERMINAL BOX; CIRCUIT BREAKER BOX; and DISTRIBUTION BOX. For boxes wired to provide the interconnecting facilities for a specific major group of electronic items outside of the box, see INTERCONNECTING BOX. See also INTERCONNECTING CABINET.
Part Alternates: EDC02PNH, EDC-02P-NH, 5975-01-499-5476, 01-499-5476, 5975014995476, 014995476
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 JUL 2002 | 01-499-5476 | 06219 ( JUNCTION BOX ) |
Drawings & Photos | NSN 5975-01-499-5476
Cross Reference | NSN 5975-01-499-5476
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EDC-02P-NH | 61092 | CORNING OPTICAL COMMUNICATIONS LLC DBA CORNING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-499-5476
Technical Data | NSN 5975-01-499-5476
| Characteristic | Specifications |
|---|---|

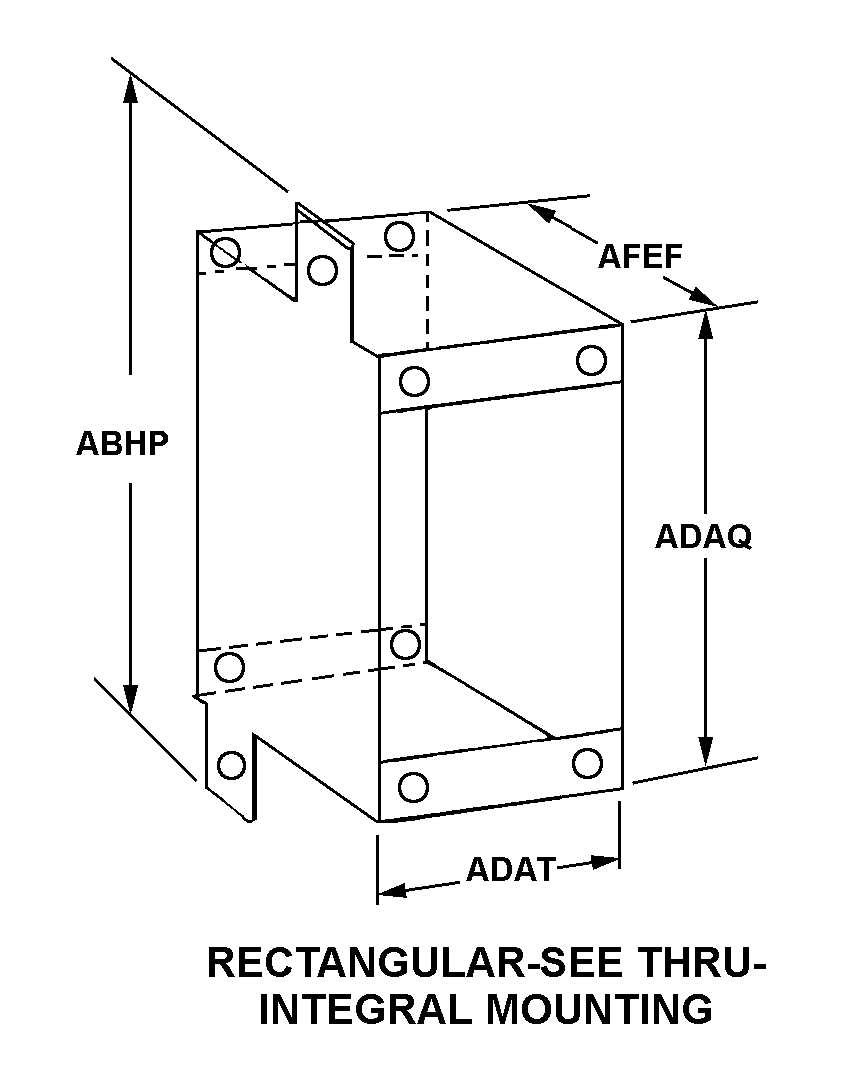

| STYLE DESIGNATOR | C7 RECTANGULAR-SEE THRU-INTEGRAL MOUNTING |
| OVERALL LENGTH | 12.500 MILLIMETERS NOMINAL |
| BODY WIDTH | 10.500 MILLIMETERS NOMINAL |
| INSIDE DEPTH | 6.250 MILLIMETERS NOMINAL |
| COVER ATTACHMENT METHOD | SCREW |
| SPECIAL FEATURES | ACCEPTS 2 CCH PANELS;12 FIBER TOTAL CAPACITY;WILL ACCEPT 2 SIECOR 0.2 INCH THICK REDUCED LENGTH SPLICE TRAYS |
| III PACKAGED UNIT WEIGHT | 4.530 KILOGRAMS |
Restrictions/Controls & Freight Information | NSN 5975-01-499-5476
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
