NSN 5975-01-475-5409 E24001A000000, E24001A-000000, MILT81914
Product Details | FLEXIBLE METAL CONDUIT
5975-01-475-5409 A conduit constructed of circular flexible metal tubing. It may be shielded with a woven metal wire braid covering, with a packing between the joints, and it may have a rubber and/or synthetic rubber or plastic outer protective covering. It contains no fittings. See also CONDUIT, METAL, RIGID. Excludes conduit like items that are designed for other than electrical applications.
Part Alternates: E24001A000000, E24001A-000000, MILT81914, MIL-T-81914, 5975-01-475-5409, 01-475-5409, 5975014755409, 014755409
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 JUN 2000 | 01-475-5409 | 18706 ( CONDUIT, METAL, FLEXIBLE ) |

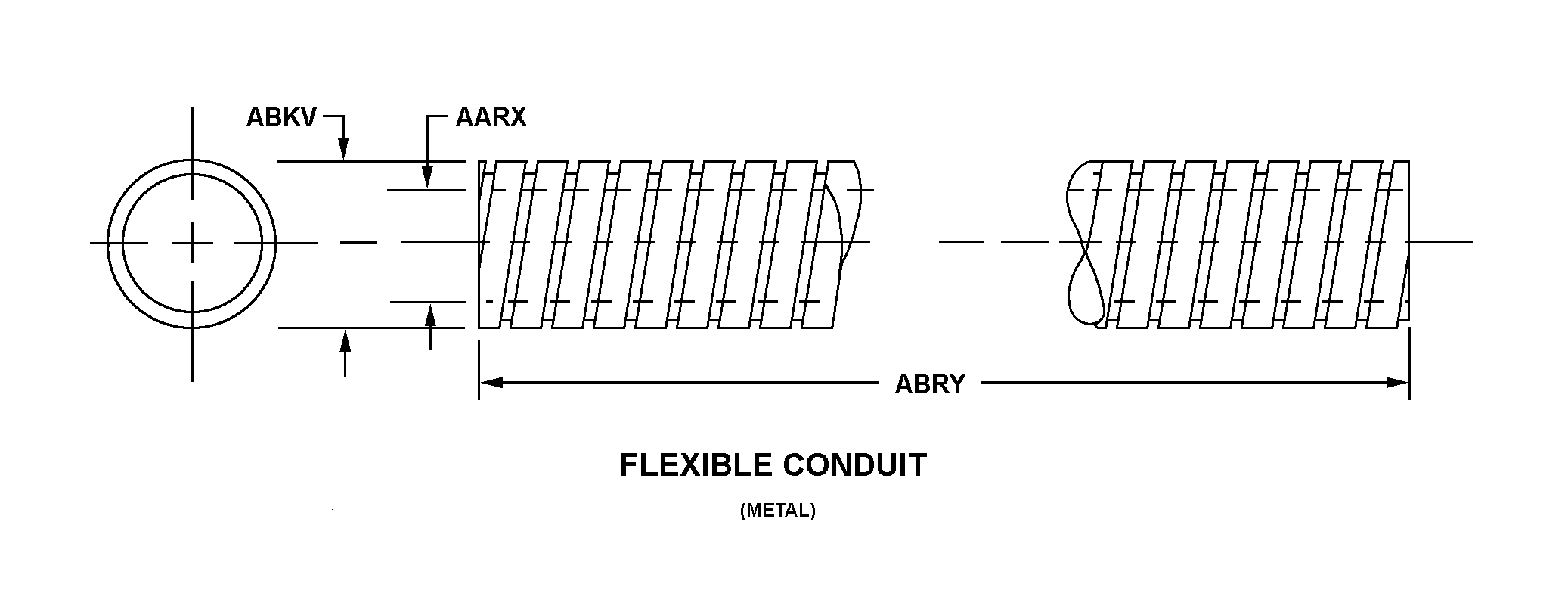

Drawings & Photos | NSN 5975-01-475-5409
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-475-5409
Technical Data | NSN 5975-01-475-5409
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B5 FLEXIBLE CONDUIT |
| INSIDE DIAMETER | 1.250 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.539 INCHES NOMINAL |
| LENGTH | 18.000 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MINIMUM INSIDE BENDING RADIUS | 1.250 INCHES |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-T-81914 |
Restrictions/Controls & Freight Information | NSN 5975-01-475-5409
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 050925 | CONDUIT ELECTRICAL FLEXIBLE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-475-5409
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
