NSN 5975-01-378-6040 LDF6247, LDF-6-247, 01-378-6040
Product Details | DUST AND MOISTURE SEAL BOOT
5975-01-378-6040 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.20253400020Hardware, Commercial59300008Switches
Part Alternates: LDF6247, LDF-6-247, 5975-01-378-6040, 01-378-6040, 5975013786040, 013786040
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 21 AUG 1993 | 01-378-6040 | 19302 ( BOOT, DUST AND MOISTURE SEAL ) |
Demand History | NSN 5975-01-378-6040
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5975-01-378-6040 | 2013-11-310 | 8 | DIBBS |
5975-01-378-6040 | 2013-10-287 | 2 | US |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5975-01-378-6040
Related Products | NSN 5975-01-378-6040
Technical Data | NSN 5975-01-378-6040
Characteristic | Specifications |
---|---|

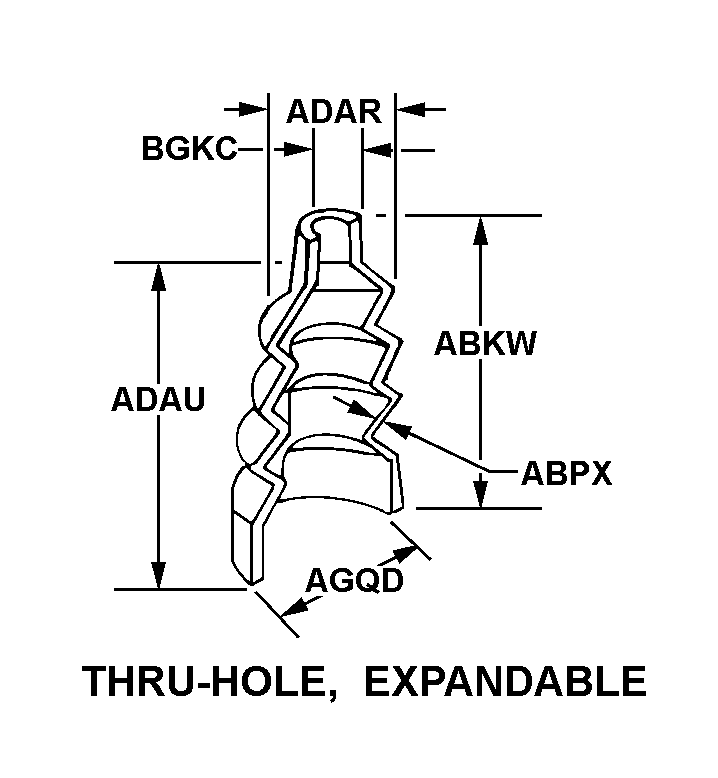

STYLE DESIGNATOR | A37 THRU-HOLE, EXPANDABLE |
OVERALL HEIGHT | 2.125 INCHES NOMINAL |
BASE OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
OPENING INSIDE DIAMETER | 0.375 INCHES NOMINAL |
MATERIAL | RUBBER SYNTHETIC-NATURAL BODY |
Restrictions/Controls & Freight Information | NSN 5975-01-378-6040
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 194090 | WASHERS/SEALS |
Less than car load rating | ||
Less than truck load rating | S | 60.0 |
Water commodity Code | 846 | unknown |
Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-378-6040
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
