NSN 5975-01-336-3057 5M43Q4TB21E22, 5M43Q4-TB21E22, 01-336-3057
Product Details | CABLE MARKER SLEEVE
5975-01-336-3057 A cylindrical item into which a wire or cable is inserted. It is inscribed for identification, to indicate connections or routing of electrical cables and the like. For unmarked items made of insulation material, see INSULATION SLEEVING, ELECTRICAL. For items secured by crimping, slot and tongue, or other similar methods of fastening, see BAND, MARKER.
Part Alternates: 5M43Q4TB21E22, 5M43Q4-TB21E22, 5975-01-336-3057, 01-336-3057, 5975013363057, 013363057
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 MAR 1991 | 01-336-3057 | 16785 ( SLEEVE, MARKER, CABLE ) |
Drawings & Photos | NSN 5975-01-336-3057
Cross Reference | NSN 5975-01-336-3057
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5M43Q4-TB21E22 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-01-336-3057
Related Products | NSN 5975-01-336-3057
Technical Data | NSN 5975-01-336-3057
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYOLEFIN |

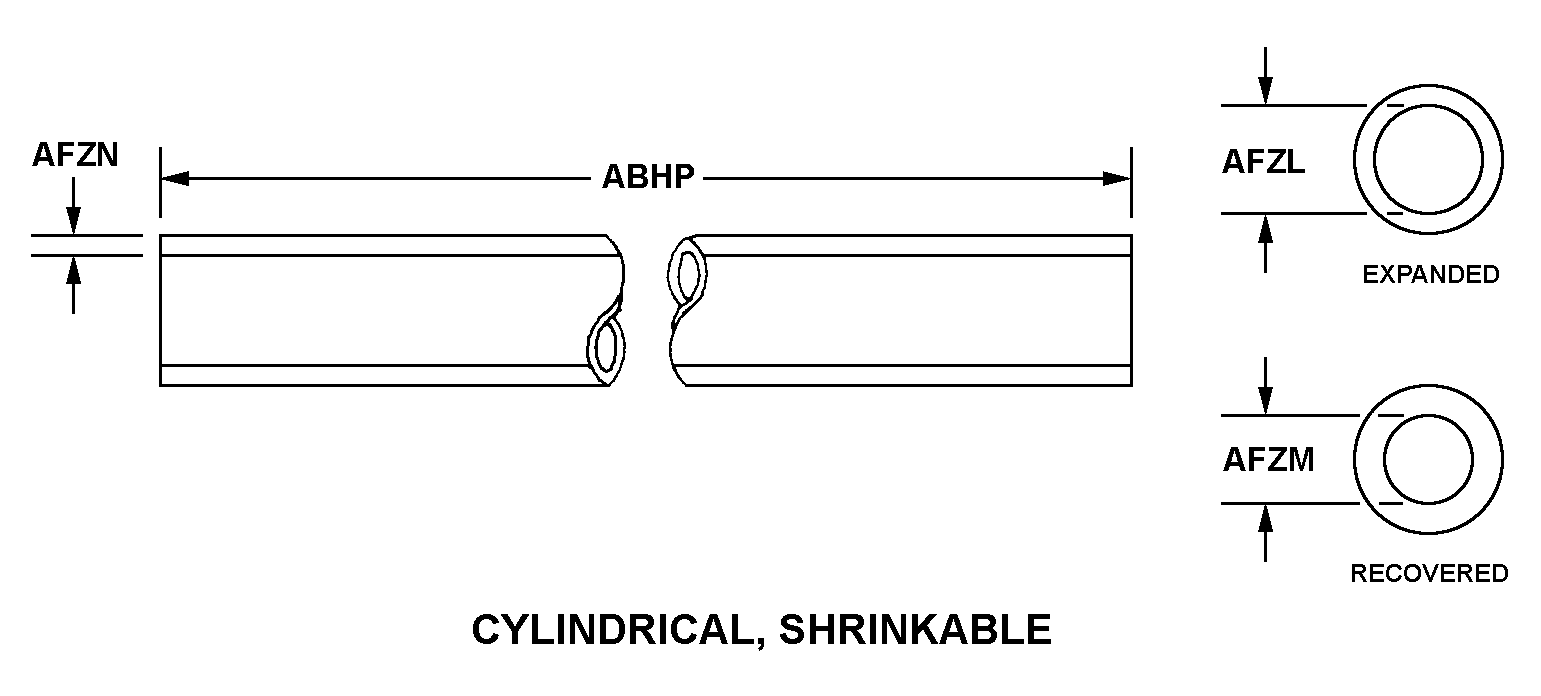

| STYLE DESIGNATOR | A3 CYLINDRICAL, SHRINKABLE |
| EXPANDED INSIDE DIAMETER | 0.093 INCHES NOMINAL |
| RECOVERED INSIDE DIAMETER | 0.046 INCHES NOMINAL |
| RECOVERED WALL THICKNESS | 0.001 INCHES NOMINAL |
| SPECIAL FEATURES | TEMPERATURE LIMITATIONS,MINUS 67 DEG.F. T0 +275 DEG.F.; MMS-809-9 FLEXIBLE IRRADIATED POLYOLEFIN SLEEVING; COLOR,WHITE |
| END ITEM IDENTIFICATION | F-15 ACFT |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 5M43Q4-TB21E22 |
Restrictions/Controls & Freight Information | NSN 5975-01-336-3057
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 020550 | BAGS/BOOTS/POUCHES/SLEEVES/TUBES |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-336-3057
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | FX | TG:F-15 EAGLE |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
