Product Details | ELECTRICAL EQUIPMENT RACK
5975-01-294-3156 An open or inclosed frame structure designed to accommodate (but does not include) electrical/electronic equipment mounted on standard width panels so that the equipment may be operated after installation without being removed. It must have panel mounting rails that provide a uniform pattern of mounting holes that will accommodate various combinations of standard width panels. It may include wires, cables, terminal boards, connectors, and the like, required for equipment operation. See also MOUNTING BASE, ELECTRICAL EQUIPMENT; CABINET, ELECTRICAL EQUIPMENT; and CASE (2) (as modified). Excludes MAIN DISTRIBUTING FRAME, TELEPHONE and INTERMEDIATE DISTRIBUTING FRAME, TELEPHONE.
Part Alternates: 86423693, 8642369-3, 5975-01-294-3156, 01-294-3156, 5975012943156, 012943156
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 FEB 1989 | 01-294-3156 | 06353 ( RACK, ELECTRICAL EQUIPMENT ) |
Drawings & Photos | NSN 5975-01-294-3156
Cross Reference | NSN 5975-01-294-3156
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8642369-3 | 98749 | SACRAMENTO AIR LOGISTICS CENTER SM-ALC/LIIL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-294-3156
Technical Data | NSN 5975-01-294-3156
| Characteristic | Specifications |
|---|---|

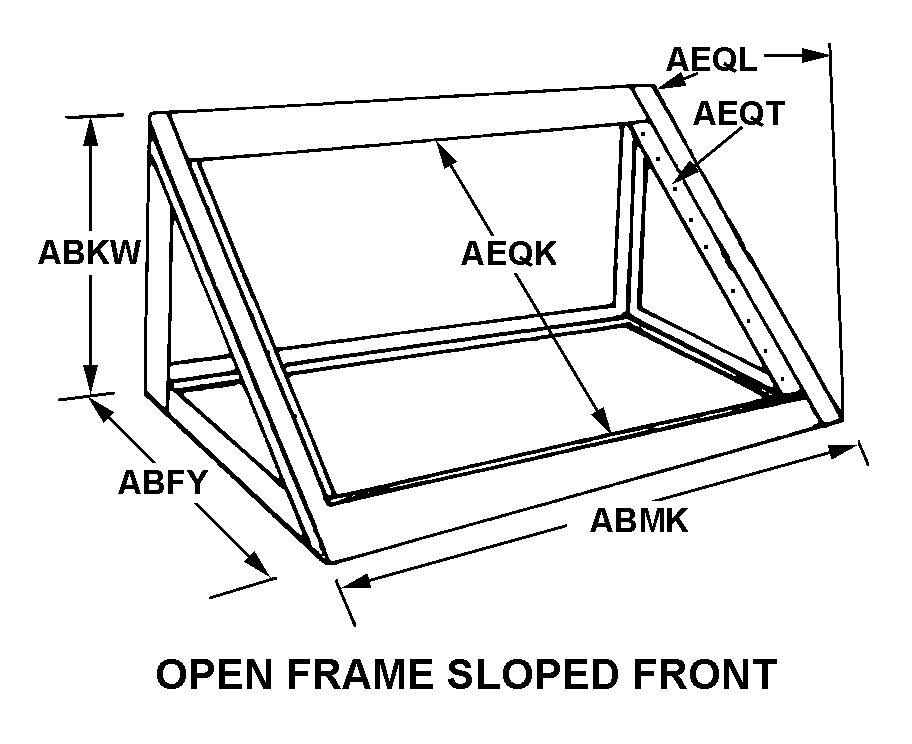

| STYLE DESIGNATOR | H10 OPEN FRAME SLOPED FRONT |
| OVERALL DEPTH | 18.250 INCHES NOMINAL |
| OVERALL HEIGHT | 16.500 INCHES MAXIMUM |
| OVERALL WIDTH | 15.380 INCHES NOMINAL |
| PANEL SPACE HEIGHT | 16.000 INCHES NOMINAL |
| PANEL SLOPE ANGLE IN DEG | 2.0 |
| PANEL RAIL THICKNESS | 0.060 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SPECIAL FEATURES | 25.0 KW |
| III END ITEM IDENTIFICATION | POWER DISTRIBUTION PANEL |
