NSN 5975-01-288-2851 REC42, 01-288-2851, 012882851
Product Details | ELECTRICAL CONDUIT ADAPTER
5975-01-288-2851 An item designed to couple or join two different types or sizes of conduits, and/or to be inserted in the opening of a conduit outlet or box to accommodate a conduit of a larger or smaller size; or it may be designed with internal thread on one end for mating with an electrical connector and an external thread on the other end for mating with a conduit coupling nut; or to establish necessary mechanical accommodations between an electrical conduit, conduit assembly and an electrical connector. Excludes REDUCING WASHER, KNOCKOUT and BOX CONNECTOR, ELECTRICAL. See also ADAPTER, CABLE TO CONNECTOR; and CHASE NIPPLE, CONDUIT.
Part Alternates: REC42, 5975-01-288-2851, 01-288-2851, 5975012882851, 012882851
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 NOV 1988 | 01-288-2851 | 06935 ( ADAPTER, ELECTRICAL CONDUIT ) |
Drawings & Photos | NSN 5975-01-288-2851
Cross Reference | NSN 5975-01-288-2851
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| REC42 | 15235 | CROUSE-HINDS CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-288-2851
Technical Data | NSN 5975-01-288-2851
| Characteristic | Specifications |
|---|---|

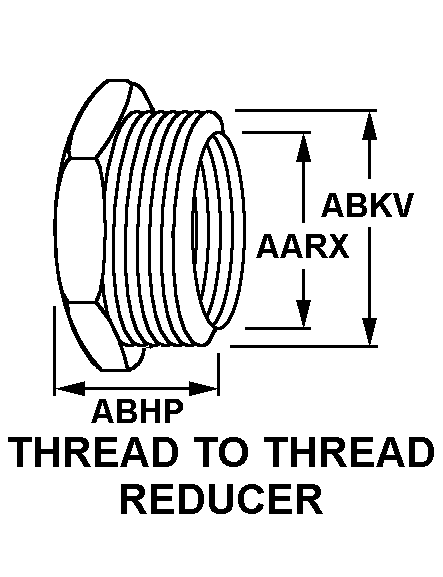

| STYLE DESIGNATOR | A3 THREAD TO THREAD REDUCER |
| MATERIAL | IRON ALLOY |
| SURFACE TREATMENT | LACQUER ALUMINUM CELLULOSE AND ZINC |
| END TYPE | INTERNAL THREAD FIRST END INTERNAL THREAD SECOND END |
| III SUPPLEMENTARY FEATURES | END ITEM 4920-01-144-8404 TEST STAND |
Restrictions/Controls & Freight Information | NSN 5975-01-288-2851
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062010 | FITTINGS CONDUIT NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-288-2851
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
