NSN 5975-01-182-5792 10-33585-01, 10-34114-01, 01-182-5792
Product Details | ELECTRICAL CONDUIT FERRULE-NUT COUPLING
5975-01-182-5792 An item consisting of a FERRULE, ELECTRICAL CONDUIT upon which is permanently mounted a NUT, COUPLING, ELECTRICAL CONDUIT. It is designed to be attached to an electrical conduit and used to mechanically connect the conduit to another conduit fitting such as a box connector. Excludes BOX CONNECTOR, ELECTRICAL; ADAPTER, ELECTRICAL CONDUIT; and COUPLING, ELECTRICAL CONDUIT.
Part Alternates: 10-33585-01, 10-34114-01, 5975-01-182-5792, 01-182-5792, 5975011825792, 011825792, 103358501, 103411401
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 JUN 1984 | 01-182-5792 | 17229 ( FERRULE-NUT COUPLING, ELECTRICAL CONDUIT ) |

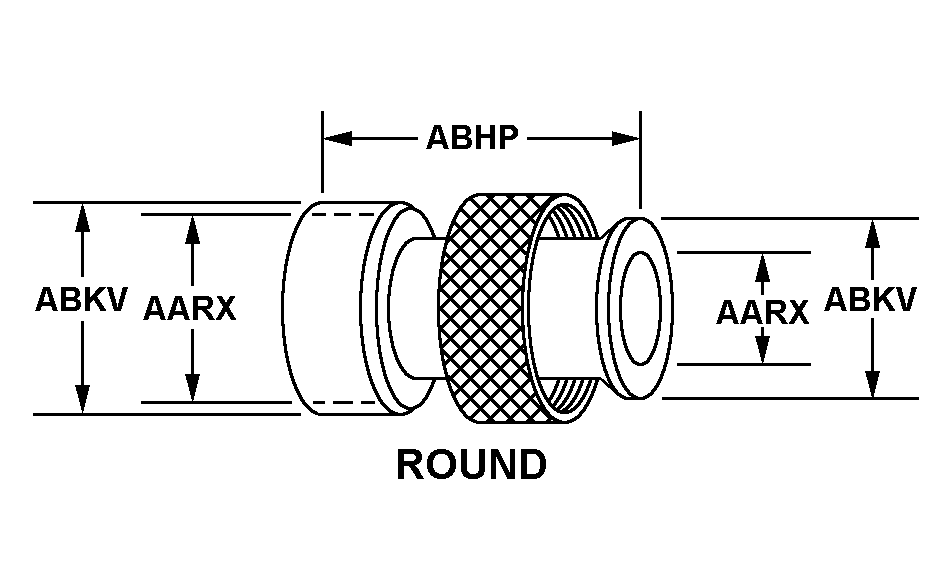

Drawings & Photos | NSN 5975-01-182-5792
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-182-5792
Technical Data | NSN 5975-01-182-5792
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A46 ROUND |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.710 INCHES NOMINAL FIRST END 0.525 INCHES NOMINAL SECOND END |
| MATERIAL | ALUMINUM ALLOY 2024 |
| THREAD SERIES DESIGNATOR | UN SINGLE END |
| THREAD QUANTITY | 32 PER INCH SINGLE END |
| THREAD CLASS | 3A SINGLE END |
| THREAD LENGTH | 0.266 INCHES NOMINAL SINGLE END |
| END TYPE | SHOULDERED FERRULE W/ROUND NUT SINGLE END |
| MANUFACTURERS CODE | 09691 |
| DESIGN CONTROL REFERENCE | 10-33585-01 |
Restrictions/Controls & Freight Information | NSN 5975-01-182-5792
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5975-01-182-5792
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | WF | SU:F-16 AIR COMBAT FIGHTER |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
